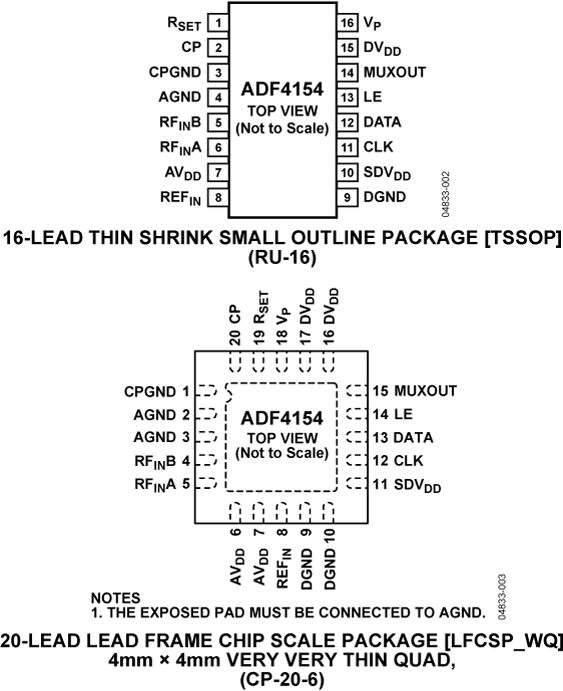

ADF4154 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

FRACTIONAL-N FREQUENCY SYNTHESIZER

Part	Number of Circuits	Package Length	Package Name	Package Width	PLL	Input Ratio	Output Ratio	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)	Multiplier	Divider	Input	Mounting Type	Output	Differential Input	Differential Output	Type	Frequency - Max	Package / Case
Analog Devices Inc./Maxim Integrated ADF4154BRUZ-RL7	1	0.173 in	16-TSSOP	4.4 mm	Yes	2	1	3.3 V	2.7 V	-40 °C	85 °C	Yes	No	CMOS TTL	Surface Mount	Clock	Yes	No	Fractional N Synthesizer (RF)	4 GHz
Analog Devices Inc./Maxim Integrated ADF4154BRUZ	1	0.173 in	16-TSSOP	4.4 mm	Yes	2	1	3.3 V	2.7 V	-40 °C	85 °C	Yes	No	CMOS TTL	Surface Mount	Clock	Yes	No	Fractional N Synthesizer (RF)	4 GHz
Analog Devices Inc./Maxim Integrated ADF4154BCPZ-RL7	1	4 mm	20-LFCSP	4 mm	Yes	2	1	3.3 V	2.7 V	-40 °C	85 °C	Yes	No	CMOS TTL	Surface Mount	Clock	Yes	No	Fractional N Synthesizer (RF)	4 GHz	20-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADF4154BRUZ-RL	1	0.173 in	16-TSSOP	4.4 mm	Yes	2	1	3.3 V	2.7 V	-40 °C	85 °C	Yes	No	CMOS TTL	Surface Mount	Clock	Yes	No	Fractional N Synthesizer (RF)	4 GHz
Analog Devices Inc./Maxim Integrated ADF4154BCPZ	1	4 mm	20-LFCSP	4 mm	Yes	2	1	3.3 V	2.7 V	-40 °C	85 °C	Yes	No	CMOS TTL	Surface Mount	Clock	Yes	No	Fractional N Synthesizer (RF)	4 GHz	20-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADF4154BCP		4 mm	20-LFCSP	4 mm	Yes	2	1	3.3 V	2.7 V			Yes	No	CMOS	Surface Mount	Clock	Yes	No	Fractional N Synthesizer (RF)	4 GHz	20-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADF4154BRU	1	0.173 in	16-TSSOP	4.4 mm	Yes	2	1	3.3 V	2.7 V	-40 °C	85 °C	Yes	No	CMOS TTL	Surface Mount	Clock	Yes	No	Fractional N Synthesizer (RF)	4 GHz
Analog Devices Inc./Maxim Integrated ADF4154BCP-REEL		4 mm	20-LFCSP	4 mm	Yes	2	1	3.3 V	2.7 V			Yes	No	CMOS	Surface Mount	Clock	Yes	No	Fractional N Synthesizer (RF)	4 GHz	20-WFQFN Exposed Pad CSP
