Q-0D00Q0 Series

Catalog

COAX CBL BNC TO HD-BNC 9'

Part	2nd Connector	Frequency - Max	Cable Type	Overall Impedance	Color	2nd Contact Gender	Features	1st Connector Mounting Type	1st Contact Gender	Style	2nd Connector Mounting Type	1st Connector	Length	Length (ft)

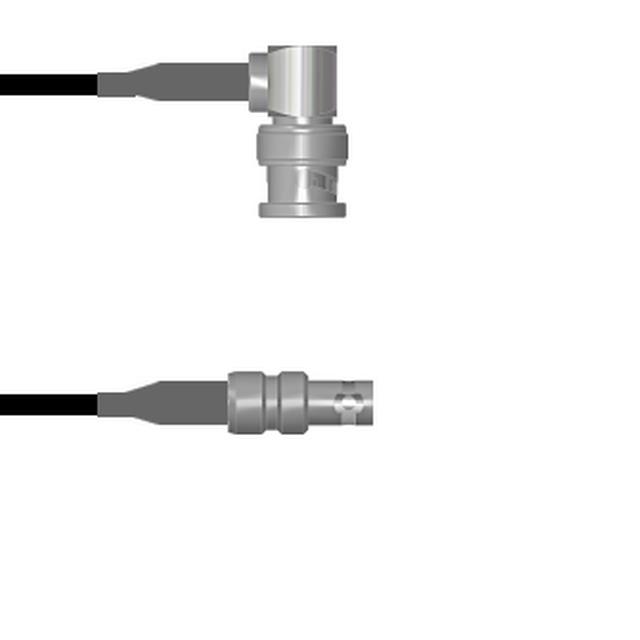

McGill Microwave Systems Q-0D00Q0003108i	HD-BNC Jack	4 GHz	174 RG	50 Ohms	Black	Female	Shielded	Free Hanging (In-Line)	Male	BNC HD-BNC	Free Hanging (In-Line)	BNC Plug Right Angle	9 ft
McGill Microwave Systems Q-0D00Q00032.5M	HD-BNC Jack	4 GHz	174 RG	50 Ohms	Black	Female	Shielded	Free Hanging (In-Line)	Male	BNC HD-BNC	Free Hanging (In-Line)	BNC Plug Right Angle	98.4 in	8.2 ft
McGill Microwave Systems Q-0D00Q00030.5M	HD-BNC Jack	4 GHz	174 RG	50 Ohms	Black	Female	Shielded	Free Hanging (In-Line)	Male	BNC HD-BNC	Free Hanging (In-Line)	BNC Plug Right Angle	19.69 in
McGill Microwave Systems Q-0D00Q0003.25M	HD-BNC Jack	4 GHz	174 RG	50 Ohms	Black	Female	Shielded	Free Hanging (In-Line)	Male	BNC HD-BNC	Free Hanging (In-Line)	BNC Plug Right Angle	9.843 in

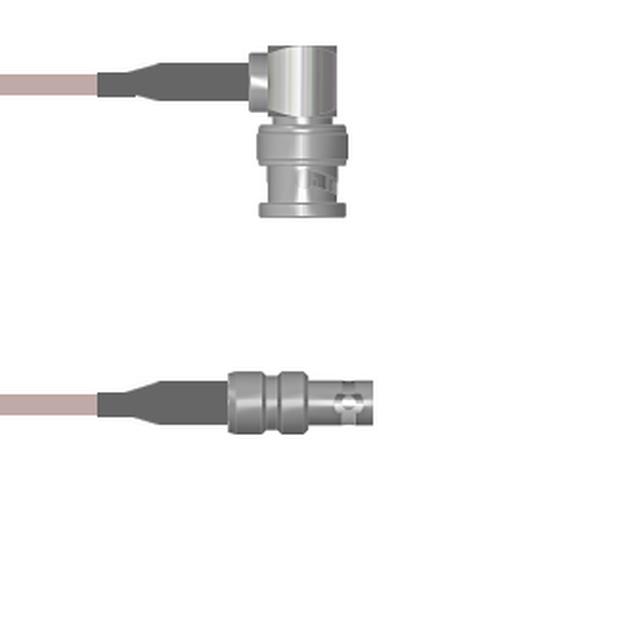

McGill Microwave Systems Q-0D00Q0005060i	HD-BNC Jack	4 GHz	316 RG	50 Ohms	Copper	Female	Shielded	Free Hanging (In-Line)	Male	BNC HD-BNC	Free Hanging (In-Line)	BNC Plug Right Angle	1524 mm	5 ft
McGill Microwave Systems Q-0D00Q0003001M	HD-BNC Jack	4 GHz	174 RG	50 Ohms	Black	Female	Shielded	Free Hanging (In-Line)	Male	BNC HD-BNC	Free Hanging (In-Line)	BNC Plug Right Angle	39.4 in
McGill Microwave Systems Q-0D00Q0003.75M	HD-BNC Jack	4 GHz	174 RG	50 Ohms	Black	Female	Shielded	Free Hanging (In-Line)	Male	BNC HD-BNC	Free Hanging (In-Line)	BNC Plug Right Angle	29.53 in
