SFP56 Series

Catalog

PLUGGABLE I/O CONNECTOR, SFP-DD, 40 CONTACTS, 1 X 1 (SINGLE), SURFACE MOUNT, HSIO SERIES

Part	Features	Contact Finish	Mounting Type	Connector Style	Number of Positions	Connector Type	Termination	Contact Finish Thickness	Connector Pin Configuration (Columns)	Connector Pin Configuration (Rows)
TE Connectivity AMP Connectors 2325864-1	Board Guide	Gold	Right Angle Surface Mount	Receptacle	40	SFP-DD (Double Density)	Solder	30 µin

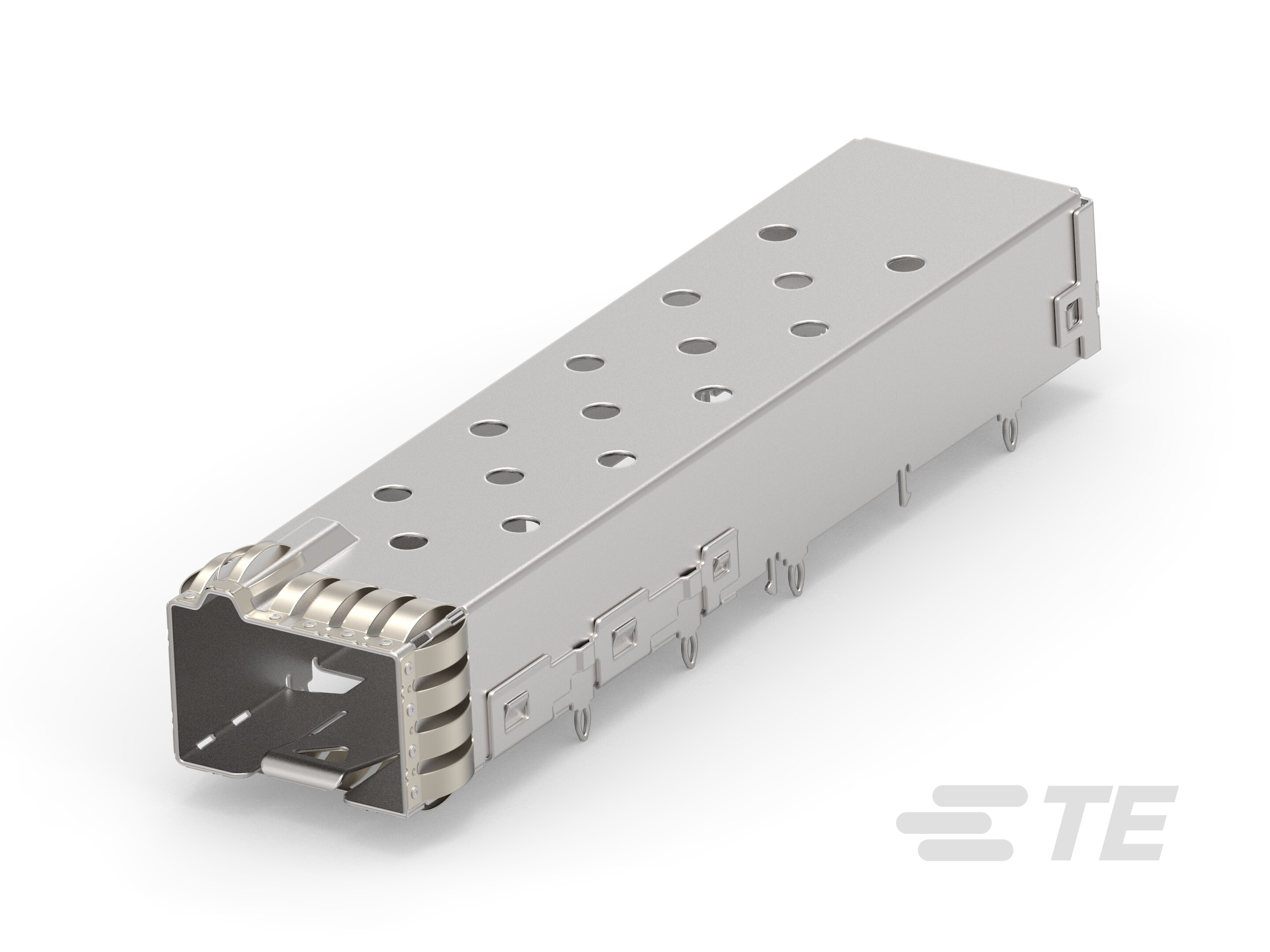

TE Connectivity AMP Connectors 2335809-1	EMI Shielded		Right Angle Through Hole	Cage	15	SFP-DD (Double Density)	Press-Fit
TE Connectivity AMP Connectors 2325864-2
TE Connectivity AMP Connectors 2325864-2	Board Guide	Gold	Right Angle Surface Mount	Receptacle	40	SFP-DD (Double Density)	Solder	30 µin
TE Connectivity AMP Connectors 2344508-1	EMI Shielded		Panel Mount Right Angle Through Hole	Cage Ganged	40	SFP-DD (Double Density)	Press-Fit		4 pins	1 pins
TE Connectivity AMP Connectors 2359845-1	EMI Shielded		Right Angle Through Hole	Cage with Heat Sink	15	SFP-DD (Double Density)	Press-Fit

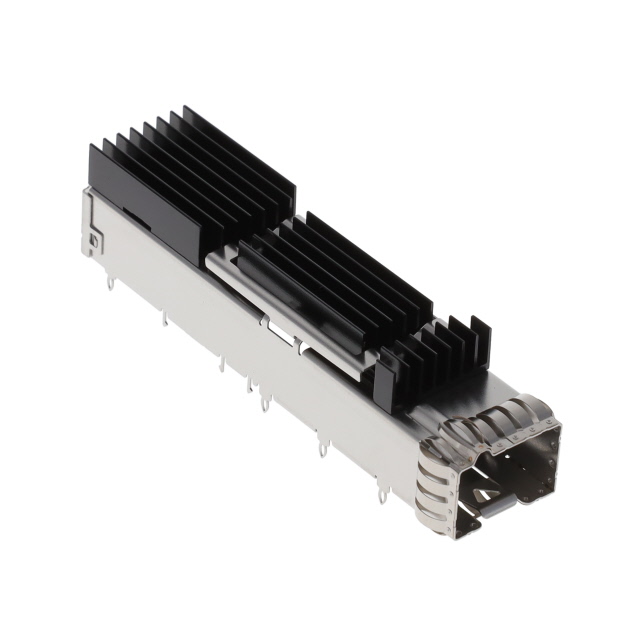

TE Connectivity AMP Connectors 2359845-2	EMI Shielded		Right Angle Through Hole	Cage with Heat Sink	15	SFP-DD (Double Density)	Press-Fit

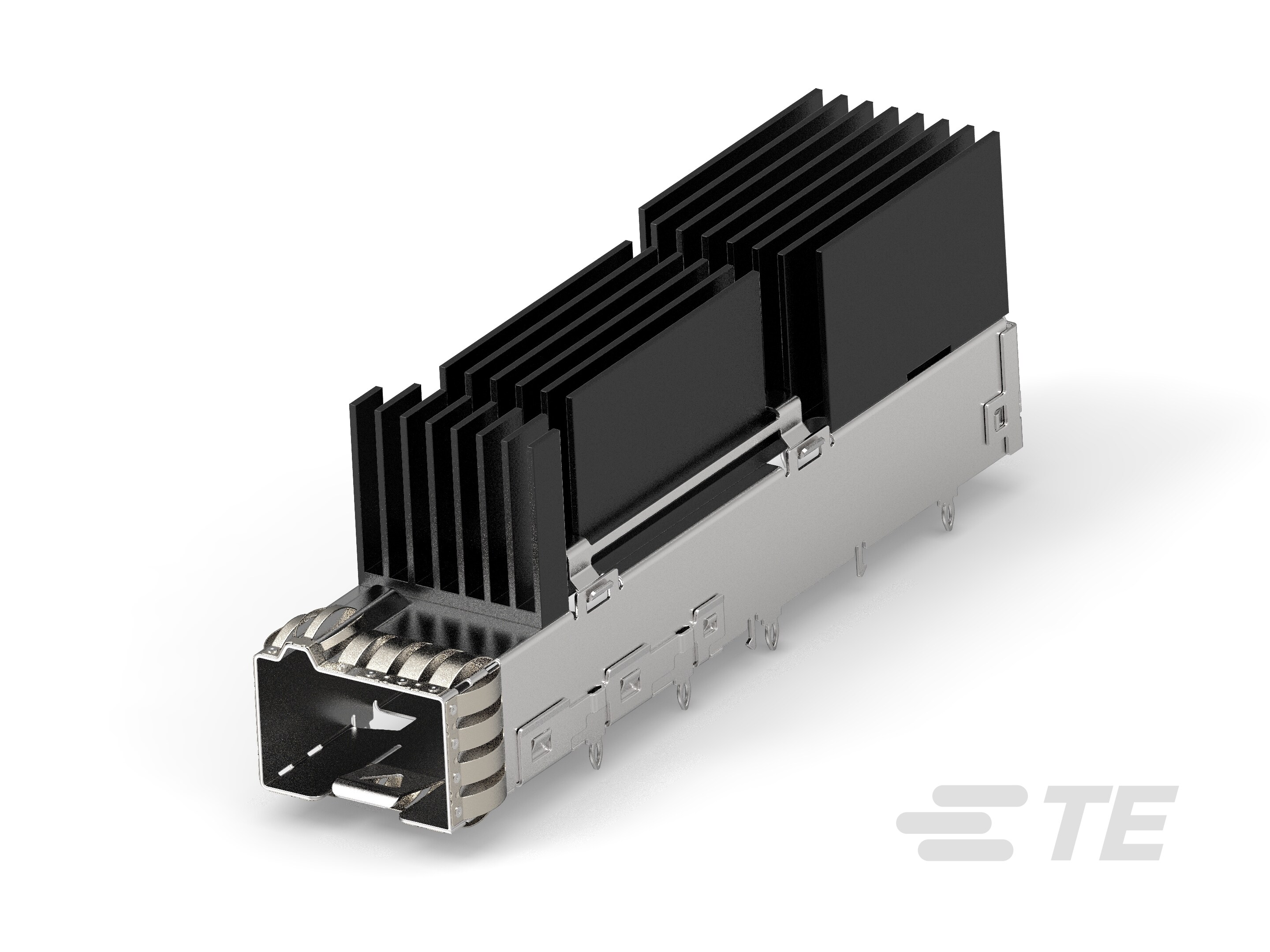

TE Connectivity AMP Connectors 2359845-3	EMI Shielded		Right Angle Through Hole	Cage with Heat Sink	15	SFP-DD (Double Density)	Press-Fit
