84982 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN FFC FPC VERT 7POS 1MM SMD

Part	Mounting Type	FFC, FCB Thickness	Flat Flex Type	Cable End Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Termination	Contact Material	Housing Material	Contact Finish	Connector/Contact Type	Housing Color	Pitch [x]	Pitch [x]	Number of Positions	Number of Positions

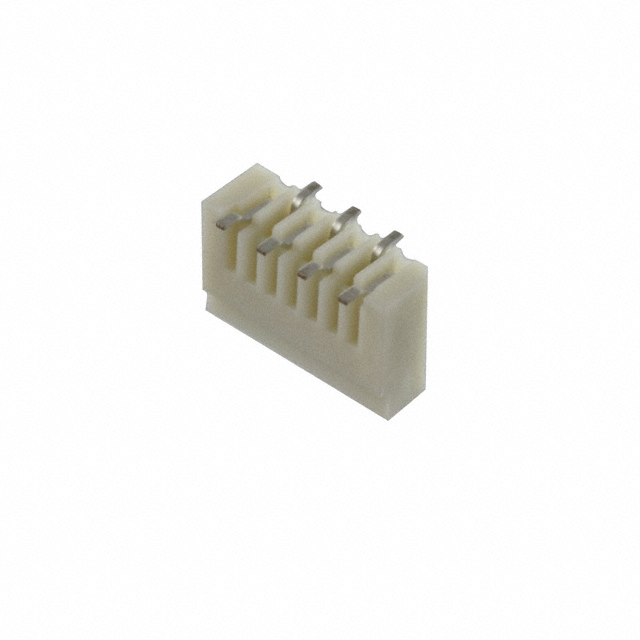

TE Connectivity Raychem Cable Protection 84982-7	Surface Mount	0.3 mm	FFC FPC	Straight	85 °C	-20 C	125 VDC	Solder	Phosphor Bronze	Polyamide (PA) Nylon Glass Filled	Tin	Contacts Vertical - 1 Sided	Beige	0.039 in	1 mm	7

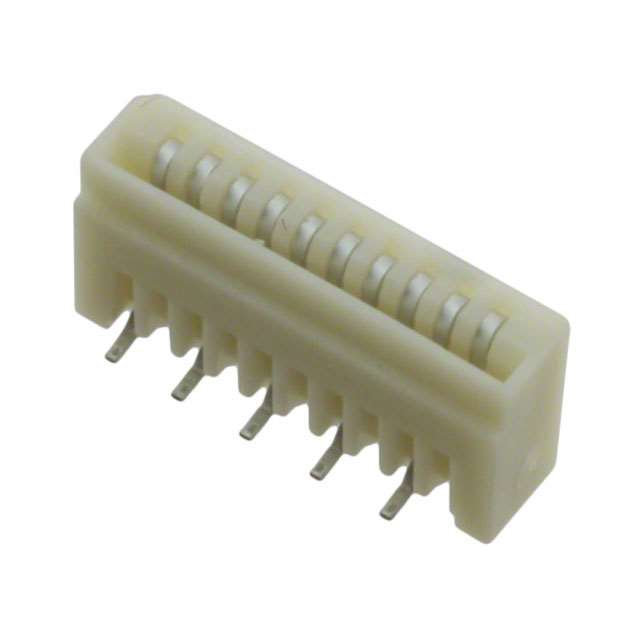

TE Connectivity Raychem Cable Protection 1-84982-0	Surface Mount	0.3 mm	FFC FPC	Straight	85 °C	-20 C	125 VDC	Solder	Phosphor Bronze	Polyamide (PA) Nylon Glass Filled	Tin	Contacts Vertical - 1 Sided	Beige	0.039 in	1 mm	10

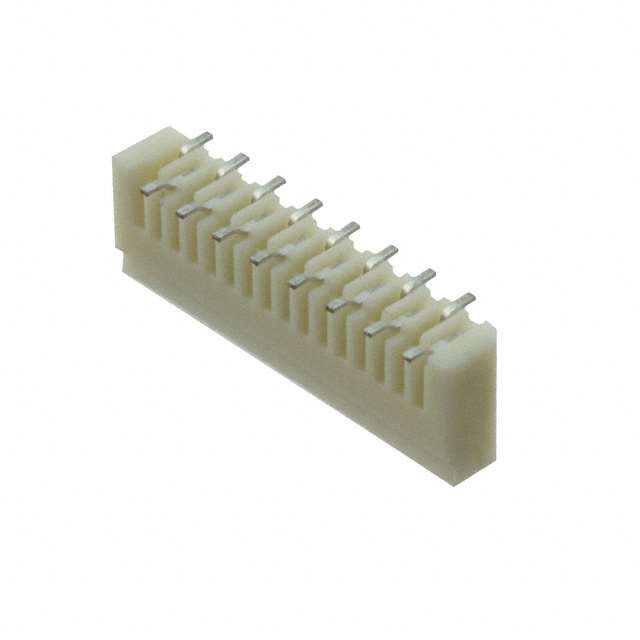

TE Connectivity Raychem Cable Protection 1-84982-6	Surface Mount	0.3 mm	FFC FPC	Straight	85 °C	-20 C	125 VDC	Solder	Phosphor Bronze	Polyamide (PA) Nylon Glass Filled	Tin	Contacts Vertical - 1 Sided	Beige	0.039 in	1 mm		16
TE Connectivity Raychem Cable Protection 1-84982-4	Surface Mount	0.3 mm	FFC FPC	Straight	85 °C	-20 C	125 VDC	Solder	Phosphor Bronze	Polyamide (PA) Nylon Glass Filled	Tin	Contacts Vertical - 1 Sided	Beige	0.039 in	1 mm	14

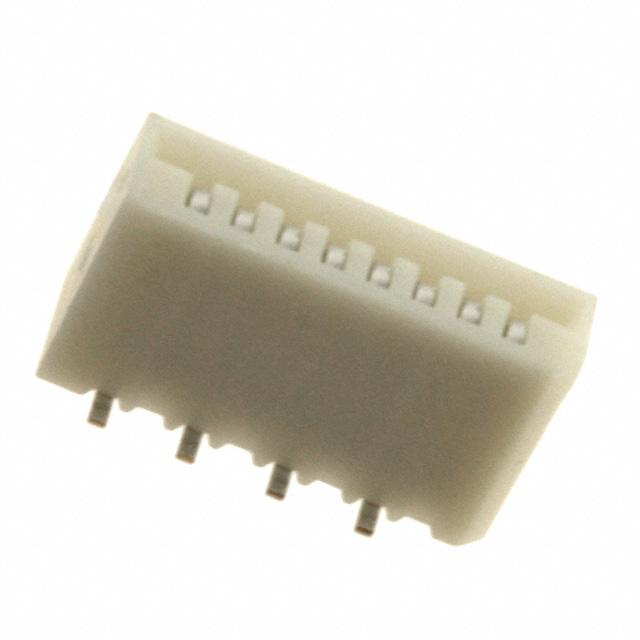

TE Connectivity Raychem Cable Protection 84982-8	Surface Mount	0.3 mm	FFC FPC	Straight	85 °C	-20 C	125 VDC	Solder	Phosphor Bronze	Polyamide (PA) Nylon Glass Filled	Tin	Contacts Vertical - 1 Sided	Beige	0.039 in	1 mm	8

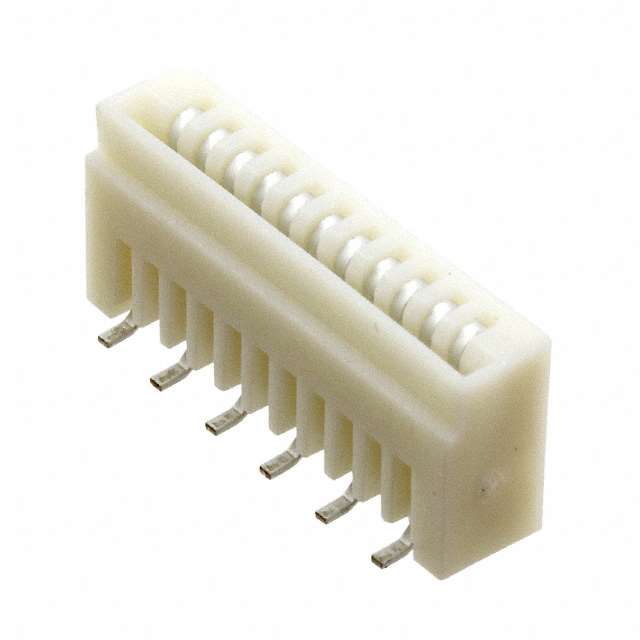

TE Connectivity Raychem Cable Protection 1-84982-1	Surface Mount	0.3 mm	FFC FPC	Straight	85 °C	-20 C	125 VDC	Solder	Phosphor Bronze	Polyamide (PA) Nylon Glass Filled	Tin	Contacts Vertical - 1 Sided	Beige	0.039 in	1 mm	11
TE Connectivity Raychem Cable Protection 2-84982-2	Surface Mount	0.3 mm	FFC FPC	Straight	85 °C	-20 C	125 VDC	Solder	Phosphor Bronze	Polyamide (PA) Nylon Glass Filled	Tin	Contacts Vertical - 1 Sided	Beige	0.039 in	1 mm	22 positions

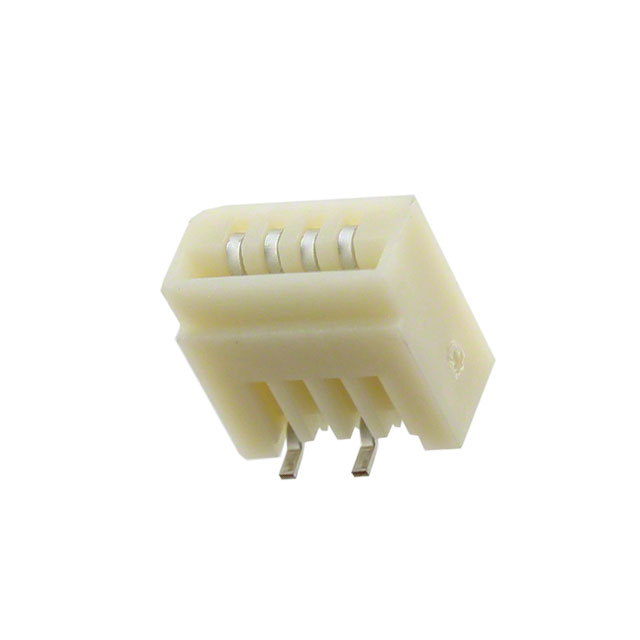

TE Connectivity Raychem Cable Protection 84982-4	Surface Mount	0.3 mm	FFC FPC	Straight	85 °C	-20 C	125 VDC	Solder	Phosphor Bronze	Polyamide (PA) Nylon Glass Filled	Tin	Contacts Vertical - 1 Sided	Beige	0.039 in	1 mm	4

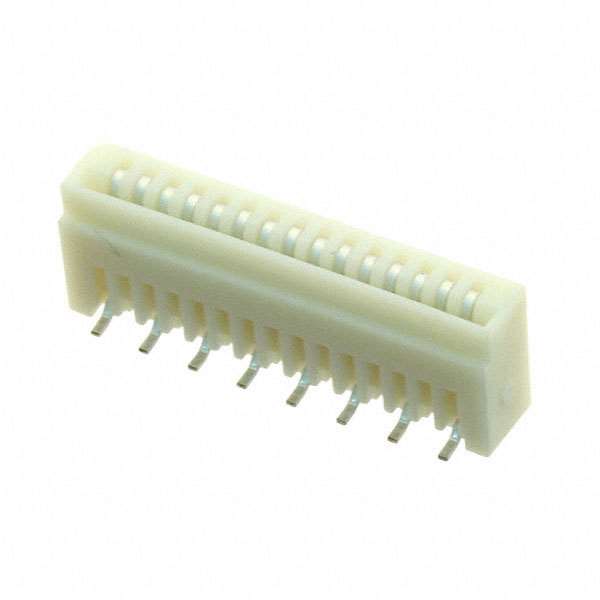

TE Connectivity Raychem Cable Protection 1-84982-5	Surface Mount	0.3 mm	FFC FPC	Straight	85 °C	-20 C	125 VDC	Solder	Phosphor Bronze	Polyamide (PA) Nylon Glass Filled	Tin	Contacts Vertical - 1 Sided	Beige	0.039 in	1 mm	15
TE Connectivity Raychem Cable Protection 2-84982-8	Surface Mount	0.3 mm	FFC FPC	Straight	85 °C	-20 C	125 VDC	Solder	Phosphor Bronze	Polyamide (PA) Nylon Glass Filled	Tin	Contacts Vertical - 1 Sided	Beige	0.039 in	1 mm	28
