RTS1BS16 Series

Catalog

CIRCULAR CONNECTOR, SIZE 16, ECOMATE AQUARIUS SERIES, CABLE MOUNT RECEPTACLE, 9 CONTACTS

Part	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Includes	Includes Total Count	Type	Shielding	Housing Color	Ingress Protection IP Rating	Ingress Protection Description	Connector Type	Orientation	Contact Type	Contact Size	Number of Positions	Note	Shell Size - Insert Length	Shell Size - Insert Width	Shell Material	Mounting Type	Insert Material	Material Flammability Rating	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Features

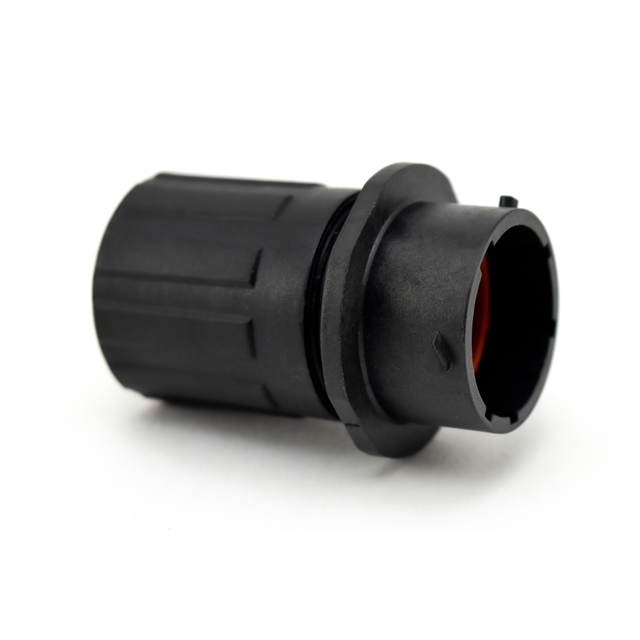

McGill Microwave Systems RTS1BS16N09SHEC03	Bayonet Lock	125 °C	-40 °C	Circular	Connector Gasket O-Ring Seal	4 pcs	For Female Sockets	Unshielded	Black	IP67 IP69K	Dust Tight Water Resistant Waterproof	Receptacle Housing	N (Normal)	Crimp	2.5 mm 16	9	Contacts Not Included	16 mm	9 mm	Thermoplastic	Free Hanging (In-Line)	Thermoplastic	UL94 V-0
McGill Microwave Systems RTS1BS16N26SHEC03	Bayonet Lock	125 °C	-40 °C	Circular	Connector Gasket O-Ring Seal	4 pcs	For Female Sockets	Unshielded	Black	IP67 IP69K	Dust Tight Water Resistant Waterproof	Receptacle Housing	N (Normal)	Crimp	20	26	Contacts Not Included			Thermoplastic	Free Hanging (In-Line)	Thermoplastic	UL94 V-0	16 S	26
McGill Microwave Systems RTS1BS16N19S03	Bayonet Lock	125 °C	-40 °C	Circular	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs	For Female Sockets	Unshielded	Black	IP67 IP69K	Dust Tight Water Resistant Waterproof	Receptacle Housing	N (Normal)	Crimp	16 S	19	Contacts Not Included			Thermoplastic	Free Hanging (In-Line)	Thermoplastic	UL94 V-0	16 S	19	Backshell
