RT072028 Series

Catalog

RECEPTACLE, JAM NUT, 28 POSITION

Part	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Shell Finish	Shell Material	Ingress Protection Description	Ingress Protection IP Rating	Includes Total Count	Includes	Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Orientation	Material Flammability Rating	Mounting Feature	Contact Type	Insert Material	Contact Shape	Housing Color	Note	Features	Shielding	Contact Size	Fastening Type	Mounting Type	Connector Type	Primary Material
McGill Microwave Systems RT072028PNHECR

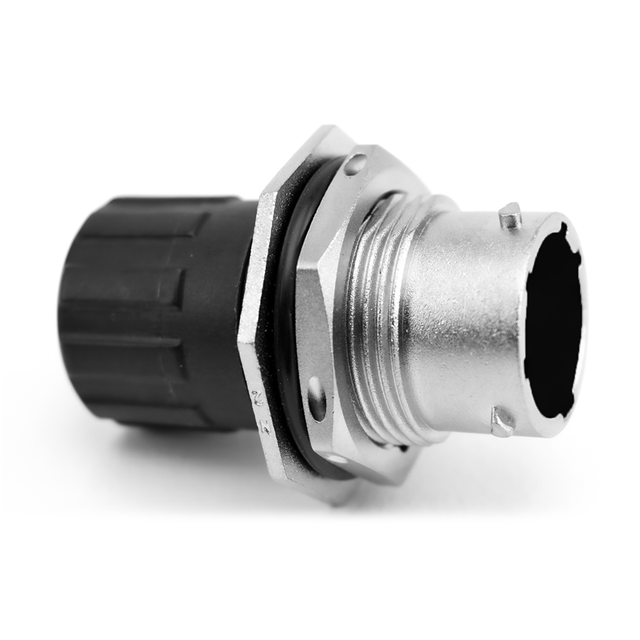

McGill Microwave Systems RT072028PNHEC	28	20	Nickel	Zinc Alloy	Dust Tight Waterproof	IP67	3 pcs	Connector Nut O-Ring	For Male Pins	-40 °C	105 °C	28	N (Normal)	UL94 V-0	Bulkhead Front Side Nut	Crimp	Thermoplastic	Circular	Silver	Contacts Not Included	Backshell	Shielded	16 S	Bayonet Lock	Panel Mount	Receptacle Housing
McGill Microwave Systems RT072028PNHEC03	28	20	Nickel	Zinc Alloy	Dust Tight Waterproof	IP67			For Male Pins			28	N (Normal)	UL94 V-0	Bulkhead Front Side Nut	Crimp			Silver			Unshielded	16 S	Bayonet Lock	Free Hanging (In-Line) Panel Mount	Receptacle Housing	Metal
McGill Microwave Systems RT072028PNH	28	20	Nickel	Zinc Alloy	Dust Tight Waterproof	IP67	3 pcs	Connector Nut O-Ring	For Male Pins	-40 °C	105 °C	28	N (Normal)	UL94 V-0	Bulkhead Front Side Nut	Crimp	Thermoplastic	Circular	Silver	Contacts Not Included		Shielded	16 S	Bayonet Lock	Panel Mount	Receptacle Housing
McGill Microwave Systems RT072028PNHEC03R	28	20	Nickel	Zinc Alloy	Dust Tight Waterproof	IP67	3 pcs	Connector Nut O-Ring	For Male Pins	-40 °C	125 °C	28	N (Normal)	UL94 V-0	Bulkhead Front Side Nut	Crimp	Thermoplastic	Circular	Silver	Contacts Not Included	Backshell	Shielded	16 S	Bayonet Lock	Panel Mount	Receptacle Housing

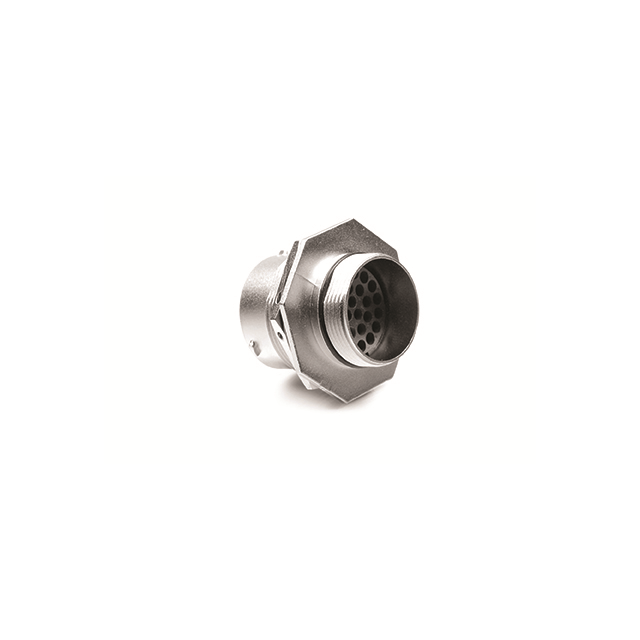

McGill Microwave Systems RT072028SNH03	28	20	Nickel	Zinc Alloy	Dust Tight Waterproof	IP67	4 pcs	Connector Gasket Nut O-Ring	For Female Sockets	-40 °C	125 °C	28	N (Normal)	UL94 V-0	Bulkhead Front Side Nut	Crimp	Thermoplastic	Circular	Silver	Contacts Not Included		Shielded	16 S	Bayonet Lock	Panel Mount	Receptacle Housing
McGill Microwave Systems RT072028PNH03	28	20	Nickel	Zinc Alloy	Dust Tight Waterproof	IP67	4 pcs	Connector Gasket Nut O-Ring	For Male Pins	-40 °C	125 °C	28	N (Normal)	UL94 V-0	Bulkhead Front Side Nut	Crimp	Thermoplastic	Circular	Silver	Contacts Not Included		Shielded	16 S	Bayonet Lock	Panel Mount	Receptacle Housing
