ADC-07BFFC Series

Catalog

CONN PLUG FMALE 7POS GOLD CRIMP

Part	Material Flammability Rating	Shell Material	Orientation	Backshell Material, Plating	Shielding	Primary Material	Color	Features	Ingress Protection Description	Ingress Protection IP Rating	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Contact Finish - Mating	Number of Positions	Position Types	Shell Size - Insert	Connector Type	Current Rating	Insert Material	Termination	Fastening Type	Contact Material	Cable Opening (Min)	Cable Opening (Max)
McGill Microwave Systems ADC-07BFFC-LL7AP0	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Keyed	Glass Filled Nylon Polyamide (PA)	Unshielded	Plastic	Black	Backshell Coupling Nut	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	-40 °C	105 °C	300 VAC/DC	Gold	7	Data	D	Female Sockets Plug	20 A	Glass Filled Nylon PA Polyamide	Crimp	Bayonet Lock	Copper Alloy

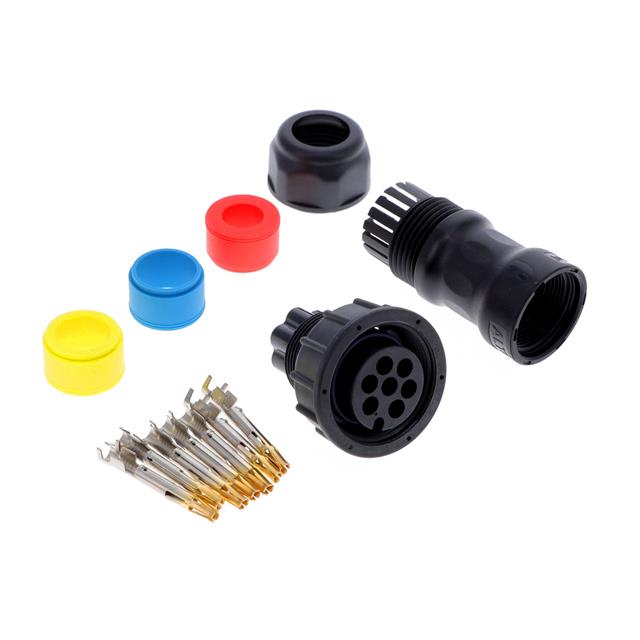

McGill Microwave Systems ADC-07BFFC-SL7AP0	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Keyed	Glass Filled Nylon Polyamide (PA)	Unshielded	Plastic	Black	Backshell Coupling Nut	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	-40 °C	105 °C	300 VAC/DC	Gold	7	Data	D	Female Sockets Plug	20 A	Glass Filled Nylon PA Polyamide	Crimp	Bayonet Lock	Copper Alloy
McGill Microwave Systems ADC-07BFFC-LL7LP0	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Keyed	Glass Filled Nylon Polyamide (PA)	Unshielded	Plastic	Black	Backshell	Dust Tight Waterproof	IP67	Free Hanging (In-Line)	-40 °C	105 °C	250 V	Gold	7	Data	D	Female Sockets Plug	20 A	Glass Filled Nylon PA Polyamide	Crimp	Threaded	Copper Alloy	0.472 in	0.551 in
