KD12 Series

Catalog

TERM BLOCK PLUG 12POS STR 5MM

Part	Plug Wire Entry Angle	Features	Number of Positions	Pitch	Voltage - UL	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Mounting Type	Contact Mating Finish	Current - UL	Color	Type	Positions Per Level	Number of Levels	Housing Material	Insulation Height	Wire Strip Length (Min)	Wire Strip Length (Max)	Contact Material	Material Flammability Rating

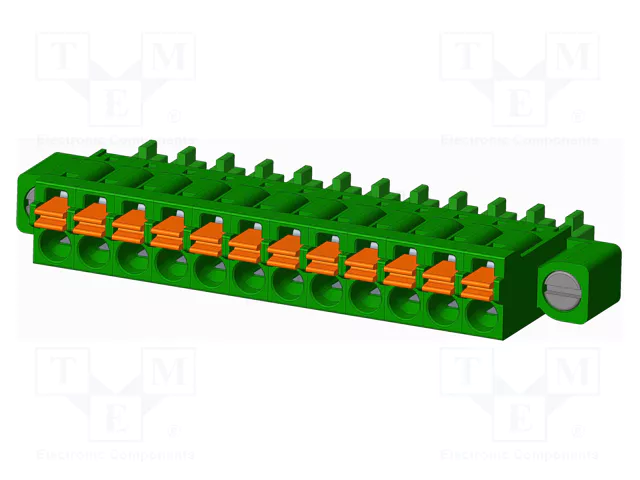

McGill Microwave Systems KD1270510000G	180 °	Mating Flange Retention Latches (Wire Side)	12	0.197 in	300 V	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	24 AWG	14 AWG	Free Hanging (In-Line)	Tin	12 A	Green	Female Sockets Plug	12	1	Thermoplastic	0.429 in	11 mm	12 mm	Phosphor Bronze	UL94 V-0
McGill Microwave Systems KD1250520000G	180 °	Latch Lock	12	5.08 mm	300 V	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	24 AWG	14 AWG	Free Hanging (In-Line)	Tin	12 A	Green	Female Sockets Plug	12	1	Thermoplastic	0.429 in	11 mm	12 mm	Phosphor Bronze	UL94 V-0

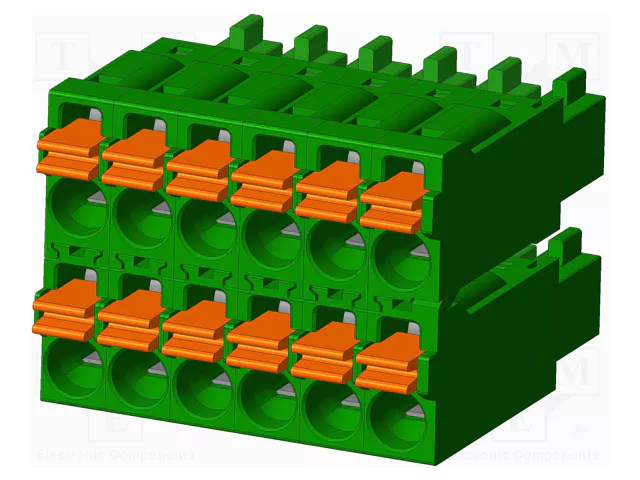

McGill Microwave Systems KD121050A000G	180 °		12	0.138 in	160 V	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	24 AWG	16 AWG	Free Hanging (In-Line)	Tin	5.5 A	Green	Female Sockets Plug	6	2	Thermoplastic	0.634 in	9 mm	10 mm	Phosphor Bronze	UL94 V-0
McGill Microwave Systems KD1270520000G	180 °	Latch Lock Retention Latches (Wire Side)	12	0.197 in	300 V	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	24 AWG	14 AWG	Free Hanging (In-Line)	Tin	12 A	Green	Female Sockets Plug	12	1	Thermoplastic	0.429 in	11 mm	12 mm	Phosphor Bronze	UL94 V-0
McGill Microwave Systems KD1230510000G	180 °	Mating Flange	12	0.15 in	300 V	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	24 AWG	16 AWG	Free Hanging (In-Line)	Tin	5.5 A	Green	Female Sockets Plug	12	1	Thermoplastic	0.307 in	9 mm	10 mm	Phosphor Bronze	UL94 V-0
McGill Microwave Systems KD1230500000G	180 °		12	0.15 in	300 V	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	24 AWG	16 AWG	Free Hanging (In-Line)	Tin	5.5 A	Green	Female Sockets Plug	12	1	Thermoplastic	0.307 in	9 mm	10 mm	Phosphor Bronze	UL94 V-0
McGill Microwave Systems KD1270500000G	180 °	Retention Latches (Non-Wire Side)	12	0.197 in	300 V	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	24 AWG	14 AWG	Free Hanging (In-Line)	Tin	12 A	Green	Female Sockets Plug	12	1	Thermoplastic	0.429 in	11 mm	12 mm	Phosphor Bronze	UL94 V-0
