MA2LAP Series

Catalog

CONN RCPT MALE 17POS GOLD CRIMP

Part	Voltage Rating	Voltage Rating (Type)	Shielding	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Shell Size - Insert	Orientation	Shell Finish	Number of Positions	Fastening Type	Contact Finish - Mating	Termination	Color	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Mounting Feature	Connector Type	Primary Material	Current Rating	Contact Type	Contact Size	Housing Color	Material Flammability Rating	Type	Insert Material	Note	Contact Shape

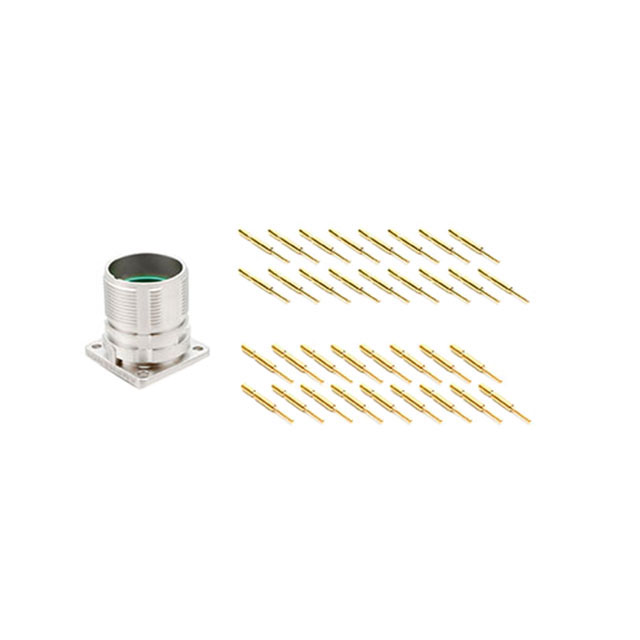

McGill Microwave Systems MA2LAP1700-KIT	125 V	DC	Shielded	Panel Mount	-20 °C	130 °C	M23-17	N (Normal)	Nickel	17	Threaded	Gold	Crimp	Silver	Dust Tight Waterproof	IP67	Zinc Die Cast	Flange	Male Pins Receptacle	Metal	9 A
McGill Microwave Systems MA2LAP1200-KIT	160 V		Shielded	Panel Mount	-20 °C	130 °C	M23-12	N (Normal)	Nickel	12	Threaded	Gold	Crimp	Silver	Dust Tight Waterproof	IP67	Zinc Die Cast	Flange	Male Pins Receptacle	Metal	10 A
McGill Microwave Systems MA2LAP1600			Shielded	Panel Mount	-20 °C	130 °C	M23-16	N (Normal)	Nickel	16	Push-Twist				Dust Tight Waterproof	IP67	Zinc Die Cast	Flange	Receptacle Housing			Crimp	1 mm	Silver	UL94 V-0	For Female Sockets or Male Pins	Nylon 6/6 PA66 Polyamide	Contacts Not Included	Circular
McGill Microwave Systems MA2LAP1900			Shielded	Panel Mount	-20 °C	130 °C	M23-19	P	Nickel	19	Push-Twist				Dust Tight Waterproof	IP67	Zinc Die Cast	Flange	Receptacle Housing			Crimp	1 mm	Silver	UL94 V-0	For Female Sockets or Male Pins	Nylon 6/6 PA66 Polyamide	Contacts Not Included	Circular
McGill Microwave Systems MA2LAP1700			Shielded	Panel Mount	-20 °C	130 °C	M23-17	N (Normal)	Nickel	17	Push-Twist				Dust Tight Waterproof	IP67	Zinc Die Cast	Flange	Receptacle Housing			Crimp	1 mm	Silver	UL94 V-0	For Female Sockets or Male Pins	Nylon 6/6 PA66 Polyamide	Contacts Not Included	Circular
