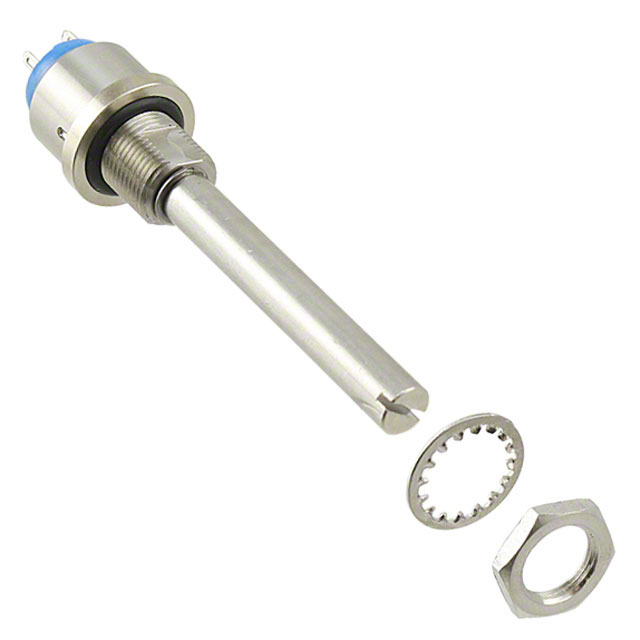

P13SM Series
Manufacturer: Vishay Dale
Beta
⌘K
POTENTIOMETERS 1.5WATTS 470OHMS 20% 6MM DIA SHAFT
| Part | Actuator Diameter | Features | Number of Gangs | Resistance | Temperature Coefficient | Termination Style | Built in Switch | Bushing Thread Diameter | Bushing Thread | Bushing Thread Pitch | Actuator Type | Power (Watts) | Resistive Material | Rotation | Number of Turns | Taper | Tolerance | Adjustment Type | Actuator Length | Mounting Type | Size - Body Diameter | Size - Body Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | 0.236 in | Sealed | 1 | 470 Ohm | 150 ppm/¯C | Solder Lug | None | 10 mm | M10 x 0.75 | 0.75 mm | Slotted | 1.5 W | Cermet | 310 ° | 1 turns | Linear | 20 % | User Defined | 1.969 in | Panel Mount | 0.63 in | Round |
 Vishay Dale | 0.236 in | Sealed | 1 | 4.7 kOhm | 150 ppm/¯C | Solder Lug | None | 10 mm | M10 x 0.75 | 0.75 mm | Slotted | 1.5 W | Cermet | 310 ° | 1 turns | Linear | 20 % | User Defined | 1.969 in | Panel Mount | 0.63 in | Round |
Vishay Dale |
