KD08 Series

Catalog

PLUGGABLE TERMINAL BLOCKS 508 TB SPRING PLUG

Part	Mounting Type	Pitch	Features	Number of Positions	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Operating Temperature (Min)	Operating Temperature (Max)	Number of Levels	Voltage - UL	Color	Contact Mating Finish	Plug Wire Entry Angle	Type	Termination Style	Current - UL	Positions Per Level	Contact Material	Insulation Height	Wire Strip Length (Min)	Wire Strip Length (Max)	Housing Material	Material Flammability Rating

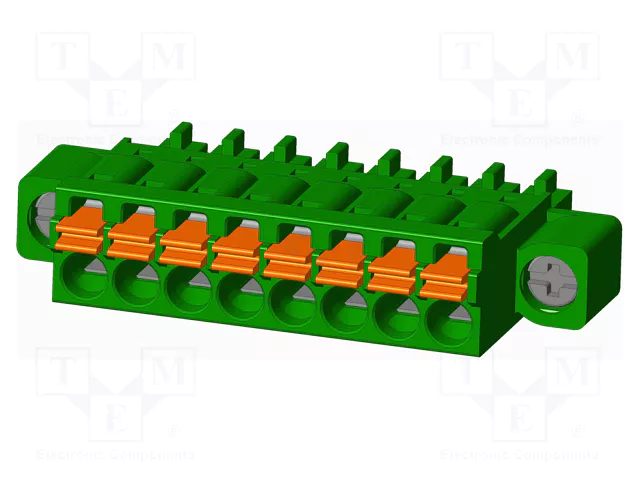

McGill Microwave Systems KD0850500000G	Free Hanging (In-Line)	5.08 mm	Retention Latches (Non-Wire Side)	8	24 AWG	14 AWG	-40 °C	115 °C	1	300 V	Green	Tin	180 °	Female Sockets Plug	Push-In Spring Screwless - Leg Spring	12 A	8	Phosphor Bronze	0.429 in	11 mm	12 mm	Thermoplastic	UL94 V-0

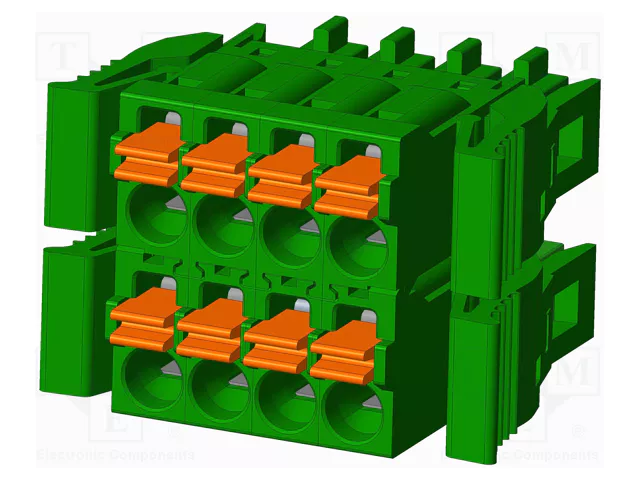

McGill Microwave Systems KD081050A000G	Free Hanging (In-Line)	0.138 in		8	24 AWG	16 AWG	-40 °C	115 °C	2	160 V	Green	Tin	180 °	Female Sockets Plug	Push-In Spring Screwless - Leg Spring	5.5 A	4	Phosphor Bronze	0.634 in	9 mm	10 mm	Thermoplastic	UL94 V-0
McGill Microwave Systems KD0810510000G	Free Hanging (In-Line)	0.138 in	Mating Flange	8	24 AWG	16 AWG	-40 °C	115 °C	1	160 V	Green	Tin	180 °	Female Sockets Plug	Push-In Spring Screwless - Leg Spring	5.5 A	8	Phosphor Bronze	0.307 in	9 mm	10 mm	Thermoplastic	UL94 V-0
McGill Microwave Systems KD081052A000G	Free Hanging (In-Line)	0.138 in	Latch Lock	8	24 AWG	16 AWG	-40 °C	115 °C	2	160 V	Green	Tin	180 °	Female Sockets Plug	Push-In Spring Screwless - Leg Spring	5.5 A	4	Phosphor Bronze	0.634 in	9 mm	10 mm	Thermoplastic	UL94 V-0
