Q-3604W0 Series

Catalog

CBL ASSY SMA-TNC PLUG-PLG 9.843"

Part	Cable Type	Overall Impedance	2nd Connector	Style	1st Contact Gender	1st Connector Mounting Type	1st Connector	Color	2nd Connector Mounting Type	Connector Impedance	Frequency - Max	Length	Cable Impedance	2nd Contact Gender	Features	Length (ft)

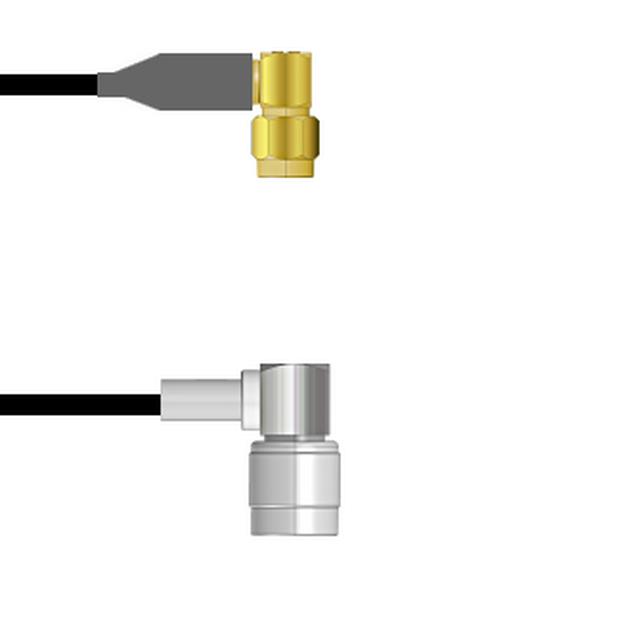

McGill Microwave Systems Q-3604W0008.25M	58 RG	50 Ohms	Right Angle TNC Plug	SMA TNC	Male	Free Hanging (In-Line)	Right Angle SMA Plug	Black	Free Hanging (In-Line)	50 Ohms	1 GHz	9.843 in	50 Ohms	Male	Shielded
McGill Microwave Systems Q-3604W0008060I	58 RG	50 Ohms	Right Angle TNC Plug	SMA TNC	Male	Free Hanging (In-Line)	Right Angle SMA Plug	Black	Free Hanging (In-Line)	50 Ohms	1 GHz	1524 mm	50 Ohms	Male	Shielded	5 ft
McGill Microwave Systems Q-3604W0008.75M	58 RG	50 Ohms	Right Angle TNC Plug	SMA TNC	Male	Free Hanging (In-Line)	Right Angle SMA Plug	Black	Free Hanging (In-Line)	50 Ohms	1 GHz	29.53 in	50 Ohms	Male	Shielded
McGill Microwave Systems Q-3604W0008048I	58 RG	50 Ohms	Right Angle TNC Plug	SMA TNC	Male	Free Hanging (In-Line)	Right Angle SMA Plug	Black	Free Hanging (In-Line)	50 Ohms	1 GHz	48 in	50 Ohms	Male	Shielded
McGill Microwave Systems Q-3604W0008001M	58 RG	50 Ohms	Right Angle TNC Plug	SMA TNC	Male	Free Hanging (In-Line)	Right Angle SMA Plug	Black	Free Hanging (In-Line)	50 Ohms	1 GHz	39.4 in	50 Ohms	Male	Shielded
McGill Microwave Systems Q-3604W0008036I	58 RG	50 Ohms	Right Angle TNC Plug	SMA TNC	Male	Free Hanging (In-Line)	Right Angle SMA Plug	Black	Free Hanging (In-Line)	50 Ohms	1 GHz	36 in	50 Ohms	Male	Shielded
McGill Microwave Systems Q-3604W0008003M	58 RG	50 Ohms	Right Angle TNC Plug	SMA TNC	Male	Free Hanging (In-Line)	Right Angle SMA Plug	Black	Free Hanging (In-Line)	50 Ohms	1 GHz	118.1 in	50 Ohms	Male	Shielded
McGill Microwave Systems Q-3604W0008024I	58 RG	50 Ohms	Right Angle TNC Plug	SMA TNC	Male	Free Hanging (In-Line)	Right Angle SMA Plug	Black	Free Hanging (In-Line)	50 Ohms	1 GHz	24 in	50 Ohms	Male	Shielded
McGill Microwave Systems Q-3604W0008012I	58 RG	50 Ohms	Right Angle TNC Plug	SMA TNC	Male	Free Hanging (In-Line)	Right Angle SMA Plug	Black	Free Hanging (In-Line)	50 Ohms	1 GHz	12 in	50 Ohms	Male	Shielded
McGill Microwave Systems Q-3604W0008006I	58 RG	50 Ohms	Right Angle TNC Plug	SMA TNC	Male	Free Hanging (In-Line)	Right Angle SMA Plug	Black	Free Hanging (In-Line)	50 Ohms	1 GHz	0.5 ft	50 Ohms	Male	Shielded
