843004A Series

FemtoClock Crystal/LVCMOS-to-3.3V LVPECL Frequency Synthesizer

Manufacturer: Renesas Electronics Corporation

Catalog

FemtoClock Crystal/LVCMOS-to-3.3V LVPECL Frequency Synthesizer

Part	Output	Frequency - Max	Mounting Type	Package Name	PLL	Input	Package Width	Package Length	Input Ratio	Output Ratio	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Multiplier	Divider	Number of Circuits	Differential Output	Differential Input	Type	Operating Temperature (Min)	Operating Temperature (Max)
Renesas Electronics Corporation 843004AGI-01LF	LVPECL	170 MHz	Surface Mount	24-TSSOP	Yes with Bypass	Crystal	4.4 mm	0.173 in	1	4	2.375 V	3.465 V	No	Yes	1	Yes	No	Frequency Synthesizer	-40 °C	85 °C
Renesas Electronics Corporation 843004AGI-04LFT	LVPECL	680 MHz	Surface Mount	24-TSSOP	Yes with Bypass	Crystal LVCMOS LVTTL	4.4 mm	0.173 in	2	4	3.135 V	3.465 V	No	Yes	1	Yes	No	Frequency Synthesizer	-40 °C	85 °C

Catalog

FemtoClock Crystal/LVCMOS-to-3.3V LVPECL Frequency Synthesizer

Description

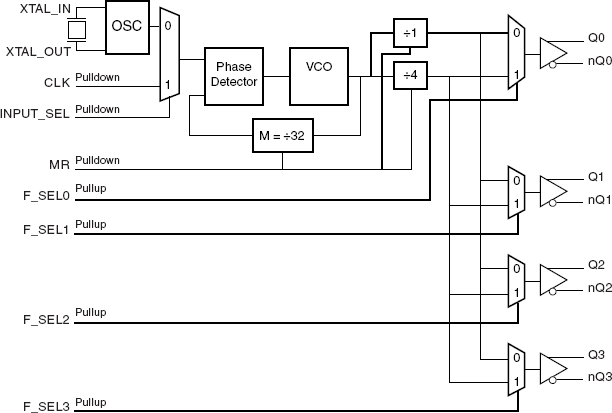

The 843004I-04 is a 4 output LVPECL Synthesizer optimized to generate clock frequencies for a variety of high performance applications. This device can select its input reference clock from either a crystal input or a single-ended clock signal. It can be configured to generate 4 outputs with individually selectable divideby- one or divide-by-four function via the 4 frequency select pins (F_SEL[3:0]). The 843004I-04 uses our 3rd generation low phase noise VCO technology and can achieve 1ps or lower typical rms phase jitter. This ensures that it will easily meet clocking requirements for SDH (STM-1/STM-4/STM-16) and SONET (OC-3/ OC12/OC-48). This device is suitable for multi-rate and multiple port line card applications. The 843004I-04 is conveniently packaged in a small 24-pin TSSOP package.
