RT002238 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

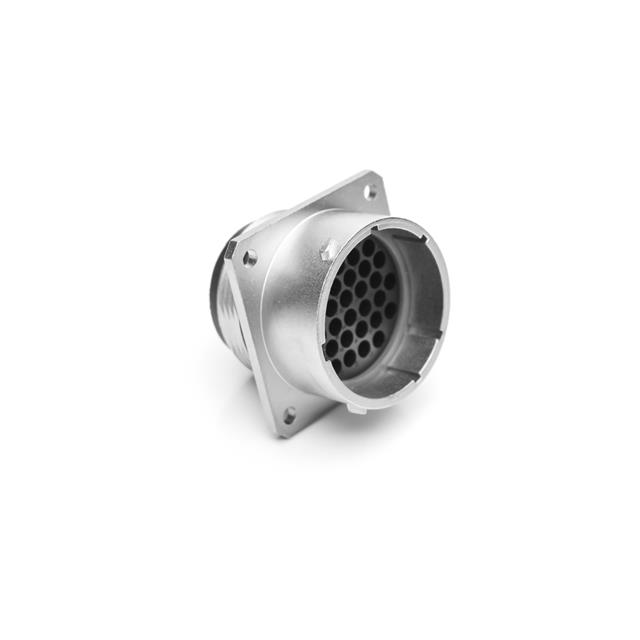

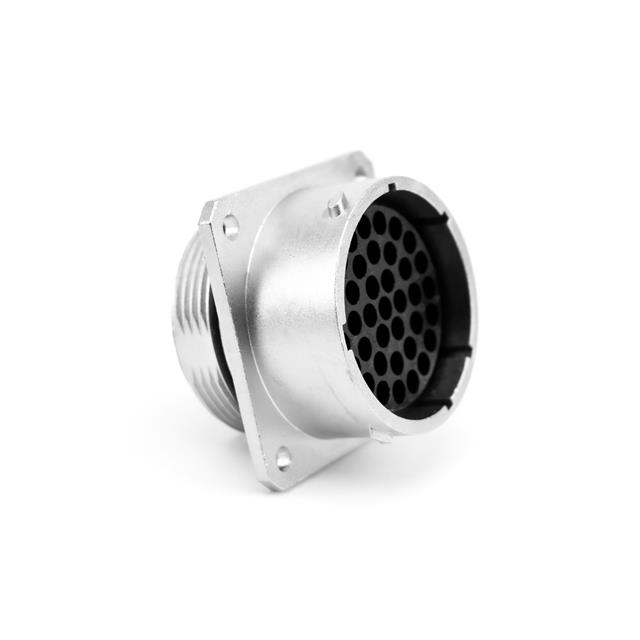

RECEPTACLE KIT, SQUARE FLANGE, 3
| Part | Mounting Feature | Note | Fastening Type | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) | Shell Finish | Ingress Protection Description | Ingress Protection IP Rating | Material Flammability Rating | Connector Type | Operating Temperature (Min) | Operating Temperature (Max) | Orientation | Contact Shape | Type | Housing Color | Contact Type | Shell Material | Shielding | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
McGill Microwave Systems | ||||||||||||||||||||
McGill Microwave Systems | ||||||||||||||||||||
 McGill Microwave Systems | Flange | Contacts Not Included | Bayonet Lock | 38 | 22 | Nickel | Dust Tight Waterproof | IP67 | UL94 V-0 | Receptacle Housing | -40 °C | 105 °C | N (Normal) | Circular | For Female Sockets | Silver | Crimp | Zinc Alloy | Shielded | Panel Mount |
 McGill Microwave Systems | Flange | Contacts Not Included | Bayonet Lock | 38 | 22 | Nickel | Dust Tight Waterproof | IP67 | UL94 V-0 | Receptacle Housing | -40 °C | 125 °C | N (Normal) | Circular | For Female Sockets | Silver | Crimp | Zinc Alloy | Shielded | Panel Mount |
 McGill Microwave Systems | Flange | Contacts Not Included | Bayonet Lock | 38 | 22 | Nickel | Dust Tight Waterproof | IP67 | UL94 V-0 | Receptacle Housing | -40 °C | 125 °C | N (Normal) | Circular | For Male Pins | Silver | Crimp | Zinc Alloy | Shielded | Panel Mount |
