TS3 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

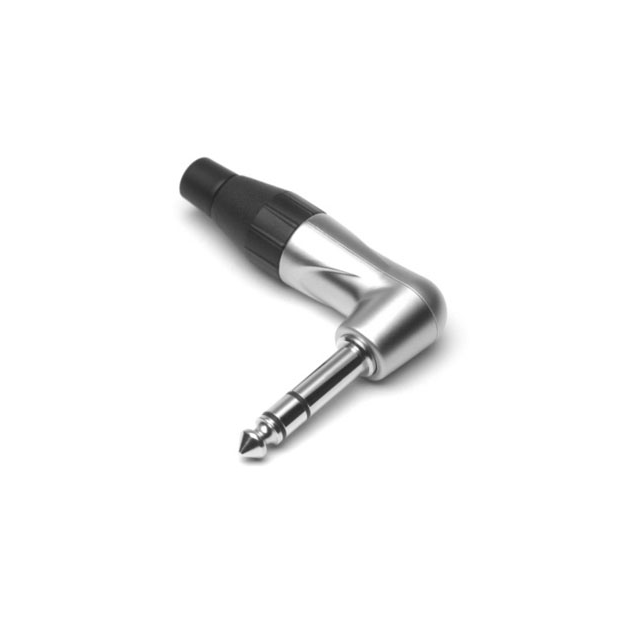

PROFESSIONAL RANGE 1/4" PHONE STEREO PLUG, RIGHT-ANGLE, THERMOPLASTIC BACKSHELL, BLACK FINISH, LARGE CABLE CLAMP, SATIN FINISH /
| Part | Body Color | Contact Material | Mating Length/Depth | Contact Material - Plating | Current Rating | Housing Material | Signal Lines | Gender | Mounting Type | Industry Recognized Mating Diameter (Headphone) | Shielding | Connector Type | Termination | Operating Temperature (Min) | Operating Temperature (Max) | Number of Contacts | Number of Conductors | Internal Switch(s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Silver | Brass | 1.19 in | Nickel | 10 A | Zinc Alloy | 3 Conductor Stereo TRS | Male | Free Hanging (In-Line) Right Angle | 6.35 mm | Unshielded | Phone Plug | Solder Eyelet(s) | -25 °C | 75 °C | 3 Contacts | 3 Conductors | Does Not Contain Switch |
 McGill Microwave Systems | Silver | Brass | Nickel | 10 A | Zinc Alloy | 3 Conductor Stereo TRS | Male | Free Hanging (In-Line) | 6.35 mm | Shielded | Phone Plug | Solder Eyelet(s) | -25 °C | 75 °C | 3 Contacts | 3 Conductors | Does Not Contain Switch |
