LMR-195 Series

Catalog

LMR-195 W/STRAND CTR CONDUC FOOT

Part	Operating Temperature (Min)	Operating Temperature (Max)	Shield Material	Conductor Material	Spool Size	Velocity of Propagation (VoP)	Dielectric Diameter	Dielectric Material	Shield Type	Jacket (Insulation) Diameter	Cable Type	Length	Jacket Color	Impedance	Jacket (Insulation) Material	Conductor Strand	Features	Usage	Length

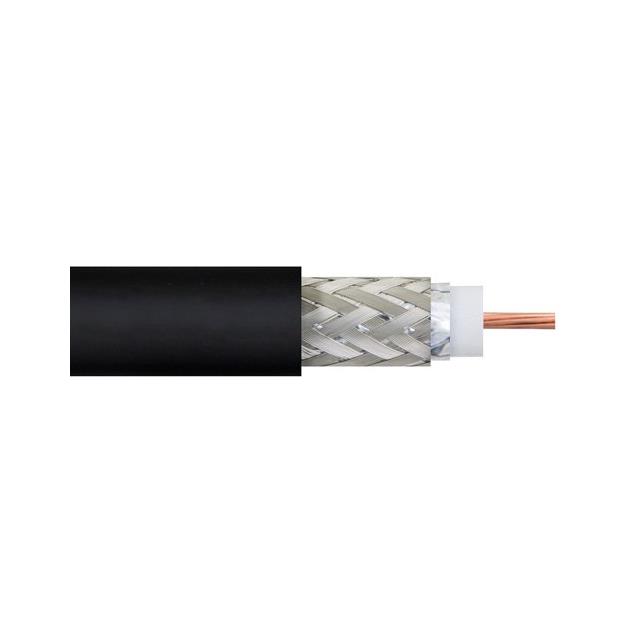

McGill Microwave Systems LMR-195-UF	-40 °C	85 °C	Aluminum Copper Tinned	Bare Copper	500 ft	74 %	0.11 in	Foam Polyethylene (FPE)	Braid Foil	0.195 in	Coaxial	Enter Number of Feet in Order Quantity	Black	50 Ohm	Thermoplastic Elastomer (TPE)
McGill Microwave Systems LMR-195-DB	-40 °C	85 °C	Aluminum Copper Tinned	Bare Copper	500 ft	80 %	0.11 in	Foam Polyethylene (FPE)	Braid	0.195 in	Coaxial	Enter Number of Feet in Order Quantity	Black	50 Ohm	Polyethylene (PE)	Solid	Direct Burial Watertight

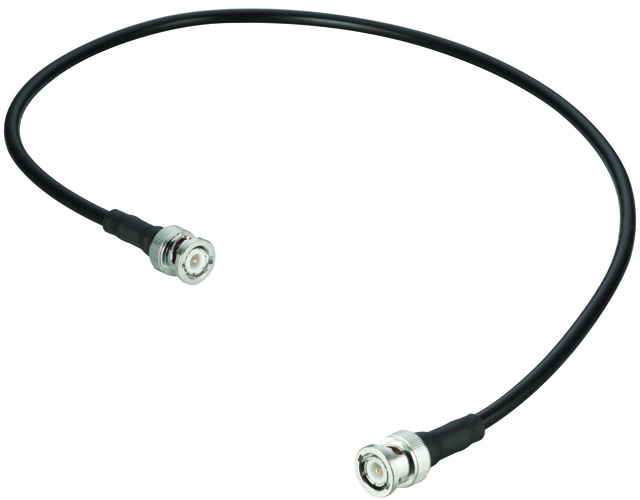

McGill Microwave Systems LMR-195-MA	-40 °C	85 °C	Aluminum Copper Tinned	Bare Copper		80 %	0.11 in	Foam Polyethylene (FPE)	Braid	0.195 in	Coaxial		Black	50 Ohm	Poly-Vinyl Chloride (PVC)	Solid		Antenna
McGill Microwave Systems LMR-195-FR-W	-40 °C	85 °C	Aluminum Copper Tinned	Bare Copper		80 %	0.11 in	Foam Polyethylene (FPE)	Braid	0.195 in	Coaxial Riser		White	50 Ohm	Polyethylene (PE) Riser	Solid	Fire Retardant
McGill Microwave Systems LMR-195-LLPX	-40 °C	125 °C	Aluminum Copper Tinned	Bare Copper		76 %	0.113 in	Polytetrafluoroethylene (PTFE)	Braid Foil	0.175 in	Coaxial Plenum		Red	50 Ohm	Fluoropolymer Plenum	Solid
McGill Microwave Systems LMR-195-FR-PVC	-40 °C	85 °C	Aluminum Copper Tinned	Bare Copper		80 %	0.11 in	Foam Polyethylene (FPE)	Braid	0.195 in	Coaxial Riser		Black	50 Ohm	Poly-Vinyl Chloride (PVC) Riser	Solid	Fire Retardant
McGill Microwave Systems LMR-195-PVC-W	-40 °C	85 °C	Aluminum Copper Tinned	Bare Copper		80 %	0.11 in	Foam Polyethylene (FPE)	Braid	0.195 in	Coaxial		White	50 Ohm	Poly-Vinyl Chloride (PVC)	Solid
McGill Microwave Systems LMR-195-FR	-40 °C	85 °C	Aluminum Copper Tinned	Bare Copper	500 ft	80 %	0.11 in	Foam Polyethylene (FPE)	Braid	0.195 in	Coaxial Riser	Enter Number of Feet in Order Quantity	Black	50 Ohm	Polyethylene (PE) Riser	Solid	Fire Retardant
McGill Microwave Systems LMR-195	-40 °C	85 °C	Aluminum Copper Tinned	Bare Copper		75 %	0.11 in	Foam Polyethylene (FPE)	Braid	0.195 in	Coaxial	Enter Number of Feet in Order Quantity	Black	50 Ohm	Polyethylene (PE)	Solid			10 ft 50 ft 100 ft 250 ft
McGill Microwave Systems LMR-195-PVC	-40 °C	85 °C	Aluminum Copper Tinned	Bare Copper		80 %	0.11 in	Foam Polyethylene (FPE)	Braid	0.195 in	Coaxial		Black	50 Ohm	Poly-Vinyl Chloride (PVC)	Solid
