5650090 Series

Catalog

STANDARD CARD EDGE CONNECTORS CONNECTOR ASSM DUAL POSITIONS .050

Part	Pitch	Features	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish	Card Type	Contact Material	Mounting Type	Number of Rows	Termination	Number of Bay	Number of Positions	Color	Gender	Card Thickness	Contact Finish Thickness	Read Out	Material - Insulation
TE Connectivity AMP Connectors 5650090-1	0.05 in	Board Guide	-55 °C	85 °C	Gold	Dual Edge Non Specified	Phosphor Bronze	Through Hole	2	Solder Staggered	45	11 112	Brown	Female	0.062 in	30 µin	Dual	Thermoplastic

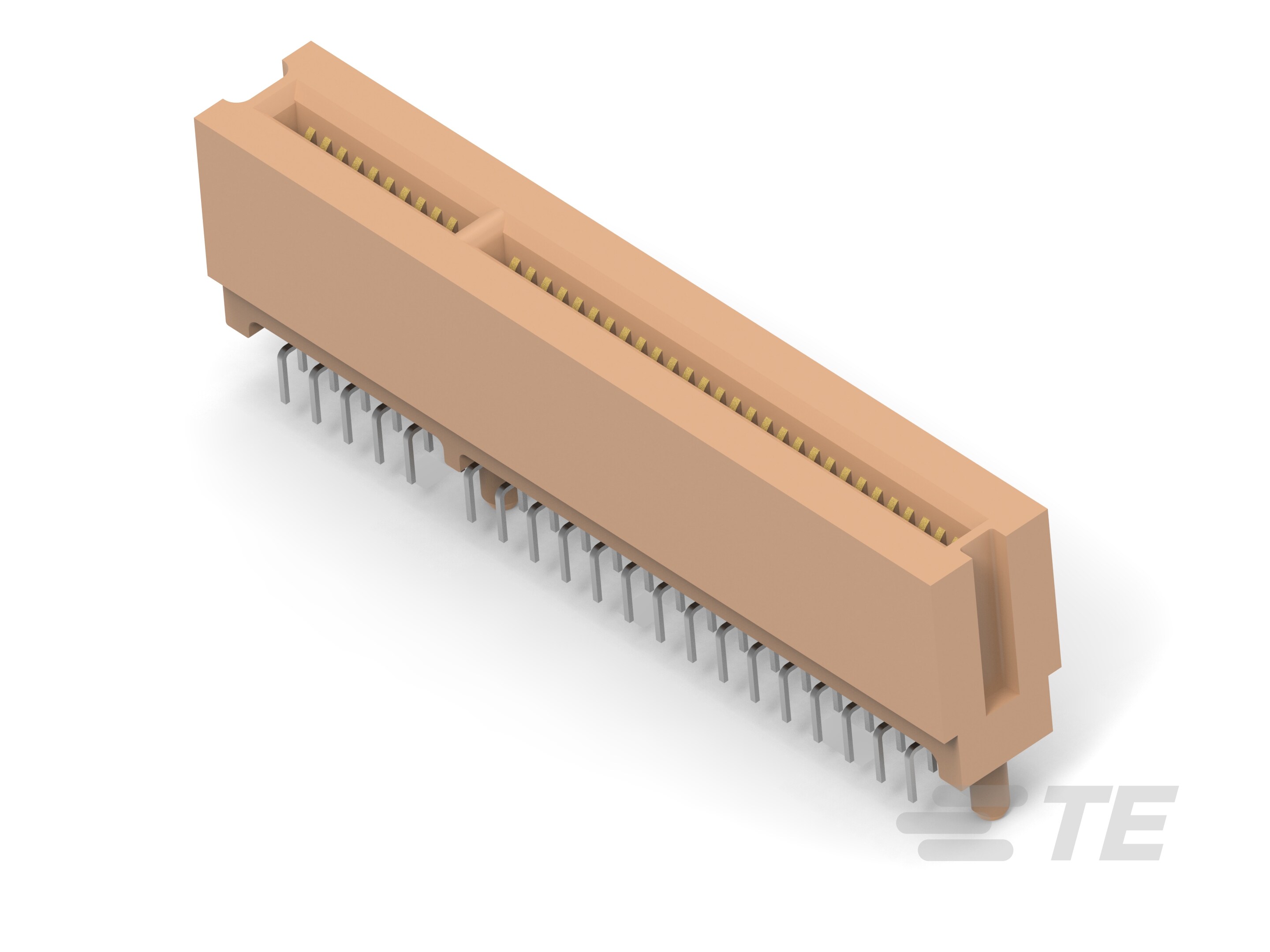

TE Connectivity AMP Connectors 5650090-3	0.05 in	Board Guide	-55 °C	85 °C	Gold	Dual Edge Non Specified	Phosphor Bronze	Through Hole	2	Solder Staggered	29	11 80	Brown	Female	0.062 in	30 µin	Dual	Thermoplastic

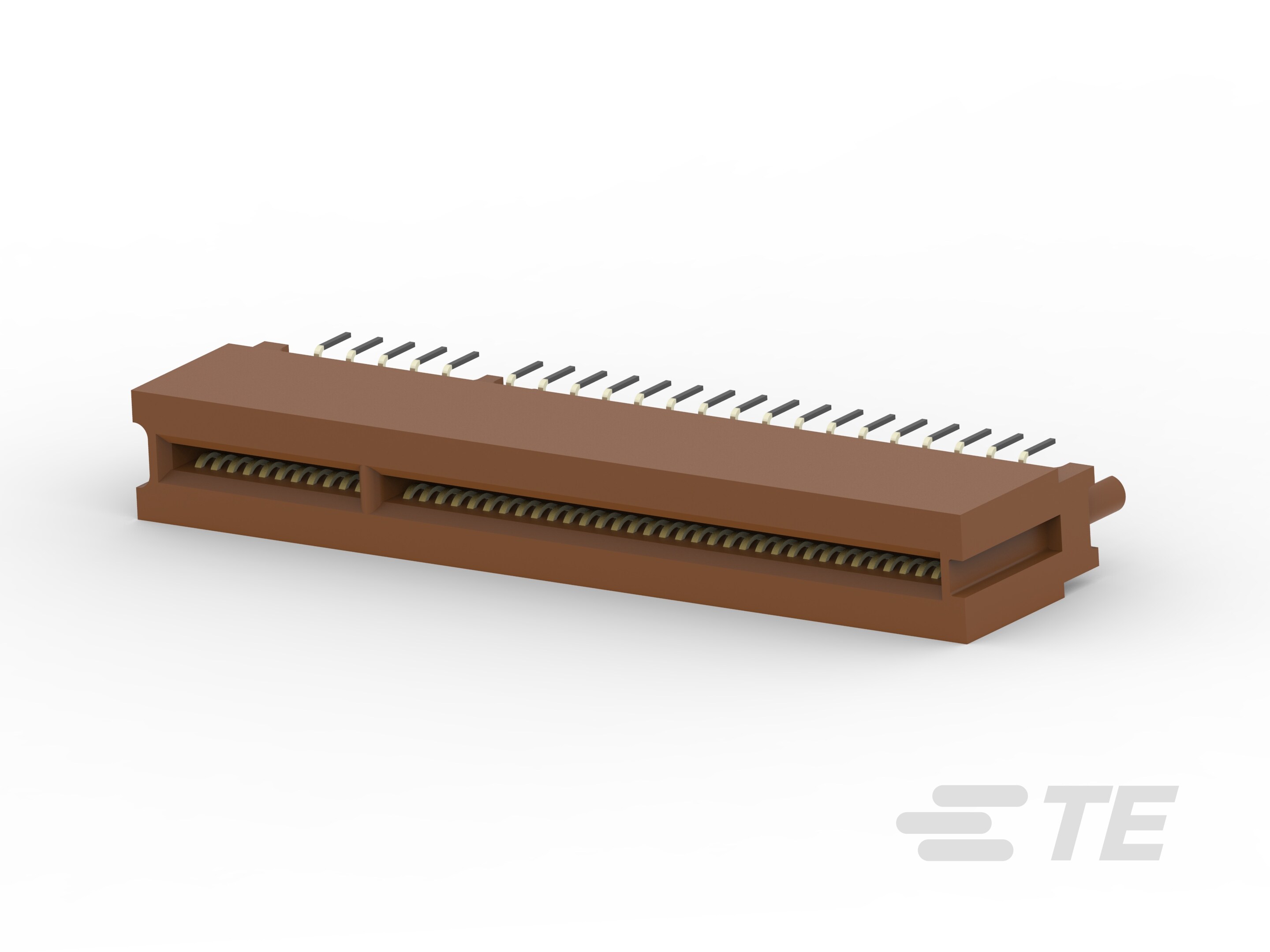

TE Connectivity AMP Connectors 5650090-2	0.05 in	Board Guide	-55 °C	85 °C	Gold	Dual Edge Non Specified	Phosphor Bronze	Through Hole	2	Solder Staggered	34	11 90	Brown	Female	0.062 in	30 µin	Dual	Thermoplastic
TE Connectivity AMP Connectors 5650090-7	0.05 in	Board Guide	-55 °C	85 °C	Gold	Dual Edge Non Specified	Phosphor Bronze	Through Hole	2	Solder Staggered	12	11 46	Brown	Female	0.062 in	30 µin	Dual	Thermoplastic
