RT0W01832 Series

Catalog

RECEPTACLE, SQUARE FLANGE, 32 PO

Part	Contact Type	Features	Orientation	Primary Material	Number of Positions	Shell Material	Shell Finish	Mounting Feature	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Housing Color	Type	Contact Size	Material Flammability Rating	Connector Type	Shielding	Insert Material	Contact Shape	Note	Operating Temperature (Min)	Operating Temperature (Max)	Includes	Includes Total Count	Voltage Rating	Voltage Rating (Type)	Termination	Current Rating	Contact Finish - Mating	Color	Contact Finish Thickness - Mating
McGill Microwave Systems RT0W01832SNHEC03	Crimp	Backshell	N (Normal)	Metal	32	Zinc Alloy	Nickel	Flange	Free Hanging (In-Line) Panel Mount	Dust Tight Waterproof	IP67	Bayonet Lock	32	18	Silver	For Female Sockets	20	UL94 V-0	Receptacle Housing	Unshielded

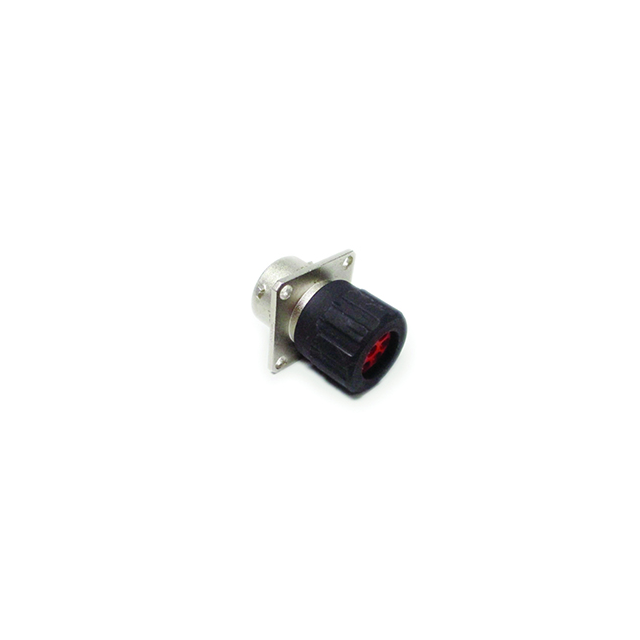

McGill Microwave Systems RT0W01832PNHEC	Crimp	Backshell	N (Normal)		32	Zinc Alloy	Nickel	Flange	Panel Mount	Dust Tight Waterproof	IP67	Bayonet Lock	32	18	Silver	For Male Pins	20	UL94 V-0	Receptacle Housing	Shielded	Thermoplastic	Circular	Contacts Not Included	-40 °C	105 °C
McGill Microwave Systems RT0W01832SNH03	Crimp		N (Normal)		32	Zinc Alloy	Nickel	Flange	Panel Mount	Dust Tight Waterproof	IP67	Bayonet Lock	32	18	Silver	For Female Sockets	20	UL94 V-0	Receptacle Housing	Shielded	Thermoplastic	Circular	Contacts Not Included	-40 °C	125 °C	Connector Gasket O-Ring	3 pcs
McGill Microwave Systems RT0W01832SNH-K			N (Normal)	Metal	32	Zinc Die Cast	Nickel	Flange	Panel Mount	Dust Tight Waterproof	IP67	Bayonet Lock	32	18					Female Sockets Receptacle					-40 °C	105 °C			150 VDC	DC	Crimp	7.5 A	Gold	Silver	Flash
McGill Microwave Systems RT0W01832PNHEC03
