Q-0D01N0 Series

Catalog

CBL ASSY BNC-MMCX PLUG-PLUG 3"

Part	Overall Impedance	1st Contact Gender	Cable Type	1st Connector	Length	2nd Connector Mounting Type	Frequency - Max	Features	1st Connector Mounting Type	Style	Color	2nd Contact Gender	2nd Connector	Length (ft)

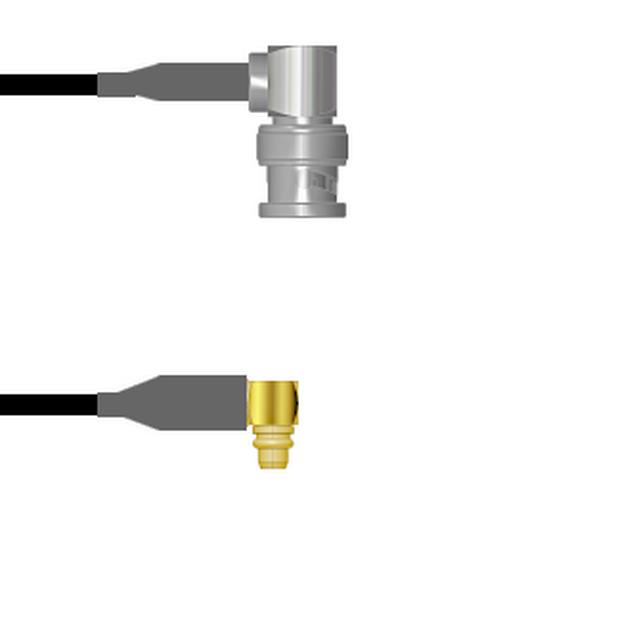

McGill Microwave Systems Q-0D01N0003003i	50 Ohms	Male	174 RG	BNC Plug Right Angle	3 "	Free Hanging (In-Line)	4 GHz	Shielded	Free Hanging (In-Line)	BNC MMCX	Black	Male	MMCX Plug Right Angle
McGill Microwave Systems Q-0D01N0005003i	50 Ohms	Male	316 RG	BNC Plug Right Angle	3 "	Free Hanging (In-Line)	4 GHz	Shielded	Free Hanging (In-Line)	BNC MMCX	Copper	Male	MMCX Plug Right Angle
McGill Microwave Systems Q-0D01N0003.75M	50 Ohms	Male	174 RG	BNC Plug Right Angle	29.53 in	Free Hanging (In-Line)	4 GHz	Shielded	Free Hanging (In-Line)	BNC MMCX	Black	Male	MMCX Plug Right Angle
McGill Microwave Systems Q-0D01N00030.5M	50 Ohms	Male	174 RG	BNC Plug Right Angle	19.69 in	Free Hanging (In-Line)	4 GHz	Shielded	Free Hanging (In-Line)	BNC MMCX	Black	Male	MMCX Plug Right Angle
McGill Microwave Systems Q-0D01N0003002M	50 Ohms	Male	174 RG	BNC Plug Right Angle		Free Hanging (In-Line)	4 GHz	Shielded	Free Hanging (In-Line)	BNC MMCX	Black	Male	MMCX Plug Right Angle	6.6 ft
McGill Microwave Systems Q-0D01N00031.5M	50 Ohms	Male	174 RG	BNC Plug Right Angle	59.1 in	Free Hanging (In-Line)	4 GHz	Shielded	Free Hanging (In-Line)	BNC MMCX	Black	Male	MMCX Plug Right Angle	4.9 ft
McGill Microwave Systems Q-0D01N0005002M	50 Ohms	Male	316 RG	BNC Plug Right Angle		Free Hanging (In-Line)	4 GHz	Shielded	Free Hanging (In-Line)	BNC MMCX	Copper	Male	MMCX Plug Right Angle	6.6 ft
McGill Microwave Systems Q-0D01N0005060i	50 Ohms	Male	316 RG	BNC Plug Right Angle	1524 mm	Free Hanging (In-Line)	4 GHz	Shielded	Free Hanging (In-Line)	BNC MMCX	Copper	Male	MMCX Plug Right Angle	5 ft
McGill Microwave Systems Q-0D01N0005108i	50 Ohms	Male	316 RG	BNC Plug Right Angle	9 ft	Free Hanging (In-Line)	4 GHz	Shielded	Free Hanging (In-Line)	BNC MMCX	Copper	Male	MMCX Plug Right Angle
McGill Microwave Systems Q-0D01N0003.25M	50 Ohms	Male	174 RG	BNC Plug Right Angle	9.843 in	Free Hanging (In-Line)	4 GHz	Shielded	Free Hanging (In-Line)	BNC MMCX	Black	Male	MMCX Plug Right Angle
