AD9753 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

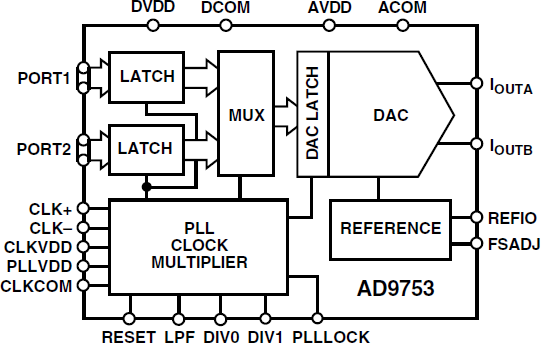

12-BIT, 300 MSPS HIGH SPEED TXDAC+®D/A CONVERTER
| Part | Architecture | Voltage - Supply, Digital (Min) | Voltage - Supply, Digital (Max) | Voltage - Supply, Analog (Max) | Voltage - Supply, Analog (Min) | Output Type | Package Length | Package Name | Package Width | Data Interface | Operating Temperature (Min) | Operating Temperature (Max) | Number of D/A Converters | DNL (LSB) Tolerance | INL (LSB) Tolerance | Package / Case | Settling Time (Typical) | Reference Type | Number of Bits | Differential Output | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Current Source | 3 V | 3.6 V | 3.6 V | 3 V | Current - Unbuffered | 7 mm | 48-LQFP | 7 mm | Parallel | -40 °C | 85 °C | 1 count | 0.4 LSB | 0.5 LSB | 48-LQFP | 11 ns | External Internal | 12 bits | Yes | Surface Mount |
Analog Devices Inc./Maxim Integrated | Current Source | 3 V | 3.6 V | 3.6 V | 3 V | Current - Unbuffered | 7 mm | 48-LQFP | 7 mm | Parallel | -40 °C | 85 °C | 1 count | 0.4 LSB | 0.5 LSB | 48-LQFP | 11 ns | External Internal | 12 bits | Yes | Surface Mount |
