CLX6F Series

Catalog

FULL RANK, TAPE & REEL

Part	Configuration	Color	Lens Style	Package / Case	Voltage - Forward (Vf) (Typ)	Current - Test Count	Current - Test	Millicandela Rating	Features	Mounting Type	Package Name	Height (Max)	Wavelength - Dominant	Size / Dimension Width	Size / Dimension Length	Current - Test (Red)	Current - Test Colors	Current - Test (Green)	Current - Test (Blue)	Wavelength - Dominant (Red)	Wavelength - Dominant Color	Wavelength - Dominant (Green)	Wavelength - Dominant (Blue)	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Red)	Voltage - Forward (Vf) (Typ) (Blue)	Voltage - Forward (Vf) (Typ) (Green)	Millicandela Rating Colors	Millicandela Rating (Green)	Millicandela Rating (Blue)	Millicandela Rating (Red)	Lens Size
CreeLED, Inc. CLX6F-RKB-CSTBB3	Standard	Red	Flat Top Square	6-SMD J-Lead	2.1 V	3	0 A 20 mA	2895 mcd	IPx8	Surface Mount	6-PLCC	2.9 mm	622 nm	3.4 mm	3.4 mm

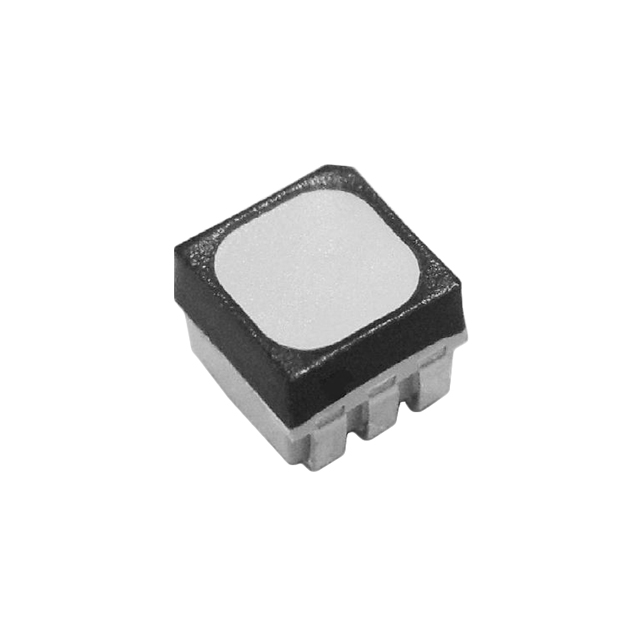

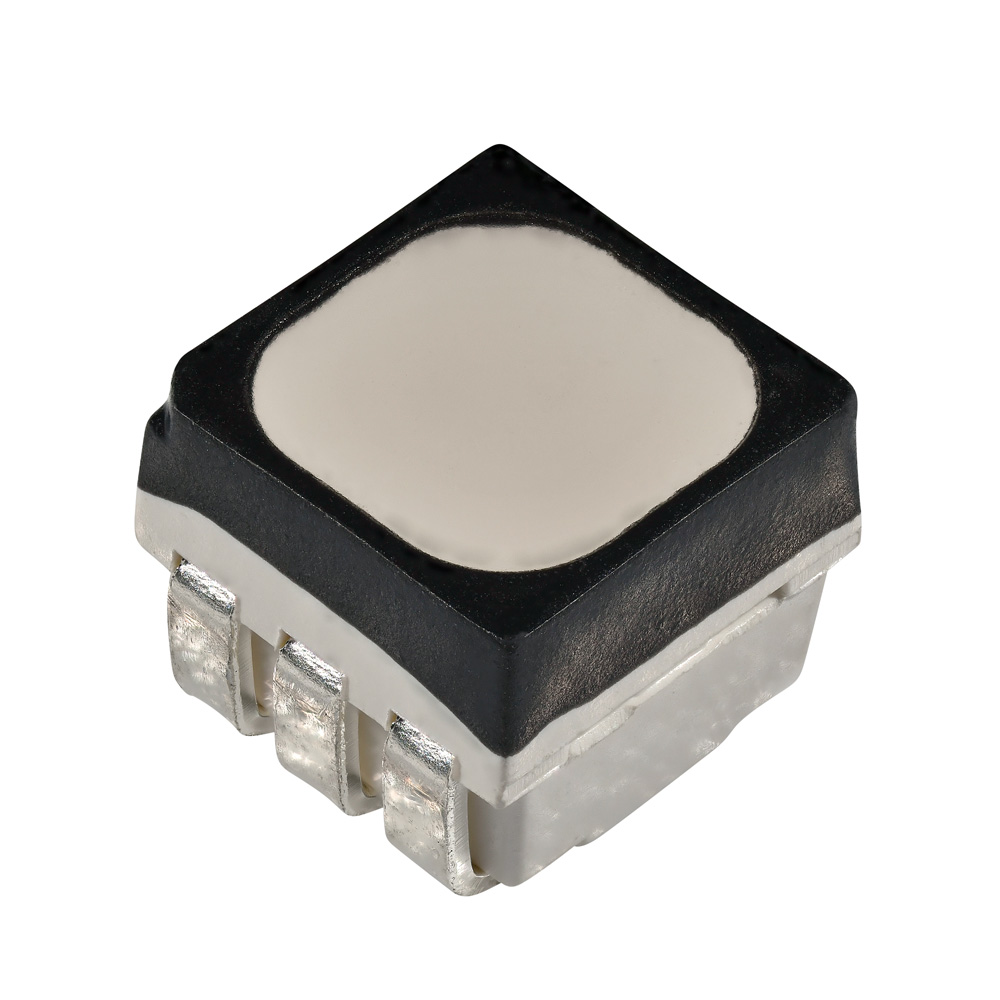

CreeLED, Inc. CLX6F-FKC-CNP1ST1E1BB7D3D3	Independent	Blue (RGB) Green Red	Flat Top Square	6-SMD J-Lead					IPx8	Surface Mount	6-PLCC	2.9 mm		3.4 mm	3.4 mm	15 mA	Blue Green Red	10 mA	10 mA	622 nm	Blue Green Red	530 nm	470 nm	Blue Green Red	2.1 V	3 V	2.7 V	Blue Green Red	1350 mcd	240 mcd	750 mcd
CreeLED, Inc. CLX6F-WKW-V1R2E73	Independent	Warm White	Flat Top Square	6-SMD J-Lead	3.3 V		35 mA	10500 mcd		Surface Mount	6-PLCC	2.9 mm		3.4 mm	3.4 mm																	3.4 mm
CreeLED, Inc. CLX6F-FKC-CKNNQDGBB7A363	Independent	Blue (RGB) Green Red	Flat Top Square	6-SMD J-Lead					IPx8	Surface Mount	6-PLCC	2.9 mm		3.4 mm	3.4 mm	15 mA	Blue Green Red	10 mA	10 mA	622 nm	Blue Green Red	530 nm	470 nm	Blue Green Red	2.1 V	3 V	2.7 V	Blue Green Red	1350 mcd	240 mcd	750 mcd
CreeLED, Inc. CLX6F-FKC-CKNNQDGBB7A363	Independent	Blue (RGB) Green Red	Flat Top Square	6-SMD J-Lead					IPx8	Surface Mount	6-PLCC	2.9 mm		3.4 mm	3.4 mm	15 mA	Blue Green Red	10 mA	10 mA	622 nm	Blue Green Red	530 nm	470 nm	Blue Green Red	2.1 V	3 V	2.7 V	Blue Green Red	1350 mcd	240 mcd	750 mcd
CreeLED, Inc. CLX6F-WKW-V1R2E23	Independent	Cool White	Flat Top Square	6-SMD J-Lead	3.3 V		35 mA	10500 mcd		Surface Mount	6-PLCC	2.9 mm		3.4 mm	3.4 mm																	3.4 mm
CreeLED, Inc. CLX6F-FKC-CK1N1D1BB7D3D3	Independent	Blue (RGB) Green Red	Flat Top Square	6-SMD J-Lead					IPx8	Surface Mount	6-PLCC	2.9 mm		3.4 mm	3.4 mm	15 mA	Blue Green Red	10 mA	10 mA	622 nm	Blue Green Red	530 nm	470 nm	Blue Green Red	2.1 V	3 V	2.7 V	Blue Green Red	1350 mcd	240 mcd	750 mcd
CreeLED, Inc. CLX6F-AKB-CU1FS3	Standard	Amber	Flat Top Square	6-SMD J-Lead	2.2 V	3	0 A 50 mA	4575 mcd	IPx8	Surface Mount	6-PLCC	2.9 mm	593 nm	3.4 mm	3.4 mm
CreeLED, Inc. CLX6F-FKC-CK1N1D1BB7D3D3	Independent	Blue (RGB) Green Red	Flat Top Square	6-SMD J-Lead					IPx8	Surface Mount	6-PLCC	2.9 mm		3.4 mm	3.4 mm	15 mA	Blue Green Red	10 mA	10 mA	622 nm	Blue Green Red	530 nm	470 nm	Blue Green Red	2.1 V	3 V	2.7 V	Blue Green Red	1350 mcd	240 mcd	750 mcd
CreeLED, Inc. CLX6F-AKB-CUWFH3	Independent	Amber	Flat Top Square	6-SMD J-Lead	2.2 V		50 mA	5320 mcd	IPx8	Surface Mount	6-PLCC	2.9 mm	593 nm	3.4 mm	3.4 mm
