AD8494 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
BOARD MOUNT TEMPERATURE SENSORS FULL J-TYPE RANGE 0 TO 50 THERMOCOUPLE AMPLIFIER W/COLD JUNCTION COMPENSATION
| Part | Current - Supply | Package Width | Package Name | Package Length | Mounting Type | Input Type | Operating Temperature (Min) | Operating Temperature (Max) | Type | Output Type | -3db Bandwidth | Current - Output / Channel | Supplied Contents | Board Type | Current - Supply (Main IC) | Supply Configuration | Voltage - Supply (Single) Maximum | Voltage - Supply (Single) Minimum | Voltage - Supply (Dual) Maximum (Magnitude) | Voltage - Supply (Dual) Minimum (Magnitude) | Contents | Utilized IC / Part | Channels per IC (Single) | Channels per IC (Type) | Channels per IC (Count) | Amplifier Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 250 µA | 3 mm | 8-MSOP 8-TSSOP 8-MSOP | 0.118 in | Surface Mount | Differential | 0 °C | 50 °C | Thermocouple Amplifier | Analog | ||||||||||||||||

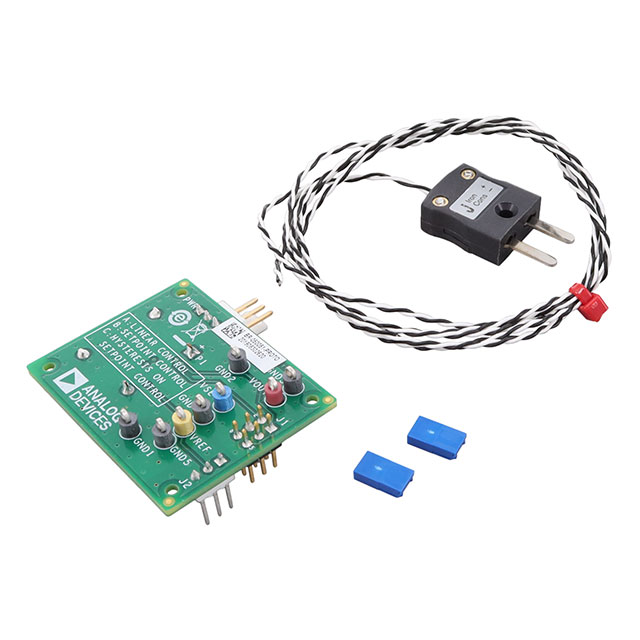

 Analog Devices Inc./Maxim Integrated | Single-Ended | 30 kHz | 7 mA | Board(s) | Fully Populated | 0.00018 µA | Dual Single | 36 V | 2.7 V | 18 V | 2.7 V | Board | AD8494 | 1 | Single | 1 | Thermocouple | |||||||||
Analog Devices Inc./Maxim Integrated | 250 µA | 3 mm | 8-MSOP 8-TSSOP 8-MSOP | 0.118 in | Surface Mount | Differential | 0 °C | 50 °C | Thermocouple Amplifier | Analog | ||||||||||||||||
Analog Devices Inc./Maxim Integrated | 250 µA | 3 mm | 8-MSOP 8-TSSOP 8-MSOP | 0.118 in | Surface Mount | Differential | 0 °C | 50 °C | Thermocouple Amplifier | Analog | ||||||||||||||||
Analog Devices Inc./Maxim Integrated | 250 µA | 3 mm | 8-MSOP 8-TSSOP 8-MSOP | 0.118 in | Surface Mount | Differential | 0 °C | 50 °C | Thermocouple Amplifier | Analog |
