ELFB042 Series

Catalog

TERM BLOCK HDR 4POS 5.08MM

Part	Operating Temperature	Color	Number of Positions	Positions Per Level	Pitch	Voltage - UL	Termination Style	Mounting Type	Features	Contact Mating Finish	Current - UL	Type	Header Orientation Angle	Header Orientation	Number of Levels	Material Flammability Rating	Contact Tail Length	Contact Material	Housing Material	Insulation Height
McGill Microwave Systems ELFB0423G	125 °C	Green	4	4	5.08 mm	300 V	Solder	Through Hole	Interlocking (Side) Retention Latches	Tin	15 A	Female Sockets Header	90 °	Right Angle	1

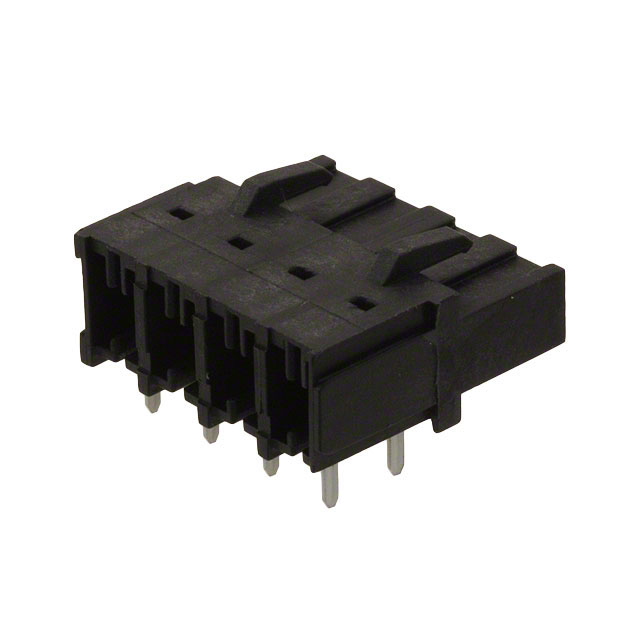

McGill Microwave Systems ELFB04230	125 °C	Black	4	4	5.08 mm	300 V	Solder	Through Hole	Interlocking (Side) Retention Latches	Tin	15 A	Female Sockets Header	90 °	Right Angle	1
McGill Microwave Systems ELFB0423G	125 °C	Green	4	4	5.08 mm	300 V	Solder	Through Hole	Interlocking (Side) Retention Latches	Tin	15 A	Female Sockets Header	90 °	Right Angle	1	UL94 V-0	0.123 in	Phosphor Bronze	Nylon 4/6 PA46 Polyamide	0.391 in
McGill Microwave Systems ELFB04230	125 °C	Black	4	4	5.08 mm	300 V	Solder	Through Hole	Interlocking (Side) Retention Latches	Tin	15 A	Female Sockets Header	90 °	Right Angle	1	UL94 V-0	0.123 in	Phosphor Bronze	Nylon 4/6 PA46 Polyamide	0.391 in
