AD-N10 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
RF / COAXIAL ADAPTER, N, JACK, NEX10, PLUG, STRAIGHT ADAPTER, 50 OHM
| Part | Convert From (Adapter End) | Mounting Type | Fastening Type | Center Gender | Convert To (Adapter End) Type | Convert To (Adapter End) Gender | Frequency - Max | Conversion Type | Center Contact Plating | Impedance | Style | Adapter Type | Adapter Series | Body Finish | Body Material | Dielectric Material | Operating Temperature (Min) | Operating Temperature (Max) | Center Contact Material | Mating Cycles (Min) | Mating Cycles (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Male Pin NEX10 Plug | Free Hanging (In-Line) | Threaded | Female Male | N Jack | Female Socket | 6000 MHz | Between Series | Silver | 50 Ohm | Straight | Plug to Jack | NEX10 to N | Tin | Brass | Polytetrafluoroethylene (PTFE) | -40 °C | 85 °C | Copper Alloy | 100 cycles | 500 cycles |

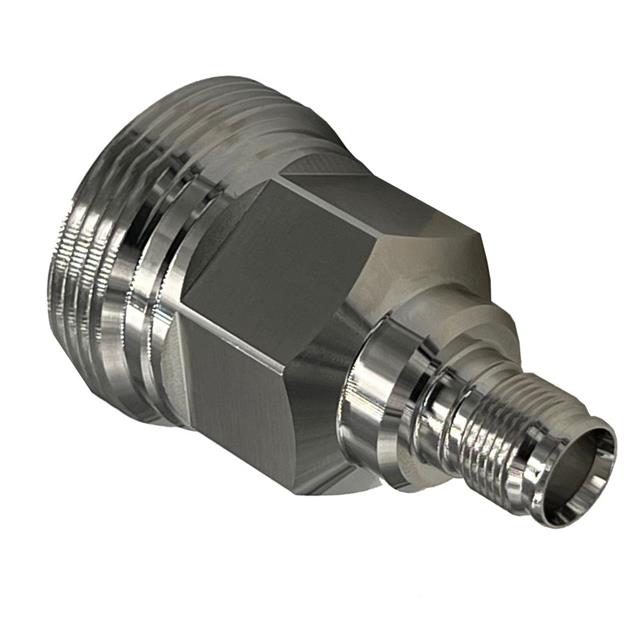

 McGill Microwave Systems | 16 Jack 7 Female Socket | Free Hanging (In-Line) | Snap-On Threaded | Female | NEX10 Jack | Female Socket | 6000 MHz | Between Series | 50 Ohm | Straight | Jack to Jack | 7/16 to NEX10 | Brass | Polytetrafluoroethylene (PTFE) | -40 °C | 85 °C | Beryllium Copper | 100 cycles | 500 cycles |
