Q-0D00P0 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CBL ASSY BNC-HDBNC PL-JK 29.53"
| Part | 1st Connector | Features | 2nd Connector | Length | Style | 2nd Contact Gender | 1st Connector Mounting Type | 1st Contact Gender | Overall Impedance | 2nd Connector Mounting Feature | Frequency - Max | 2nd Connector Mounting Type | Color | Cable Type | Length (ft) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

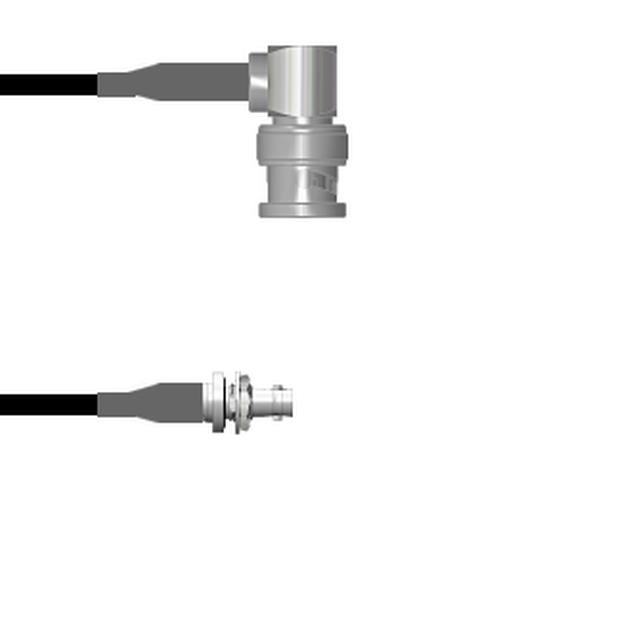

 McGill Microwave Systems | BNC Plug Right Angle | Shielded | HD-BNC Jack | 29.53 in | BNC HD-BNC | Female | Free Hanging (In-Line) | Male | 50 Ohms | Bulkhead - Front Side Nut | 4 GHz | Panel Mount | Black | 174 RG | |

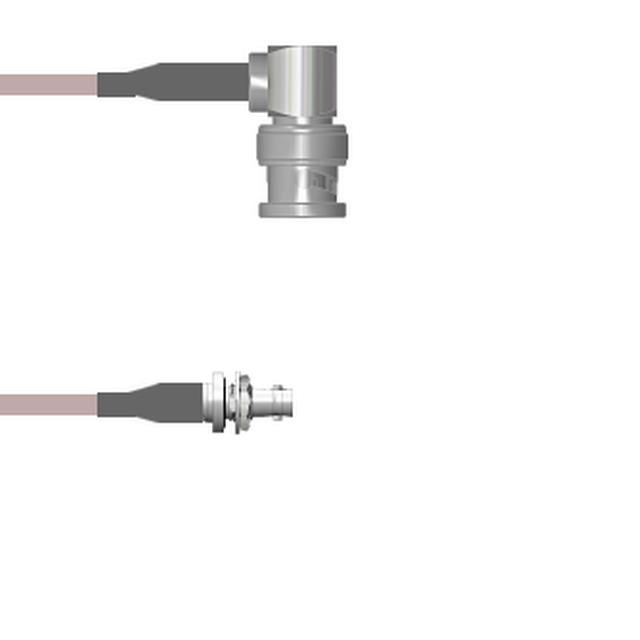

 McGill Microwave Systems | BNC Plug Right Angle | Shielded | HD-BNC Jack | 118.1 in | BNC HD-BNC | Female | Free Hanging (In-Line) | Male | 50 Ohms | Bulkhead - Front Side Nut | 4 GHz | Panel Mount | Copper | 316 RG | |
McGill Microwave Systems | BNC Plug Right Angle | Shielded | HD-BNC Jack | 24 in | BNC HD-BNC | Female | Free Hanging (In-Line) | Male | 50 Ohms | Bulkhead - Front Side Nut | 4 GHz | Panel Mount | Black | 174 RG | |
McGill Microwave Systems | BNC Plug Right Angle | Shielded | HD-BNC Jack | 48 in | BNC HD-BNC | Female | Free Hanging (In-Line) | Male | 50 Ohms | Bulkhead - Front Side Nut | 4 GHz | Panel Mount | Black | 174 RG | |
McGill Microwave Systems | BNC Plug Right Angle | Shielded | HD-BNC Jack | 3 " | BNC HD-BNC | Female | Free Hanging (In-Line) | Male | 50 Ohms | Bulkhead - Front Side Nut | 4 GHz | Panel Mount | Black | 174 RG | |
McGill Microwave Systems | BNC Plug Right Angle | Shielded | HD-BNC Jack | 9 ft | BNC HD-BNC | Female | Free Hanging (In-Line) | Male | 50 Ohms | Bulkhead - Front Side Nut | 4 GHz | Panel Mount | Black | 174 RG | |
McGill Microwave Systems | BNC Plug Right Angle | Shielded | HD-BNC Jack | 19.69 in | BNC HD-BNC | Female | Free Hanging (In-Line) | Male | 50 Ohms | Bulkhead - Front Side Nut | 4 GHz | Panel Mount | Copper | 316 RG | |
McGill Microwave Systems | BNC Plug Right Angle | Shielded | HD-BNC Jack | 0.5 ft | BNC HD-BNC | Female | Free Hanging (In-Line) | Male | 50 Ohms | Bulkhead - Front Side Nut | 4 GHz | Panel Mount | Black | 174 RG | |
McGill Microwave Systems | BNC Plug Right Angle | Shielded | HD-BNC Jack | 72 in | BNC HD-BNC | Female | Free Hanging (In-Line) | Male | 50 Ohms | Bulkhead - Front Side Nut | 4 GHz | Panel Mount | Black | 174 RG | |
McGill Microwave Systems | BNC Plug Right Angle | Shielded | HD-BNC Jack | BNC HD-BNC | Female | Free Hanging (In-Line) | Male | 50 Ohms | Bulkhead - Front Side Nut | 4 GHz | Panel Mount | Black | 174 RG | 6.6 ft |
