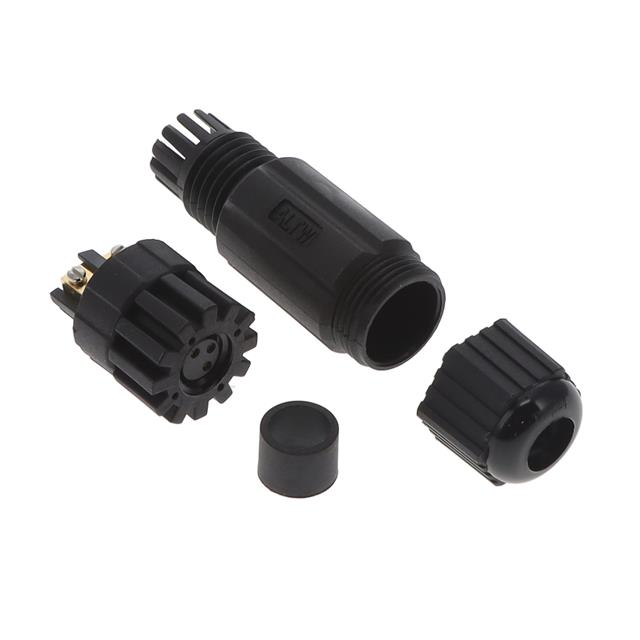

8P-03BFFB Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
M SERIES, M8, 3A, 03 PINS, FIELD
| Part | Cable Opening (Min) | Cable Opening (Max) | Color | Fastening Type | Insert Material | Voltage Rating (AC) | Voltage Rating (DC) | Shielding | Operating Temperature (Min) | Operating Temperature (Max) | Shell Material | Shell Finish | Shell Size - Insert | Ingress Protection Description | Ingress Protection IP Rating | Number of Positions | Mounting Type | Connector Type | Contact Finish - Mating | Contact Material | Termination | Orientation | Current Rating | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 0.177 in | 0.256 in | Silver | Threaded | Glass Filled Nylon PA Polyamide | 50 VAC | 60 VDC | Unshielded | -40 °C | 105 °C | Zinc Alloy | Nickel | M08 | Dust Tight Waterproof | IP67 | 3 | Free Hanging (In-Line) | Female Sockets Plug | Gold | Copper Alloy | Screw | A | 3 A | Metal |
