ADMV4420 Series

Catalog

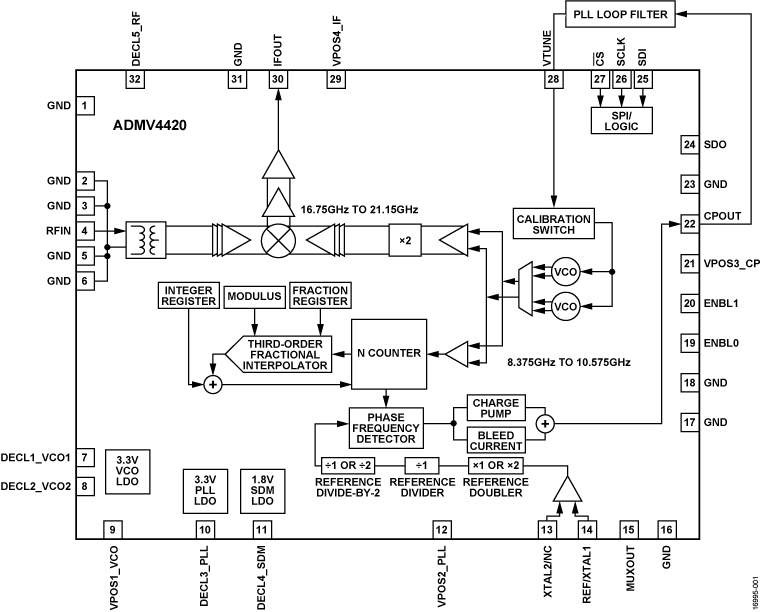

K BAND DOWNCONVERTER WITH INTEGRATED FRACTIONAL-N PLL AND VCO

Part	Secondary Attributes	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Gain	Package Length	Package Name	Package Width	Noise Figure	Package / Case	RF Type	Mounting Type	Frequency (Min)	Frequency (Max)	Number of Mixers	Supplied Contents	For Use With/Related Products	Utilized IC / Part	Type	Contents
Analog Devices Inc./Maxim Integrated ADMV4420ACPZ-RL7	Down Converter	5.25 V	4.75 V	36 dB	5 mm	32-LFCSP	5 mm	7 dB	32-WFQFN Exposed Pad CSP	General Purpose	Surface Mount	16.95 GHz	22.05 GHz	1
Analog Devices Inc./Maxim Integrated ADMV4420-EVALZ												16.95 GHz	22.05 GHz		Board(s)	ADMV4420	ADMV4420	Downconverter	Board
Analog Devices Inc./Maxim Integrated ADMV4420ACPZ	Down Converter	5.25 V	4.75 V	36 dB	5 mm	32-LFCSP	5 mm	7 dB	32-WFQFN Exposed Pad CSP	General Purpose	Surface Mount	16.95 GHz	22.05 GHz	1
Analog Devices Inc./Maxim Integrated ADMV4420ACPZ-R2	Down Converter	5.25 V	4.75 V	36 dB	5 mm	32-LFCSP	5 mm	7 dB	32-WFQFN Exposed Pad CSP	General Purpose	Surface Mount	16.95 GHz	22.05 GHz	1
