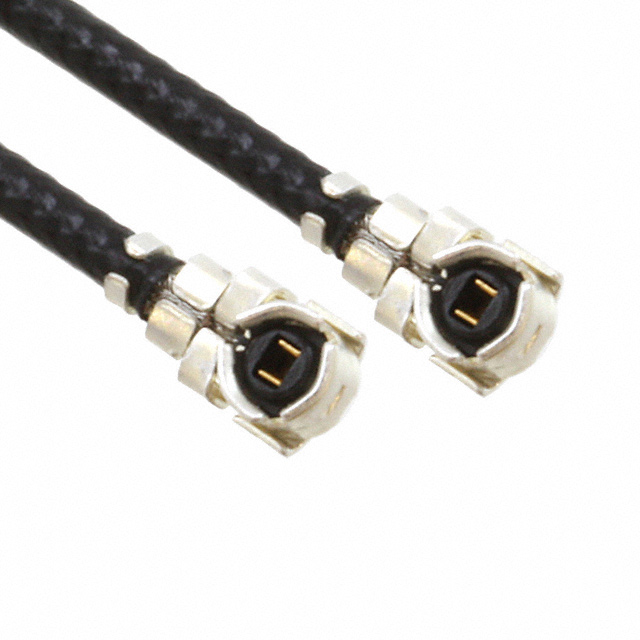

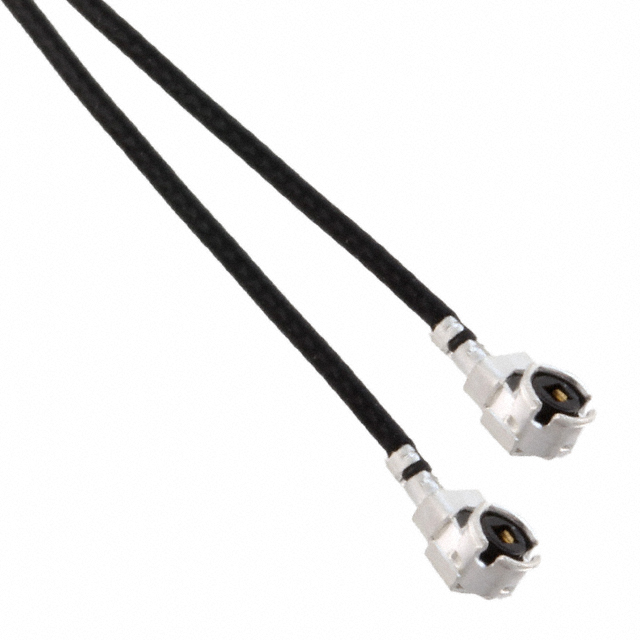

AMC Series

Catalog

RF CABLE ASSEMBLIES LP AMC RA-LP AMC RA .81MM MICRO-CBL500MM

Part	1st Connector Mounting Type	1st Connector	2nd Connector Mounting Type	2nd Connector	Frequency - Max	Color	Overall Impedance	Features	Style	Length	2nd Contact Gender	Cable Type Size	Cable Type	Cable Outer Diameter	1st Contact Gender	Operating Temperature (Max)	Operating Temperature (Min)	Cable Impedance
McGill Microwave Systems A-1PL-081-500B2	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	6000 MHz	Black	50 Ohms	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	19.69 in	Female	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	Female	90 °C	-40 °C
McGill Microwave Systems A-1PA-132-180B2	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	6000 MHz	Black	50 Ohms	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	7.087 in	Female	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm	Female	90 °C	-40 °C
McGill Microwave Systems A-1PA-132-305B2	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	6000 MHz	Black	50 Ohms	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	12 in	Female	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm	Female	90 °C	-40 °C
McGill Microwave Systems A-1PL-081-250B2	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	6000 MHz	Black	50 Ohms	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	9.843 in	Female	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	Female	90 °C	-40 °C
McGill Microwave Systems A-1PA-081-200B2	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	6000 MHz	Black	50 Ohms	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	7.874 in	Female	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	Female	90 °C	-40 °C
McGill Microwave Systems A-1PA-178-050N2	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	3 GHz	Natural	50 Ohms	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	1.969 in	Female		178 RG		Female	90 °C	-40 °C	50 Ohms
McGill Microwave Systems A-1PL-081-300B2	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	6000 MHz	Black	50 Ohms	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	11.811 in	Female	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	Female	90 °C	-40 °C
McGill Microwave Systems A-1PA-132-500B2	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	6000 MHz	Black	50 Ohms	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	19.69 in	Female	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm	Female	90 °C	-40 °C
McGill Microwave Systems A-1PA-081-250B2	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	6000 MHz	Black	50 Ohms	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	9.843 in	Female	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	Female	90 °C	-40 °C
McGill Microwave Systems A-1PA-132-100G2	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	Free Hanging (In-Line)	AMC Plug Right Angle U.FL (UMCC)	6000 MHz	Gray	50 Ohms	Shielded	AMC AMC to U.FL (UMCC) U.FL (UMCC)	3.937 in	Female	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm	Female	90 °C	-40 °C
