RTS6BS12 Series

Catalog

CONN PLG HSG MALE 3POS INLINE

Part	Shell Size - Insert Length	Shell Size - Insert Width	Contact Size	Fastening Type	Shell Material	Orientation	Material Flammability Rating	Mounting Type	Contact Type	Number of Positions	Features	Shielding	Connector Type	Housing Color	Ingress Protection IP Rating	Ingress Protection Description	Type	Contact Shape	Note	Includes	Includes Total Count	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Position Types
McGill Microwave Systems RTS6BS12N3PHEC03	12 mm	3 mm	16 S	Bayonet Lock	Thermoplastic	N (Normal)	UL94 V-0	Free Hanging (In-Line)	Crimp	3	Backshell Coupling Nut	Unshielded	Plug Housing	Black	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Circular	Contacts Not Included	Backshell Connector O-Ring Ring Seal Washer	6 pcs	125 °C	-40 °C	Thermoplastic

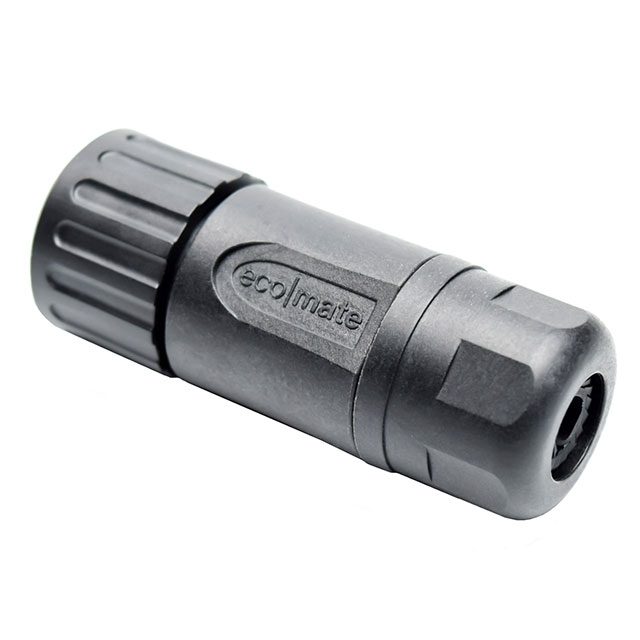

McGill Microwave Systems RTS6BS12N2P03	12 mm	2 mm	2.5 mm 20	Bayonet Lock	Thermoplastic	N (Normal)	UL94 V-0	Free Hanging (In-Line)	Crimp	4	Backshell Coupling Nut	Unshielded	Plug Housing	Black	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Circular	Contacts Not Included			125 °C	-40 °C	Thermoplastic
McGill Microwave Systems RTS6BS12N2S03	12 mm	2 mm	2.5 mm 20	Bayonet Lock	Thermoplastic	N (Normal)	UL94 V-0	Free Hanging (In-Line)	Crimp	4	Backshell Coupling Nut	Unshielded	Plug Housing	Black	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets	Circular	Contacts Not Included			125 °C	-40 °C	Thermoplastic
McGill Microwave Systems RTS6BS12N10P03	12 mm	10 mm	20	Bayonet Lock	Thermoplastic	N (Normal)	UL94 V-0	Free Hanging (In-Line)	Crimp	10	Backshell Coupling Nut	Unshielded	Plug Housing	Black	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Circular	Contacts Not Included			125 °C	-40 °C	Thermoplastic
McGill Microwave Systems RTS6BS12N4P03	12 mm	4 mm	16 S	Bayonet Lock	Thermoplastic	N (Normal)	UL94 V-0	Free Hanging (In-Line)	Crimp	4	Backshell Coupling Nut	Unshielded	Plug Housing	Black	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Circular	Contacts Not Included			125 °C	-40 °C	Thermoplastic	PE

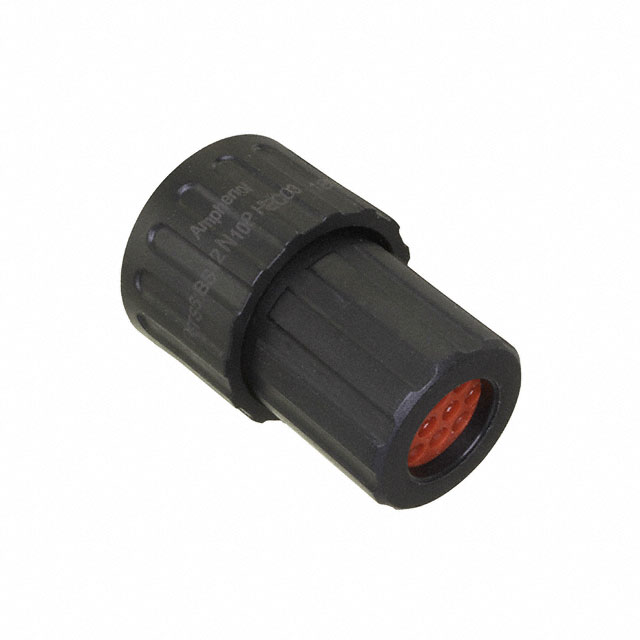

McGill Microwave Systems RTS6BS12N10PHEC03	12 mm	10 mm	20	Bayonet Lock	Thermoplastic	N (Normal)	UL94 V-0	Free Hanging (In-Line)	Crimp	10	Backshell Coupling Nut	Unshielded	Plug Housing	Black	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Circular	Contacts Not Included	Backshell Connector O-Ring Ring Seal Washer	6 pcs	125 °C	-40 °C	Thermoplastic
McGill Microwave Systems RTS6BS12N8P03	12 mm	8 mm	16 S	Bayonet Lock	Thermoplastic	N (Normal)	UL94 V-0	Free Hanging (In-Line)	Crimp	8	Backshell Coupling Nut	Unshielded	Plug Housing	Black	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Circular	Contacts Not Included			125 °C	-40 °C	Thermoplastic

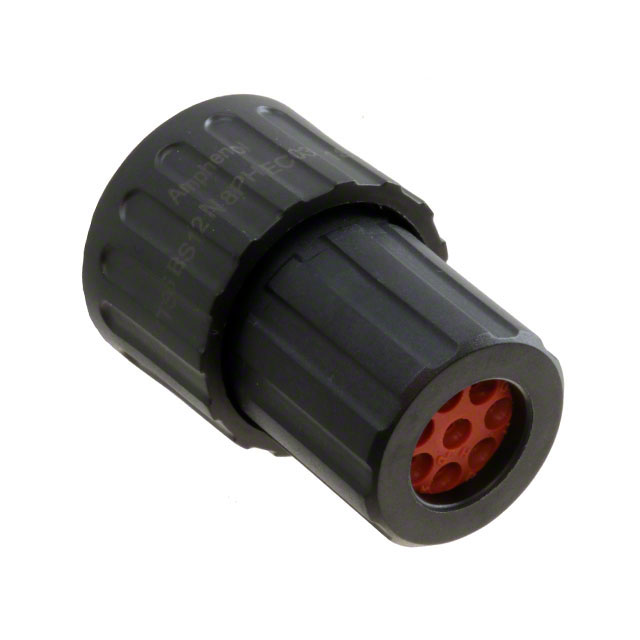

McGill Microwave Systems RTS6BS12N8PHEC03	12 mm	8 mm	16 S	Bayonet Lock	Thermoplastic	N (Normal)	UL94 V-0	Free Hanging (In-Line)	Crimp	8	Backshell Coupling Nut	Unshielded	Plug Housing	Black	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	Circular	Contacts Not Included	Backshell Connector O-Ring Ring Seal Washer	6 pcs	125 °C	-40 °C	Thermoplastic
McGill Microwave Systems RTS6BS12N8S03	12 mm	8 mm	16 S	Bayonet Lock	Thermoplastic	N (Normal)	UL94 V-0	Free Hanging (In-Line)	Crimp	8	Backshell Coupling Nut	Unshielded	Plug Housing	Black	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets	Circular	Contacts Not Included			125 °C	-40 °C	Thermoplastic
McGill Microwave Systems RTS6BS12N10SHEC03	12 mm	10 mm	20	Bayonet Lock	Thermoplastic	N (Normal)	UL94 V-0	Free Hanging (In-Line)	Crimp	10	Backshell Coupling Nut	Unshielded	Plug Housing	Black	IP67 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets	Circular	Contacts Not Included	Backshell Connector O-Ring Ring Seal Washer	6 pcs	125 °C	-40 °C	Thermoplastic
