LCF Series

Catalog

COMMON MODE CHOKES / FILTERS 35OHMS 25% 200MA 2 LINES 1210

Part	Package Leads	Package Name	Impedance	Height (Max)	DC Resistance (DCR) (Max)	Number of Lines	Size / Dimension Width	Size / Dimension Length	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Current Rating (Max)	Filter Type
LITTELFUSE LCF121002B350TG	4 Leads	0504 (1210 Metric)	35 Ohms	0.026 in	4 Ohm	2	0.039 in	0.05 in	-40 °C	85 °C	Surface Mount	200 mA	Signal Line
LITTELFUSE LCF201202A900TG	4 Leads	0805 (2012 Metric)	90 Ohms	0.033 in	4 Ohm	2	0.047 in	0.079 in	-40 °C	85 °C	Surface Mount	100 mA	Signal Line

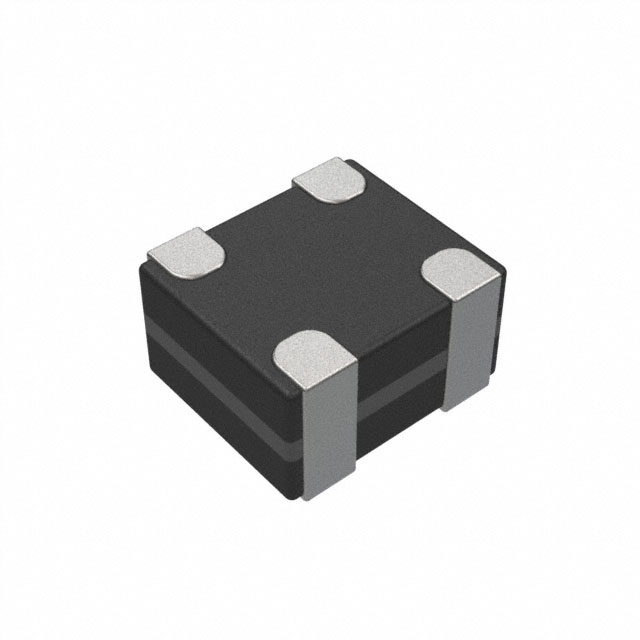

LITTELFUSE LCF060502A650TG	4 Leads	0202 (0605 Metric)	65 Ohms	0.015 in	10 Ohm	2	0.022 in	0.025 in	-40 °C	85 °C	Surface Mount	50 mA	Signal Line
