AAD-02PMMS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

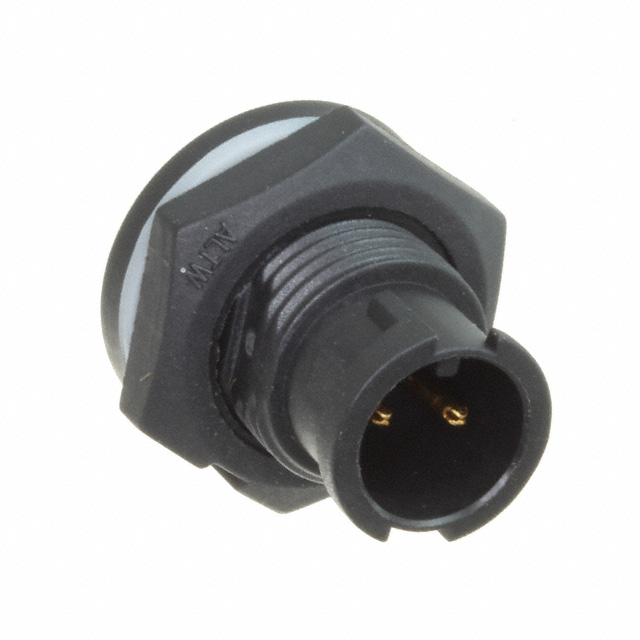

CONN RCPT MALE 2P GOLD SLDR CUP
| Part | Termination | Ingress Protection Description | Ingress Protection IP Rating | Shell Size - Insert | Mounting Type | Mounting Feature | Connector Type | Shell Material | Voltage Rating | Operating Temperature (Min) | Operating Temperature (Max) | Orientation | Number of Positions | Primary Material | Current Rating | Contact Finish - Mating | Fastening Type | Color | Shielding | Contact Material | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Solder Cup | Dust Tight Waterproof | IP67 | A | Panel Mount | Bulkhead Front Side Nut | Male Pins Receptacle | Glass Filled Nylon Polyamide (PA) | 300 VAC/DC | -40 °C | 105 °C | Keyed | 2 | Plastic | 5 A | Gold | Bayonet Lock | Black | Unshielded | Copper Alloy | Glass Filled Nylon PA Polyamide |
