901-97 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CONN SMA PLUG STR 50 OHM SOLDER
| Part | Connector Style | Fastening Type | Contact Termination | Center Contact Material | Frequency - Max | Impedance | Connector Type | Cable Group Diameter (Default) | Cable Group | Cable Group Diameter (Semi Rigid) | Housing Color | Number of Ports | Mounting Type | Shield Termination | Body Material | Operating Temperature (Min) | Operating Temperature (Max) | Center Contact Plating | Dielectric Material | Body Finish | Mating Cycles | Adapter Type | Conversion Type | Center Gender | Adapter Series | Convert To (Adapter End) Type | Convert To (Adapter End) Gender | Style | Mounting Feature | Convert From (Adapter End) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | SMA | Threaded | Solder | Beryllium Copper | 18 GHz | 50 Ohm | Male Pin Plug | 0.085 in | RG-405 | 0.086 in | Gold Silver | 1 | Free Hanging (In-Line) | Solder | Stainless Steel | -65 °C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Gold Passivated | 500 cycles | ||||||||||
 McGill Microwave Systems | Threaded | Beryllium Copper | 7 GHz | 50 Ohm | Panel Mount | Stainless Steel | -65 °C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | 500 cycles | Jack to Jack | Between Series | Female | SMA to N | N Jack | Female Socket | Straight | Flange | Female Socket SMA Jack | |||||||||||

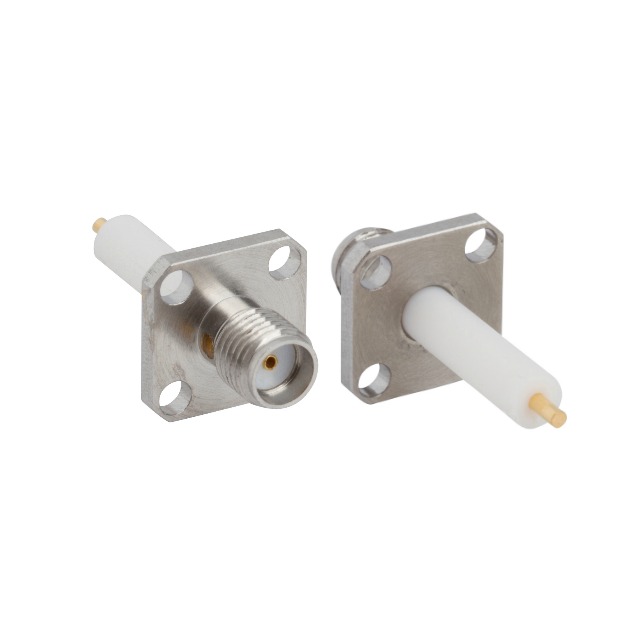

 McGill Microwave Systems | SMA | Threaded | Solder | Beryllium Copper | 12.4 GHz | 50 Ohm | Female Socket Recepture | Silver | 1 | Panel Mount | Solder | Stainless Steel | -65 °C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | 500 cycles | Flange | Extended Insulation | ||||||||||||
McGill Microwave Systems | SMA | Threaded | Solder | Beryllium Copper | 18 GHz | 50 Ohm | Male Pin Plug | 0.085 in | RG-405 | 0.086 in | Gold Silver | 1 | Free Hanging (In-Line) | Solder | Stainless Steel | -65 °C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Gold Passivated | 500 cycles | ||||||||||

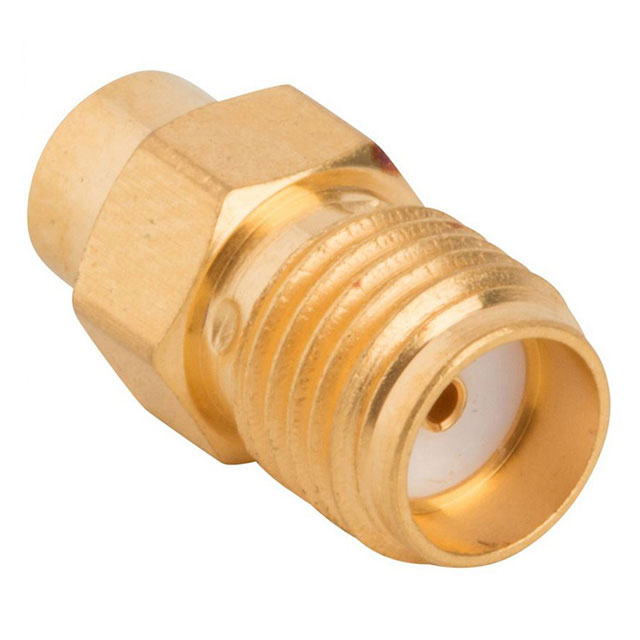

 McGill Microwave Systems | SMA | Threaded | Solder | Beryllium Copper | 18 GHz | 50 Ohm | Female Socket Jack | RG-402 | 0.141 in | Gold | 1 | Free Hanging (In-Line) | Solder | Stainless Steel | -65 °C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | Gold | 500 cycles | |||||||||||
 McGill Microwave Systems | SMA | Threaded | Solder | Beryllium Copper | 12.4 GHz | 50 Ohm | Female Socket Recepture | Silver | 1 | Panel Mount | Solder | Stainless Steel | -65 °C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | 500 cycles | Flange |
