AHD10 Series

Catalog

CONN RCPT HSNG MALE 6POS PNL MNT

Part	Number of Positions	Connector Type	Contact Type	Ingress Protection Description	Ingress Protection IP Rating	Orientation	Mounting Feature	Fastening Type	Shell Material	Mounting Type	Type	Housing Color	Contact Size	Shielding	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Note
McGill Microwave Systems AHD10-6-12P-L	6	Receptacle Housing	Crimp	Dust Tight Waterproof	IP67	Keyed	Flange	Bayonet Lock	Thermoplastic	Panel Mount	For Male Pins	Gray	12	Unshielded	125 °C	-55 °C	Circular	Contacts Not Included
McGill Microwave Systems AHD10-9-1939P80	9	Receptacle Housing	Crimp	Dust Tight Waterproof	IP67	Keyed	Flange	Bayonet Lock	Thermoplastic	Panel Mount	For Male Pins	Green	16 S	Unshielded	125 °C	-55 °C	Circular	Contacts Not Included
McGill Microwave Systems AHD10-9-1939P-BP80	9	Receptacle Housing	Crimp	Dust Tight Waterproof	IP67	Keyed	Flange	Bayonet Lock	Thermoplastic	Panel Mount	For Male Pins	Green	16 S	Unshielded	125 °C	-55 °C	Circular	Contacts Not Included

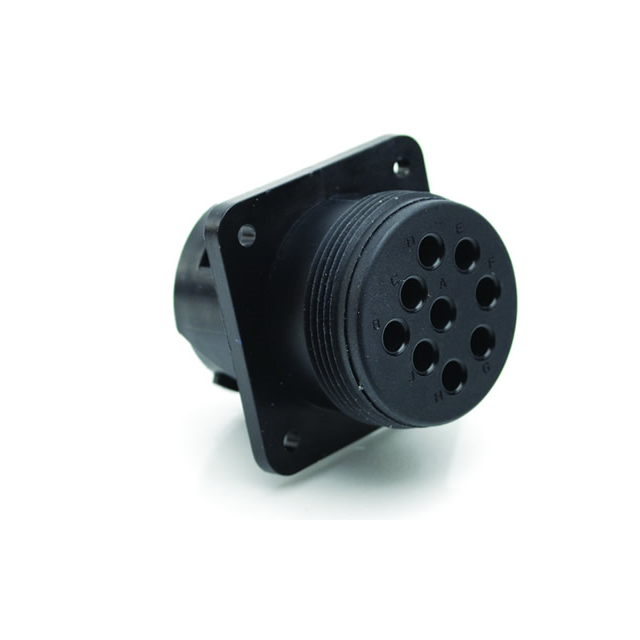

McGill Microwave Systems AHD10-9-1939PNR	9	Receptacle Housing	Crimp	Dust Tight Waterproof	IP67	Keyed	Flange	Bayonet Lock	Thermoplastic	Panel Mount	For Male Pins	Black	16 S	Unshielded	125 °C	-55 °C	Circular	Contacts Not Included
McGill Microwave Systems AHD10-9-1939PR-B022	9	Receptacle Housing	Crimp	Dust Tight Waterproof	IP67	Keyed	Flange	Bayonet Lock	Thermoplastic	Panel Mount	For Male Pins	Black	16 S	Unshielded	125 °C	-55 °C	Circular	Contacts Not Included
McGill Microwave Systems AHD10-9-1939P8R	9	Receptacle Housing	Crimp	Dust Tight Waterproof	IP67	Keyed	Flange	Bayonet Lock	Thermoplastic	Panel Mount	For Male Pins	Green	16 S	Unshielded	125 °C	-55 °C	Circular	Contacts Not Included
McGill Microwave Systems AHD10-9-1939P-B022	9	Receptacle Housing	Crimp	Dust Tight Waterproof	IP67	Keyed	Flange	Bayonet Lock	Thermoplastic	Panel Mount	For Male Pins	Black	16 S	Unshielded	125 °C	-55 °C	Circular	Contacts Not Included
McGill Microwave Systems AHD10-9-1939PE	9	Receptacle Housing	Crimp	Dust Tight Waterproof	IP67	Keyed	Flange	Bayonet Lock	Thermoplastic	Panel Mount	For Male Pins	Black	16 S	Unshielded	125 °C	-55 °C	Circular	Contacts Not Included

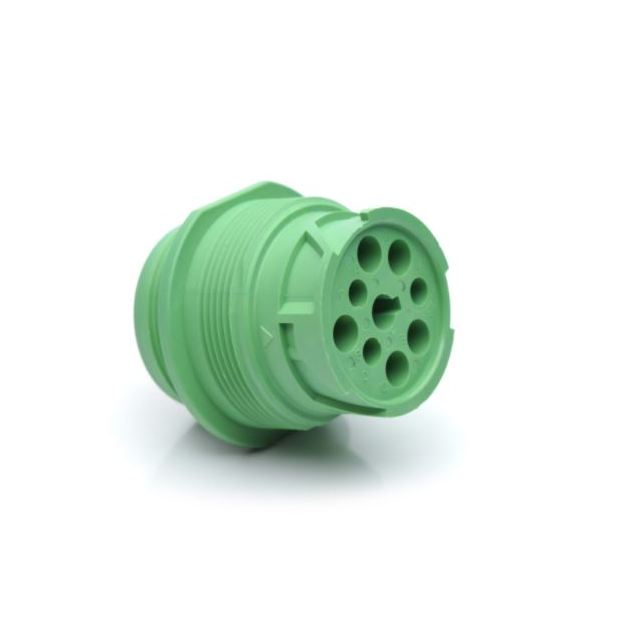

McGill Microwave Systems AHD10-9-1939PR-BP80	9	Receptacle Housing	Crimp	Dust Tight Waterproof	IP67	Keyed	Flange	Bayonet Lock	Thermoplastic	Panel Mount	For Male Pins	Green	16 S	Unshielded	125 °C	-55 °C	Circular	Contacts Not Included
