AD9755 Series

Catalog

14-BIT, 300 MSPS HIGH SPEED TXDAC+®D/A CONVERTER

Part	Data Interface	Architecture	DNL (LSB) Tolerance	INL (LSB) Tolerance	Reference Type	Number of D/A Converters	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Package / Case	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Operating Temperature (Min)	Operating Temperature (Max)	Settling Time (Typical)	Package Length	Package Name	Package Width	Number of Bits	Mounting Type	Differential Output	Output Type	Supplied Contents	Settling Time	DAC Type	Number of DAC's	Sampling Rate (Per Second)	Contents	Utilized IC / Part
Analog Devices Inc./Maxim Integrated AD9755ASTZRL	Parallel	Current Source	1.5 LSB	2.5 LSB	External Internal	1 count	3 V	3.6 V	48-LQFP	3.6 V	3 V	-40 °C	85 °C	11 ns	7 mm	48-LQFP	7 mm	14 bits	Surface Mount	Yes	Current - Unbuffered

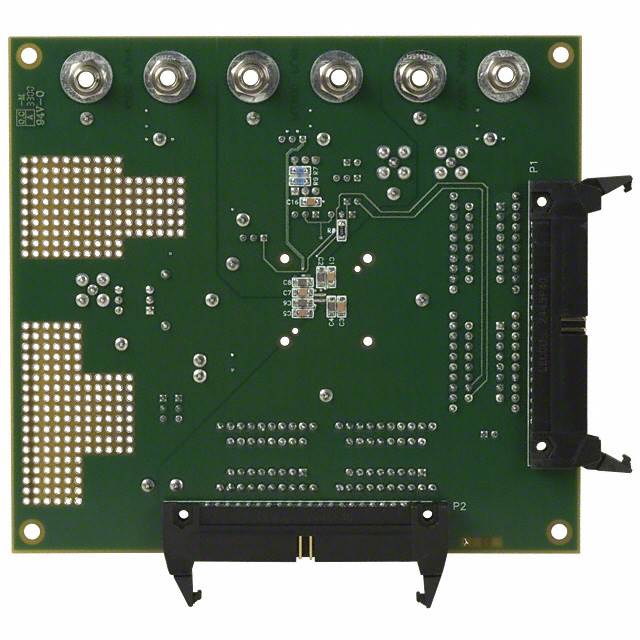

Analog Devices Inc./Maxim Integrated AD9755-EB	Parallel																	14 bits				Board(s)	11 ns	Current	1	300 MHz	Board	AD9755
Analog Devices Inc./Maxim Integrated AD9755ASTZ	Parallel	Current Source	1.5 LSB	2.5 LSB	External Internal	1 count	3 V	3.6 V	48-LQFP	3.6 V	3 V	-40 °C	85 °C	11 ns	7 mm	48-LQFP	7 mm	14 bits	Surface Mount	Yes	Current - Unbuffered
