SF1211 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CONN SMP PLUG STR 50 OHM SMD
| Part | Body Material | Center Contact Plating | Dielectric Material | Operating Temperature (Min) | Operating Temperature (Max) | Insertion Loss | Mounting Feature | Mounting Type | Frequency - Max | Contact Termination | Connector Type | Number of Ports | Impedance | Connector Style | Center Contact Material | Features | Fastening Type | Shield Termination | Mating Cycles | Cable Group Size | Cable Group | Housing Color | Includes | Includes Total Count |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

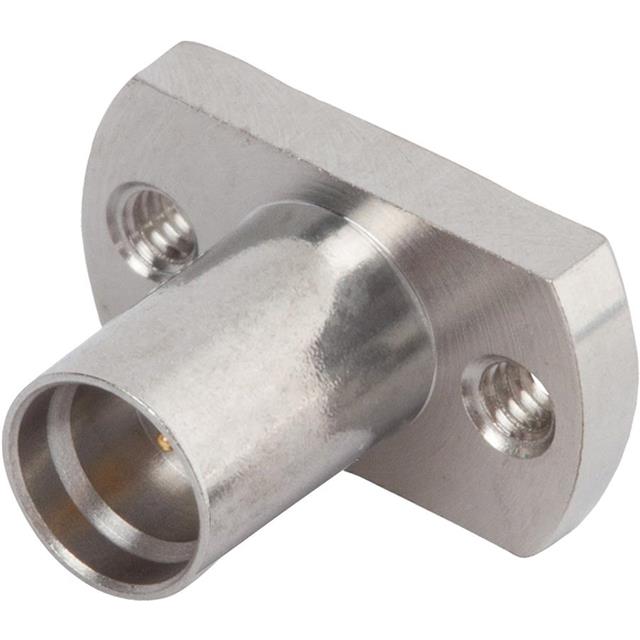

 McGill Microwave Systems | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | -65 °C | 165 °C | 0.26 dB | Flange | Surface Mount | 18 GHz | Compression | Female Socket Jack | 1 | 50 Ohm | SMP | Beryllium Copper | Flange | Threaded | Screw | ||||||
 McGill Microwave Systems | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | -65 °C | 165 °C | 0.26 dB | Flange | Surface Mount | 18 GHz | Compression | Female Socket Jack | 1 | 50 Ohm | SMP | Beryllium Copper | Flange | Threaded | Screw | ||||||

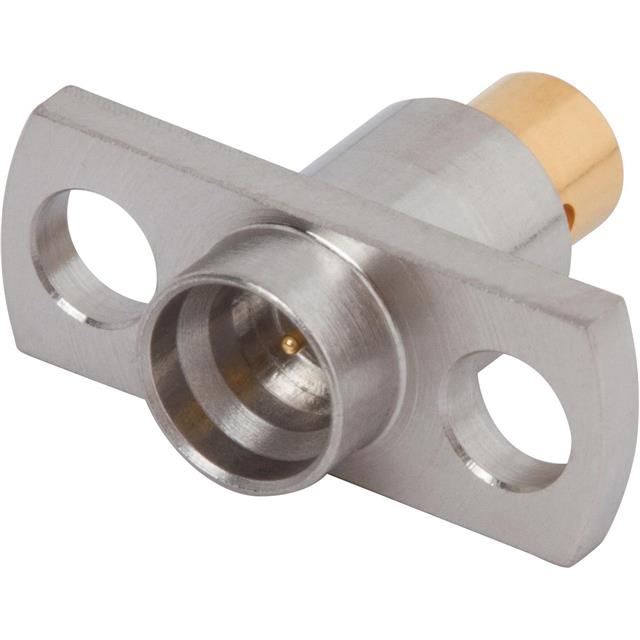

 McGill Microwave Systems | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | Flange | Panel Mount | 40 Gbps | Solder | Male Pin Plug | 1 | 50 Ohm | SMP | Beryllium Copper | Limited Detent | Snap-On | Solder | 500 cycles | 0.047 " | Flexible | Silver | |||||
 McGill Microwave Systems | Stainless Steel | Gold | Polyamide-Imide (PAI) | Through Hole | 20 Gbps | Solder | Male Pin Plug | 1 | 50 Ohm | SMP | Beryllium Copper | Full Detent | Snap-On | Solder | 100 cycles | Silver | ||||||||
 McGill Microwave Systems | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | -55 °C | 165 °C | Bulkhead Front Side Nut | Panel Mount | 26.5 GHz | Solder | Male Pin Plug | 1 | 50 Ohm | SMP | Beryllium Copper | Catcher's Mitt | Snap-On | Solder | 0.047 " | Flexible | Silver | ||||
McGill Microwave Systems | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | -65 °C | 165 °C | 0.26 dB | Flange | Surface Mount | 18 GHz | Compression | Female Socket Jack | 1 | 50 Ohm | SMP | Beryllium Copper | Flange | Threaded | Screw | ||||||

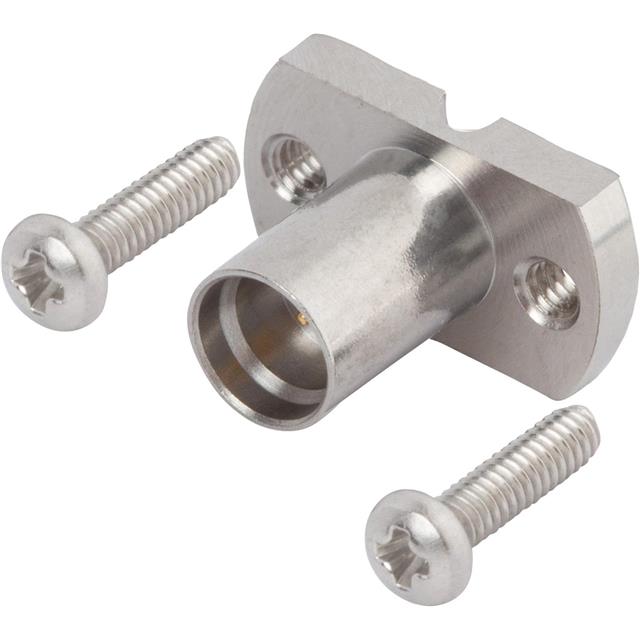

 McGill Microwave Systems | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | -65 °C | 165 °C | Flange | Surface Mount | 40 Gbps | Compression | Male Pin Plug | 1 | 50 Ohm | SMP | Beryllium Copper | Mounting Hardware | Bayonet Lock | Screw | Silver | Connector Screws | 3 pcs | ||||
McGill Microwave Systems | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | -55 °C | 125 °C | Through Hole | 40 Gbps | Solder | Male Pin Plug | 1 | 50 Ohm | SMP | Beryllium Copper | Limited Detent | Snap-On | Solder | 500 cycles | Silver | ||||||
 McGill Microwave Systems | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | -65 °C | 165 °C | 0.26 dB | Flange | Surface Mount | 18 GHz | Compression | Female Socket Jack | 1 | 50 Ohm | SMP | Beryllium Copper | Flange | Threaded | Screw | ||||||
 McGill Microwave Systems | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | -55 °C | 125 °C | Through Hole | 40 Gbps | Solder | Male Pin Plug | 1 | 50 Ohm | SMP | Beryllium Copper | Smooth Bore | Snap-On | Solder | 1000 cycles | Silver |
