SF2921 Series

Catalog

CONN SMA JACK STR 50 OHM SMD

Part	Mating Cycles	Center Contact Plating	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Body Material	Mounting Feature	Impedance	Connector Type	Shield Termination	Housing Color	Connector Style	Center Contact Material	Frequency - Max	Mounting Type	Fastening Type	Number of Ports	Contact Termination	Features	Includes	Includes Total Count	Insertion Loss

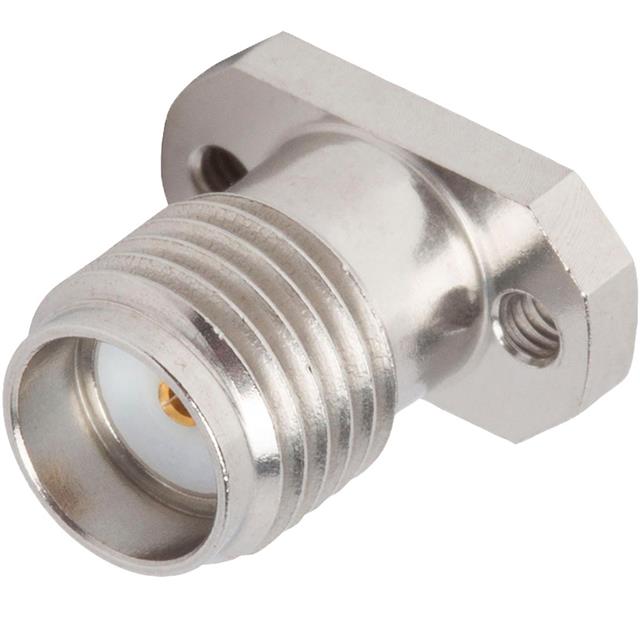

McGill Microwave Systems SF2921-61356	500 cycles	Gold	Polytetrafluoroethylene (PTFE)	150 °C	-55 °C	Stainless Steel	Flange	50 Ohm	Female Socket Jack	Screw	Silver	SMA	Beryllium Copper	27 GHz	Surface Mount	Threaded	1	Compression
McGill Microwave Systems SF2921-61356-2S	500 cycles	Gold	Polytetrafluoroethylene (PTFE)	150 °C	-55 °C	Stainless Steel	Flange	50 Ohm	Female Socket Jack	Screw	Silver	SMA	Beryllium Copper	27 GHz	Surface Mount	Threaded	1	Compression	Mounting Hardware	Connector Screws	3 pcs
McGill Microwave Systems SF2921-61560	500 cycles	Gold	Polytetrafluoroethylene (PTFE)	165 °C	-65 °C	Stainless Steel		50 Ohm	Female Socket Jack	Screw	Silver	SMA	Beryllium Copper	26.5 GHz	Board Edge End Launch	Threaded	1	Compression	Mounting Hardware	Connector Screws	3 pcs	0.154 dB
McGill Microwave Systems SF2921-61345-1S	500 cycles	Gold	Polytetrafluoroethylene (PTFE)	150 °C	-55 °C	Stainless Steel	Flange	50 Ohm	Female Socket Jack	Screw	Silver	SMA	Beryllium Copper	27 GHz	Surface Mount	Threaded	1	Compression	Mounting Hardware	Connector Screws	3 pcs
McGill Microwave Systems SF2921-61345	500 cycles	Gold	Polytetrafluoroethylene (PTFE)	150 °C	-55 °C	Stainless Steel	Flange	50 Ohm	Female Socket Jack	Screw	Silver	SMA	Beryllium Copper	27 GHz	Surface Mount	Threaded	1	Compression
McGill Microwave Systems SF2921-61506-1S	500 cycles	Gold		165 °C	-65 °C	Stainless Steel	Flange	50 Ohm	Female Socket Jack	Screw	Silver	SMA	Beryllium Copper	18 GHz	Surface Mount	Threaded	1	Compression	Mounting Hardware	Connector Screws	3 pcs
McGill Microwave Systems SF2921-61507-1S	500 cycles	Gold		165 °C	-65 °C	Stainless Steel	Flange	50 Ohm	Female Socket Jack	Screw	Silver	SMA	Beryllium Copper	26.5 GHz	Surface Mount	Threaded	1	Compression	Mounting Hardware	Connector Screws	3 pcs

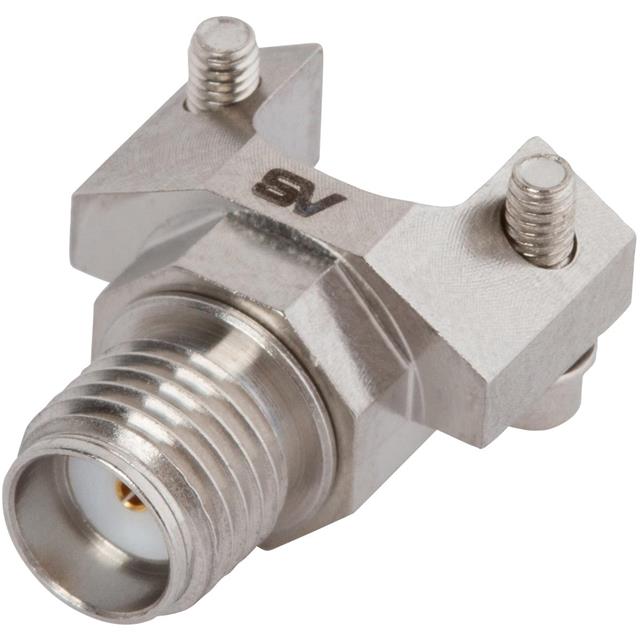

McGill Microwave Systems SF2921-61450	500 cycles	Gold	Polytetrafluoroethylene (PTFE)	165 °C	-65 °C	Stainless Steel		50 Ohm	Female Socket Jack	Screw	Silver	SMA	Beryllium Copper	26.5 GHz	Board Edge End Launch	Threaded		Compression	Mounting Hardware	Connector Screws	3 pcs

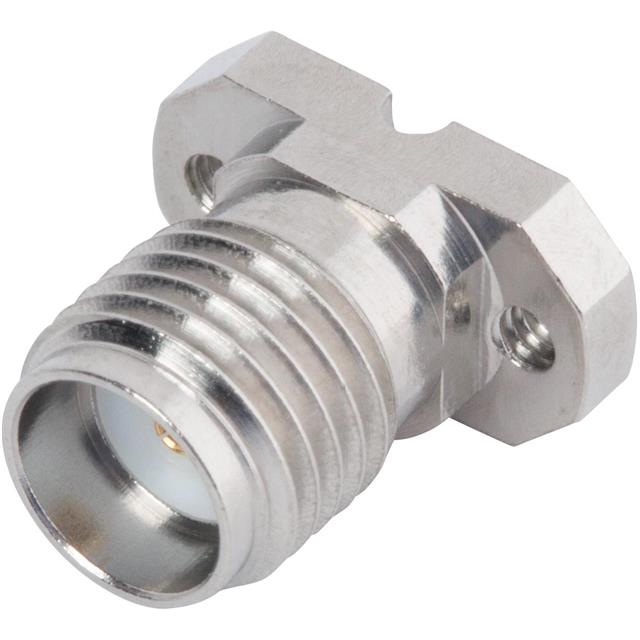

McGill Microwave Systems SF2921-61506	500 cycles	Gold		165 °C	-65 °C	Stainless Steel	Flange	50 Ohm	Female Socket Jack	Screw	Silver	SMA	Beryllium Copper	18 GHz	Surface Mount	Threaded	1	Compression

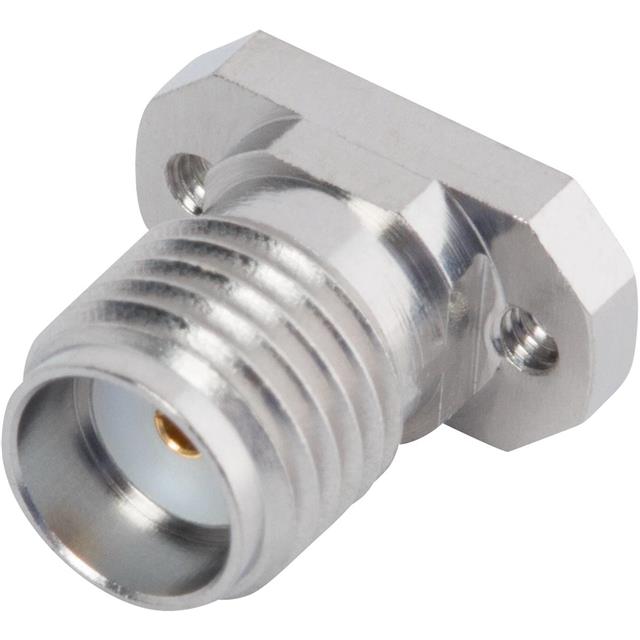

McGill Microwave Systems SF2921-61507	500 cycles	Gold		165 °C	-65 °C	Stainless Steel	Flange	50 Ohm	Female Socket Jack	Screw	Silver	SMA	Beryllium Copper	26.5 GHz	Surface Mount	Threaded	1	Compression
