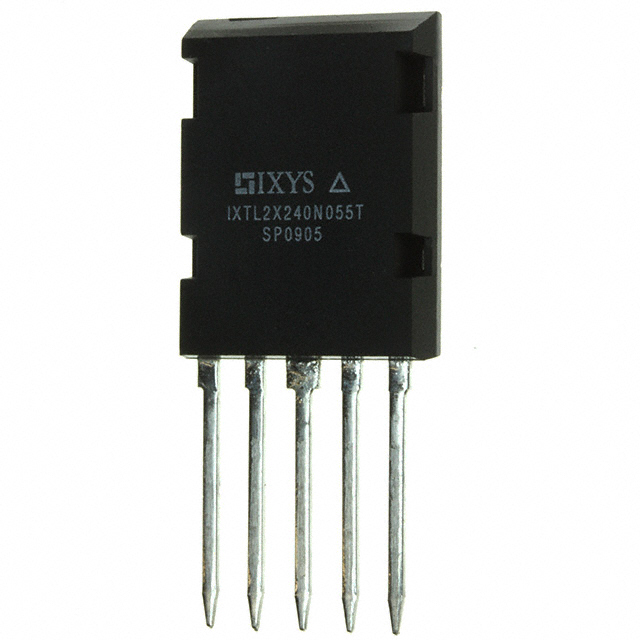

IXTL2X240 Series
Manufacturer: LITTELFUSE
Beta
⌘K
MOSFET 2N-CH 55V 140A I5-PAK
| Part | Package Name | Channel Count | Configuration | Configuration - Features | Mounting Type | Vgs(th) (Max) | Power - Max | Input Capacitance (Ciss) (Max) | Current - Continuous Drain (Id) | Technology | Package / Case | Drain to Source Voltage (Vdss) | Gate Charge (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Rds On (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | ISOPLUSi5-Pak™ | 2 | N-Channel | Dual | Through Hole | 4 V | 150 W | 7600 pF | 140 A | MOSFET (Metal Oxide) | ISOPLUSi5-Pak™ | 55 V | 170 nC | -55 °C | 175 °C | 4.4 mOhm |
