644180 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

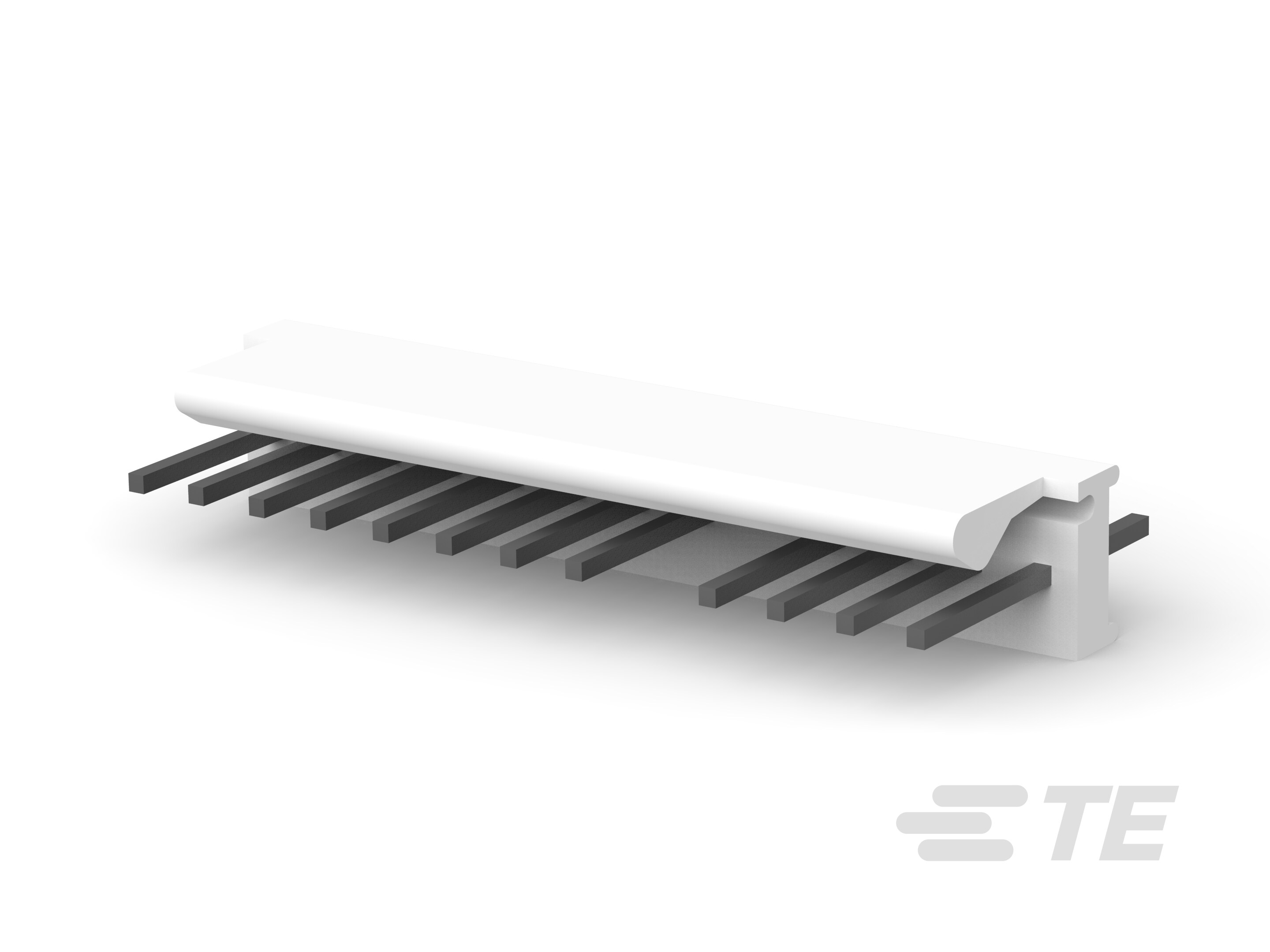

13P MTA100 HDR ASSY STR W/O#5 ROHS COMPLIANT: YES
| Part | Contact Finish - Mating | Contact Length - Post | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material | Number of Positions Loaded | Contact Shape | Current Rating | Current Rating | Mounting Type | Connector Type | Contact Type | Insulation Color | Shrouding | Contact Finish - Post | Contact Length - Mating | Overall Contact Length | Style | Number of Rows | Pitch - Mating | Voltage Rating | Material Flammability Rating | Number of Positions | Insulation Material | Insulation Height | Fastening Type | Termination | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Tin | 0.14 in | -55 °C | 105 °C | Copper Alloy | 12 | Square | 0 A | Varies by Wire Gauge | Through Hole | Header | Male Pin | Natural | Shrouded - 1 Wall | Tin | 0.295 in | 0.535 in | Board Cable/Wire | 1 | 0.1 in | 250 V | UL94 V-0 | 13 | Thermoplastic | 0.305 in | Friction Lock | Solder | General Purpose |
 TE Connectivity AMP Connectors | Tin | 0.14 in | -55 °C | 105 °C | Copper Alloy | 9 | Square | 0 A | Varies by Wire Gauge | Through Hole | Header | Male Pin | Natural | Shrouded - 1 Wall | Tin | 0.295 in | 0.535 in | Board Cable/Wire | 1 | 0.1 in | 250 V | UL94 V-0 | 13 | Thermoplastic | 0.305 in | Friction Lock | Solder | General Purpose |
