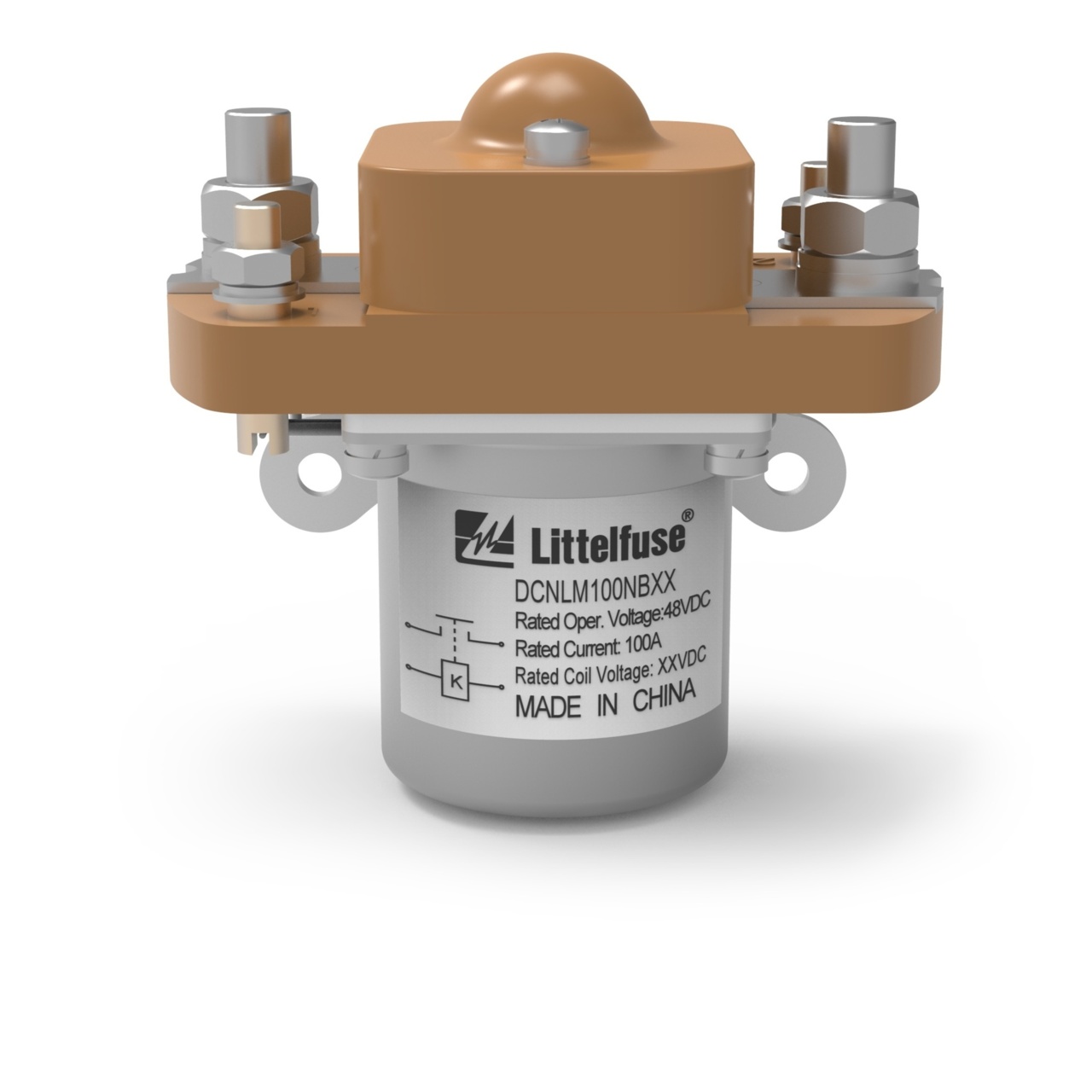

DCNLM100NB48 Series

DCNLM 100A 48V NP 48Vcoil

Catalog

DCNLM 100A 48V NP 48Vcoil

Part	Mounting Type	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Must Operate Voltage	Coil Voltage	Must Release Voltage	Contact Rating (Current)	Switching Voltage DC (Max)	Form A Count	Contact Form
LITTELFUSE DCNLM100NB48	Chassis Mount	Stud	-40 °C	70 °C	33.6 VAC	48 V	4 VDC	100 A	60 VDC	1	SPST-NO

Catalog

DCNLM 100A 48V NP 48Vcoil

Description

The DCNLM Series 60V High-Current DC Contactor Relay features 100A contact switching capability with a 48V coil rating, which is suitable for a wide variety of applications, including use in electrical control systems, communication power supplies, engineering machines, and uninterruptible power supplies (UPS). This configuration of the DCNLM normally open, high-current DC contactor (DCNLM100NB48) features 60V non-polarized main contacts and a single-coil design.
