IXDD409 Series

Catalog

IC GATE DRVR LOW-SIDE 8DIP

Part	Gate Type	Driven Configuration	Gate Channel	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package Length	Package Name	Package Width	Channel Type	Mounting Type	Rise Time (Typ)	Fall Time (Typ)	Number of Drivers	Input Type	Logic Voltage - VIH	Logic Voltage - VIL	Operating Temperature (Min)	Operating Temperature (Max)	Current - Peak Output (Sink)	Current - Peak Output (Source)	Package / Case	Package Leads
LITTELFUSE IXDD409PI	IGBT MOSFET N-Channel P-Channel MOSFET	Low-Side	N-Channel P-Channel	35 V	4.5 V	0.3 in	8-DIP	7.62 mm	Single	Through Hole	10 ns	10 ns	1	Non-Inverting	3.5 V	0.8 V	-55 °C	150 °C	9 A	9 A
LITTELFUSE IXDD409CI	IGBT MOSFET N-Channel P-Channel MOSFET	Low-Side	N-Channel P-Channel	35 V	4.5 V		TO-220-5		Single	Through Hole	10 ns	10 ns	1	Non-Inverting	3.5 V	0.8 V	-55 °C	150 °C	9 A	9 A	TO-220-5

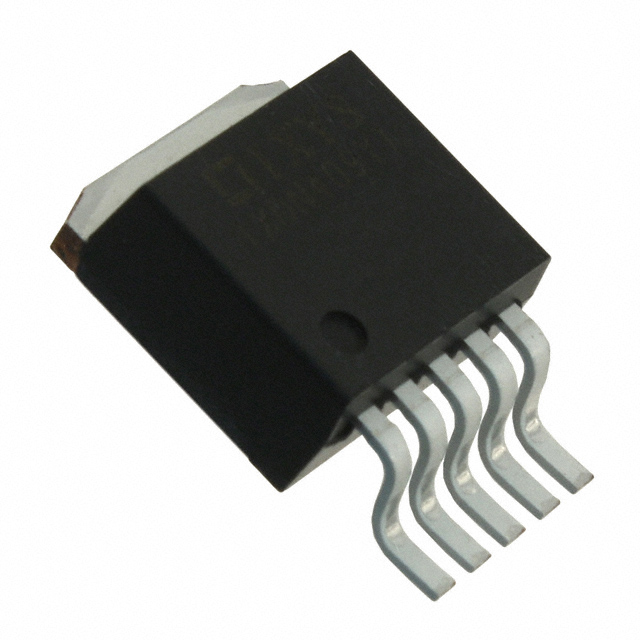

LITTELFUSE IXDD409YI	IGBT MOSFET N-Channel P-Channel MOSFET	Low-Side	N-Channel P-Channel	35 V	4.5 V		D2PAK TO-263-5		Single	Surface Mount	10 ns	10 ns	1	Non-Inverting	3.5 V	0.8 V	-55 °C	150 °C	9 A	9 A		5 Leads
