767054 Series

Catalog

CONN RCPT 266P SMD PALLAD-NICKEL

Part	Height Above Board	Height Above Board	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Number of Rows	Connector Type	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Contact Finish

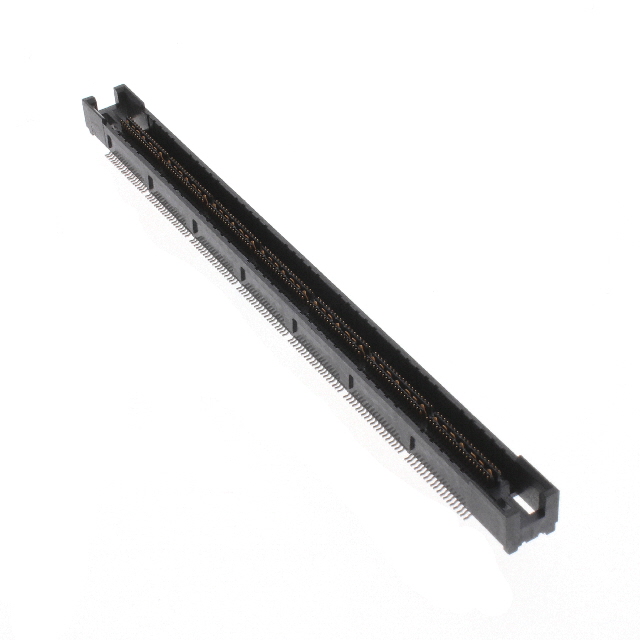

TE Connectivity Raychem Cable Protection 767054-7	6 mm	0.236 in	Surface Mount	0.64 mm	0.025 in	266	2	Center Strip Contacts Receptacle	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm	0.127 µm	5 µin	Palladium-Nickel

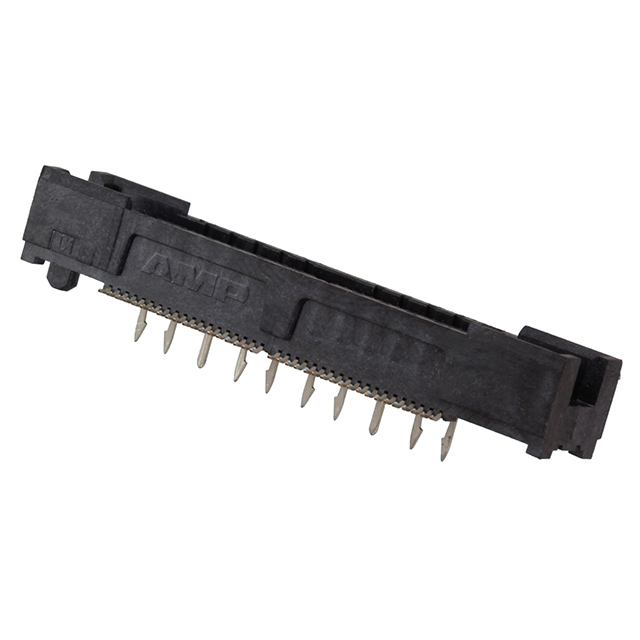

TE Connectivity Raychem Cable Protection 767054-2	6 mm	0.236 in	Surface Mount	0.64 mm	0.025 in	76	2	Center Strip Contacts Receptacle	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm	0.127 µm	5 µin	Palladium-Nickel

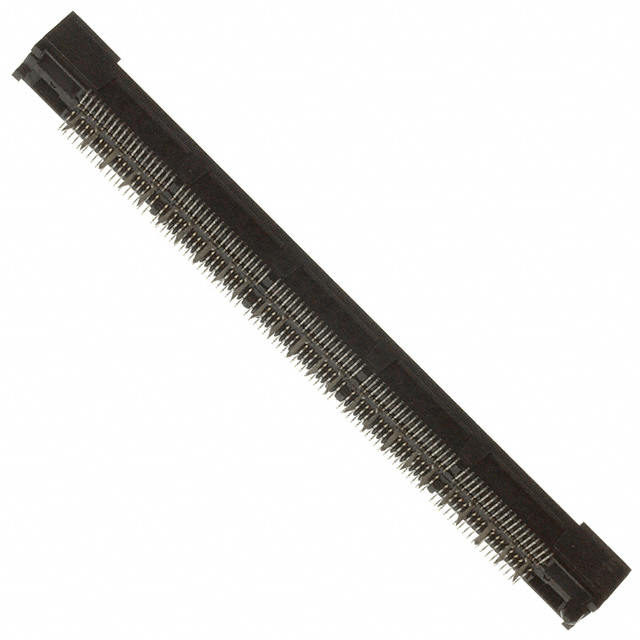

TE Connectivity Raychem Cable Protection 767054-5	6 mm	0.236 in	Surface Mount	0.64 mm	0.025 in	190	2	Center Strip Contacts Receptacle	6.6 mm 9 mm 10.92 mm 12.57 mm 17.96 mm 18.75 mm 20 mm 22.86 mm	0.127 µm	5 µin	Palladium-Nickel
