RT0W61419 Series

Catalog

CONN PLUG MALE 19POS GOLD CRIMP

Part	Number of Positions	Primary Material	Voltage Rating	Voltage Rating (Type)	Shell Material	Connector Type	Ingress Protection Description	Ingress Protection IP Rating	Termination	Contact Finish - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Orientation	Color	Current Rating	Fastening Type	Shell Finish	Mounting Type	Contact Finish Thickness - Mating	Contact Type	Material Flammability Rating	Includes	Includes Total Count	Housing Color	Note	Contact Size	Shielding	Type	Contact Shape	Insert Material	Features	Cable Opening (Max)	Cable Opening (Min)	Applications	Plating	Backshell Material	Contact Material
McGill Microwave Systems RT0W61419PNH-K	19	Metal	150 VDC	DC	Zinc Die Cast	Male Pins Plug	Dust Tight Waterproof	IP67	Crimp	Gold	-40 °C	105 °C	19	14 S	N (Normal)	Silver	7.5 A	Bayonet Lock	Nickel	Free Hanging (In-Line)	Flash

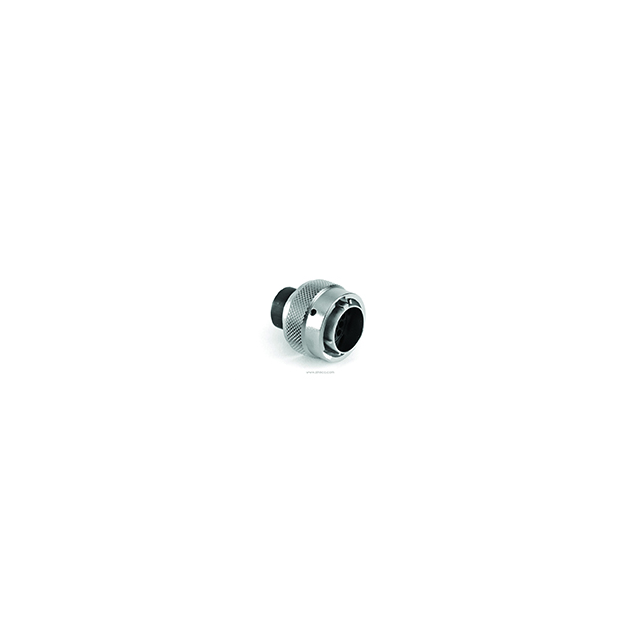

McGill Microwave Systems RT0W61419PNH03	19				Zinc Alloy	Plug Housing	Dust Tight Waterproof	IP67			-40 °C	125 °C	19	14 S	N (Normal)			Bayonet Lock	Nickel	Free Hanging (In-Line)		Crimp	UL94 V-0	Connector Gasket O-Ring	3 pcs	Silver	Contacts Not Included	20	Shielded	For Male Pins	Circular	Thermoplastic	Coupling Nut
McGill Microwave Systems RT0W61419SNHEC03	19	Metal			Zinc Alloy	Plug Housing	Dust Tight Waterproof	IP67					19	14 S	N (Normal)			Bayonet Lock	Nickel	Free Hanging (In-Line)		Crimp	UL94 V-0			Silver		20	Shielded	For Female Sockets			Backshell Coupling Nut
McGill Microwave Systems RT0W61419PNHEC03	19	Metal			Zinc Alloy	Plug Housing	Dust Tight Waterproof	IP67					19	14 S	N (Normal)			Bayonet Lock	Nickel	Free Hanging (In-Line)		Crimp	UL94 V-0			Silver		20	Shielded	For Male Pins			Backshell Coupling Nut

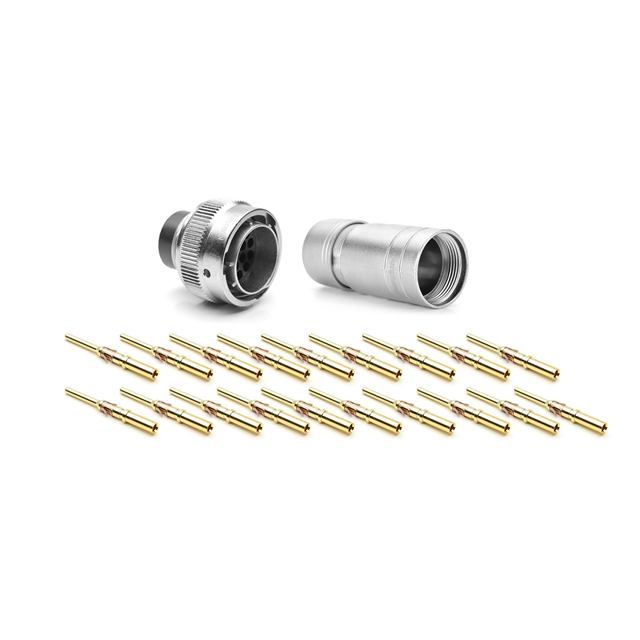

McGill Microwave Systems RT0W61419PNH03SS-K	19	Metal	250 V		Zinc Die Cast	Male Pins Plug	Dust Tight Water Resistant Waterproof	IP67 IP69K	Crimp	Gold	-40 °C	105 °C	19	14 S	N (Normal)	Silver	5 A	Bayonet Lock	Nickel	Free Hanging (In-Line)	Flash		UL94 V-0						Shielded			Nylon 6/6 PA66 Polyamide	Backshell Coupling Nut	0.394 in	0.256 in	Aerospace Automation Industrial Telecom Transportation	Nickel	Zinc Die Cast	Brass

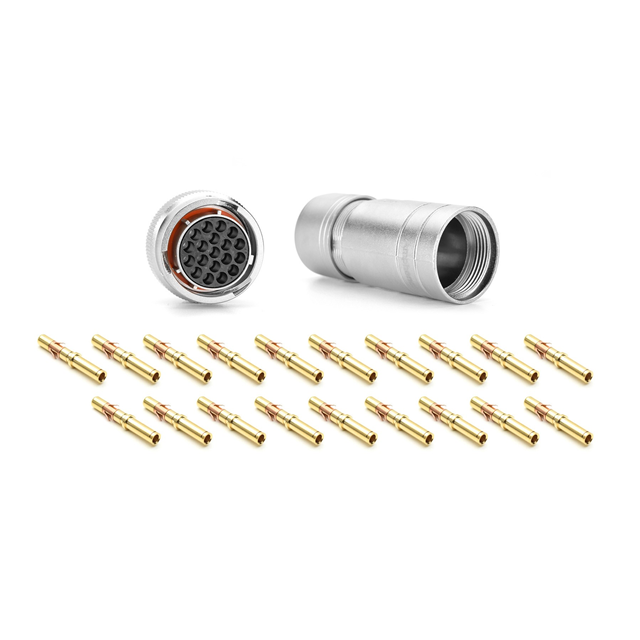

McGill Microwave Systems RT0W61419SNH03SS-K	19	Metal	250 V		Zinc Die Cast	Female Sockets Plug	Dust Tight Water Resistant Waterproof	IP67 IP69K	Crimp	Gold	-40 °C	105 °C	19	14 S	N (Normal)	Silver	5 A	Bayonet Lock	Nickel	Free Hanging (In-Line)	Flash		UL94 V-0						Shielded			Nylon 6/6 PA66 Polyamide	Backshell Coupling Nut	0.394 in	0.256 in	Aerospace Automation Industrial Telecom Transportation	Nickel	Zinc Die Cast	Brass
