SSL12 Series

Catalog

CABLE 4POS PLUG 1M

Part	Features	Color	2nd Connector	1st Connector Positions	1st Connector	Length	Ingress Protection IP Rating	Ingress Protection Description	Mating Cycles	Current Rating	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Fastening Type	Housing Material	Number of Positions	Termination	Housing Color	Style	Connector Type	Mounting Type	Ingress Protection	Contact Material	Contact Finish

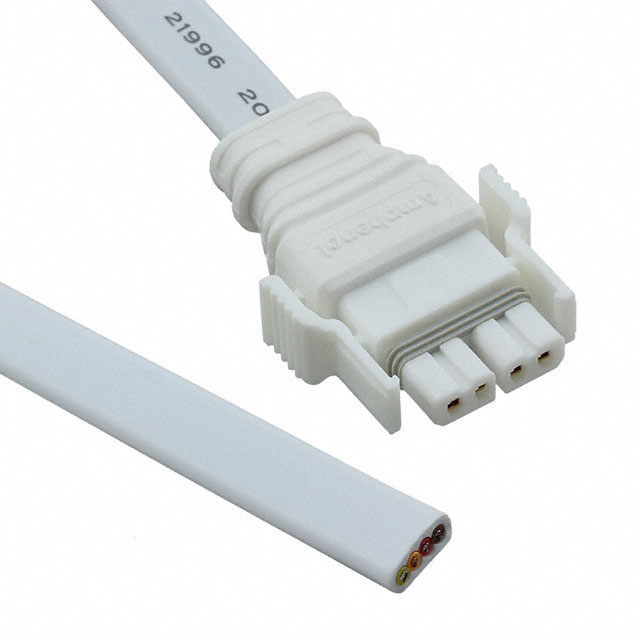

McGill Microwave Systems SSL12-P4LP0-M20F01	Industrial Environments IP68 Latch Lock	White	Wire Leads	4	4 Position Plug	39.4 in

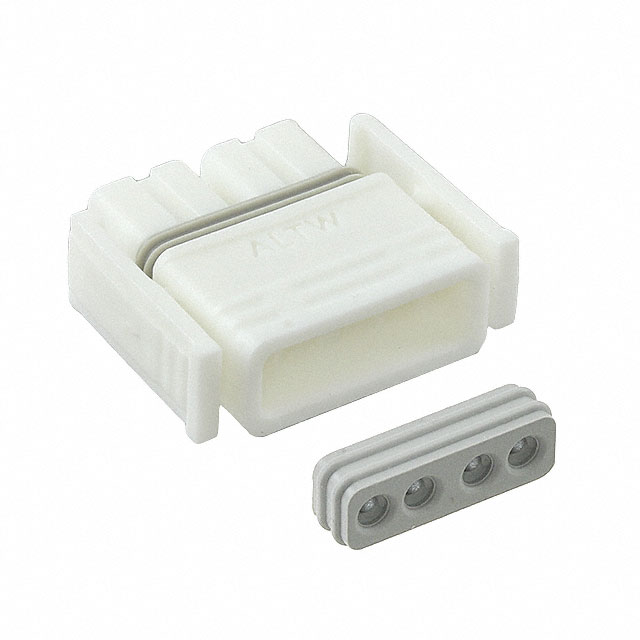

McGill Microwave Systems SSL12-P4FP0-M00001							IP68	Dust Tight Waterproof	30 cycles	5 A	250 V	-40 °C	105 °C	19.5 AWG	22 AWG	Latch Lock	Thermoplastic	4	Crimp	White	Cable/Wire Cable/Wire or Board	Plug Housing for Socket Contact	Free Hanging (In-Line)
McGill Microwave Systems SSL12-P2LP0-M20A04	Latch Lock	Brown Red	Wire Leads	2	2 Position Plug	15.7 in
McGill Microwave Systems SSL12-J2LJ0-020A04	Latch Lock	Brown Red	Wire Leads	2	2 Position Socket	15.7 in

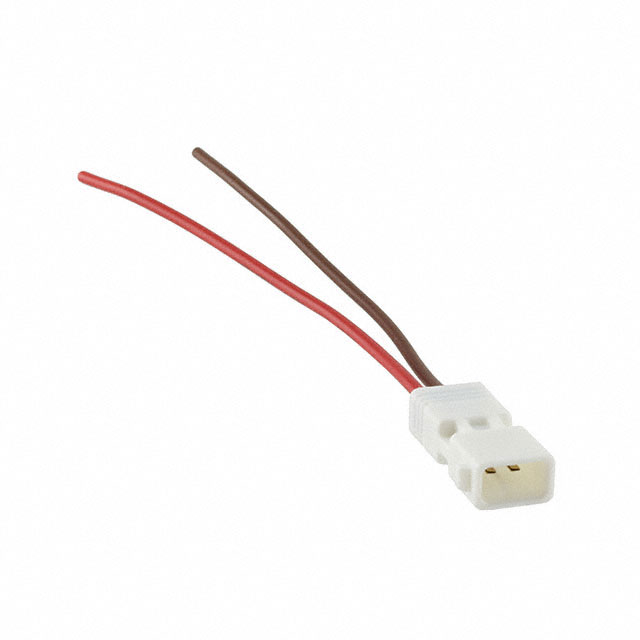

McGill Microwave Systems SSL12-J2LJ0-020A01	Industrial Environments IP68	Brown Red	Wire Leads	2	2 Position Socket	3.94 in

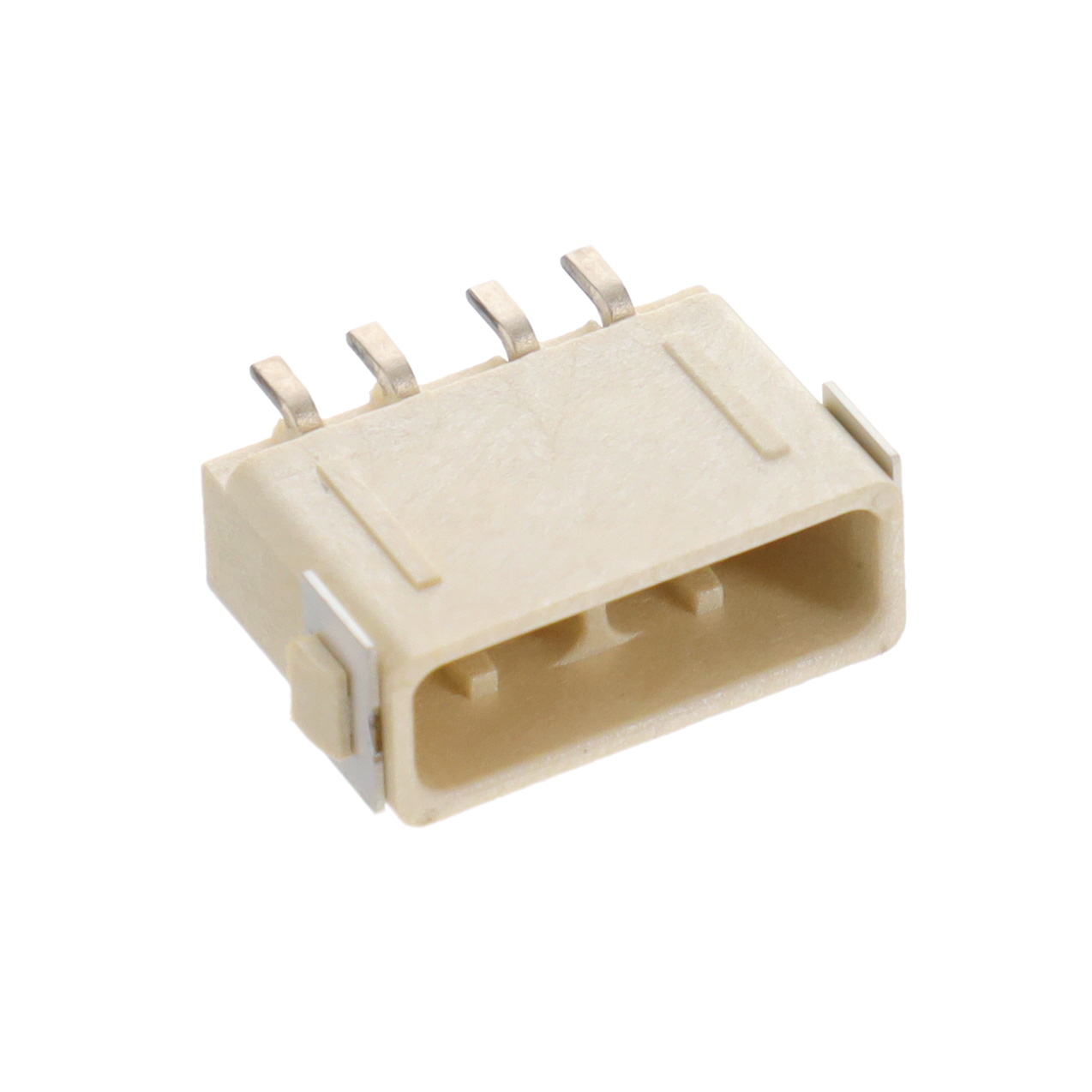

McGill Microwave Systems SSL12-J4D00-000001	Pick and Place Solder Retention									5 A	250 V	-40 °C	105 °C			Detent Lock	Thermoplastic	4	Solder	Natural	Board Board or Cable	Jack Housing for Pin Contact	Surface Mount	IP68	Copper Alloy	Gold

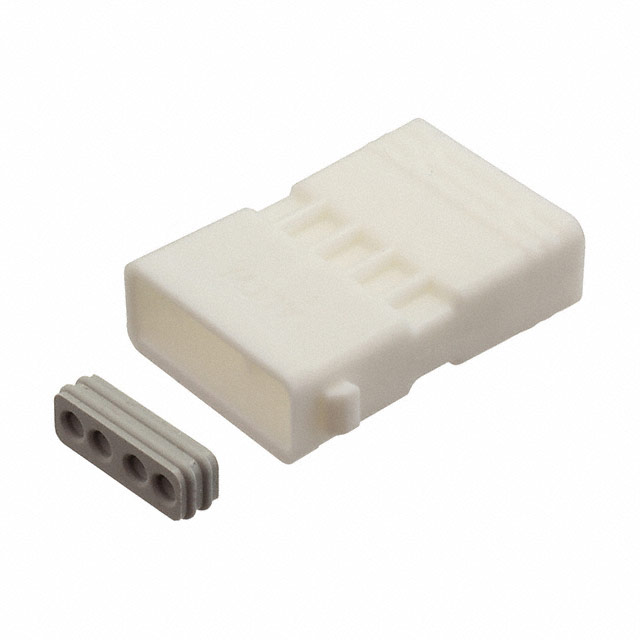

McGill Microwave Systems SSL12-J4FJ0-000001							IP68	Dust Tight Waterproof	30 cycles	5 A	250 V	-40 °C	105 °C	19.5 AWG	22 AWG	Locking Ramp	Thermoplastic	4	Crimp	White	Cable/Wire	Jack Housing for Pin Contact	Free Hanging (In-Line)

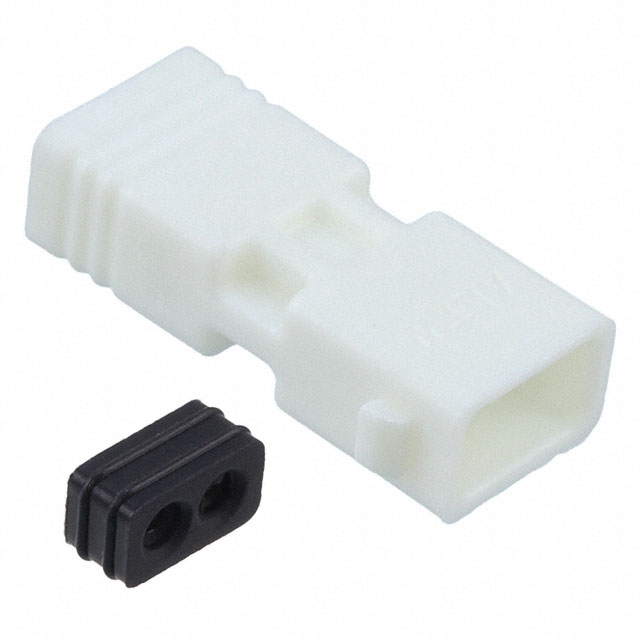

McGill Microwave Systems SSL12-J2FJ0-000001							IP68	Dust Tight Waterproof	30 cycles	5 A	250 V	-40 °C	105 °C	19.5 AWG	22 AWG	Latch Holder	Nylon PA Polyamide	2	Crimp	White	Cable/Wire	Jack Housing for Pin Contact	Free Hanging (In-Line)

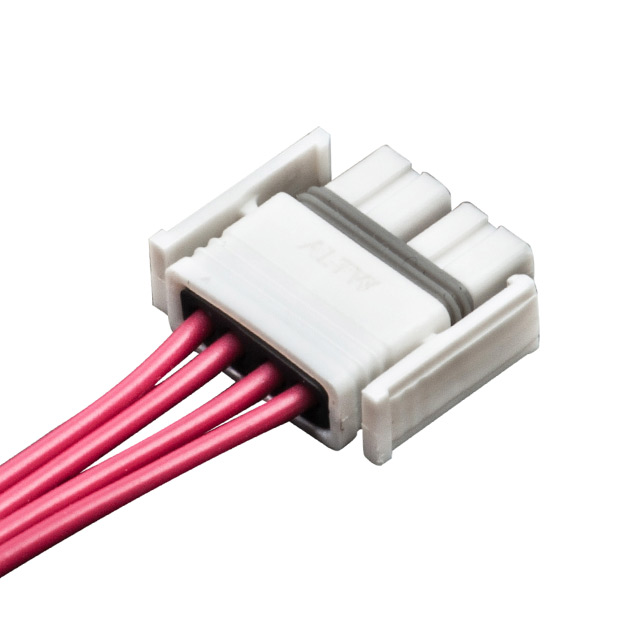

McGill Microwave Systems SSL12-P4LP0-M20A04	Industrial Environments IP68 Latch Lock	Multiple	Wire Leads	4	4 Position Plug	15.7 in

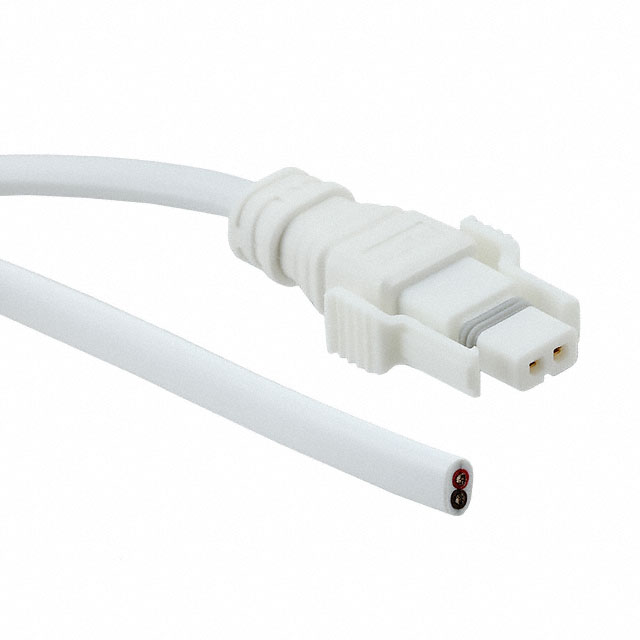

McGill Microwave Systems SSL12-P2LP0-M20F01	Industrial Environments IP68 Latch Lock	White	Wire Leads	2	2 Position Plug	39.4 in
