285101 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

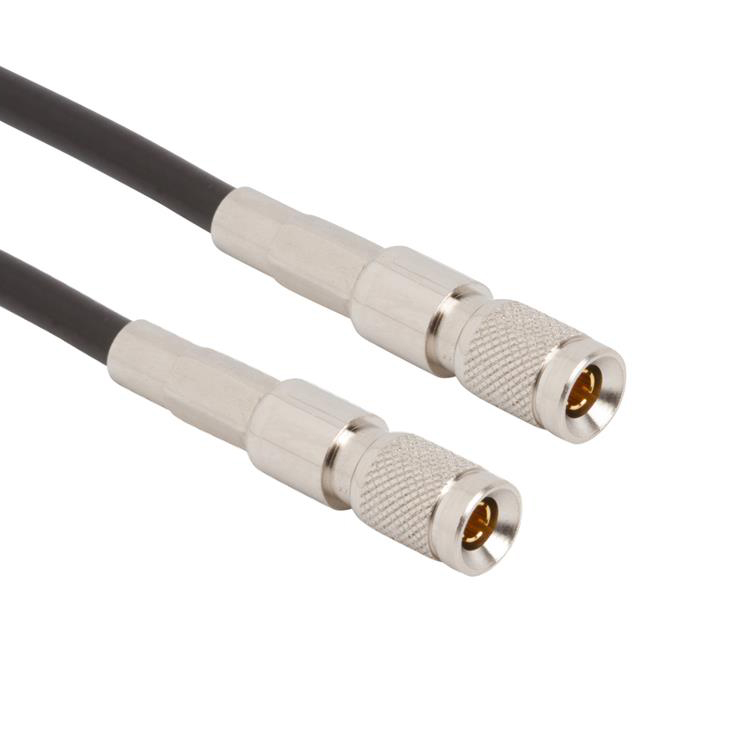

1.0-2.3 STRAIGHT PLUG TO 1.0-2.3 STRAIGHT PLUG B8218 75 OHM 6 INCHES (152 MM)
| Part | 1st Connector Mounting Type | 1st Connector Dimension (1) | 1st Connector Type | 1st Connector - Type | 1st Connector | 1st Connector Size (Dimension 2) | 1st Connector Size (Dimension 1) | 1st Connector Dimension (2) | Style | 2nd Contact Gender | Cable Type | Cable Type Size | Length | Overall Impedance | Color | 2nd Connector Mounting Type | 1st Contact Gender | 2nd Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Free Hanging (In-Line) | 1 mm | Plug | Plug | 1.0/2.3 Plug | 2.3 mm 2.3 | 1 mm 1 | 2.3 mm | 1.0/2.3 to 1.0/2.3 | Male | Belden | 8218 | 0.5 ft | 75 Ohms | Black | Free Hanging (In-Line) | Male | 1.0/2.3 Plug |
McGill Microwave Systems | Free Hanging (In-Line) | 1 mm | Plug | Plug | 1.0/2.3 Plug | 2.3 mm 2.3 | 1 mm 1 | 2.3 mm | 1.0/2.3 to 1.0/2.3 | Male | Belden | 8218 | 36 in | 75 Ohms | Black | Free Hanging (In-Line) | Male | 1.0/2.3 Plug |
