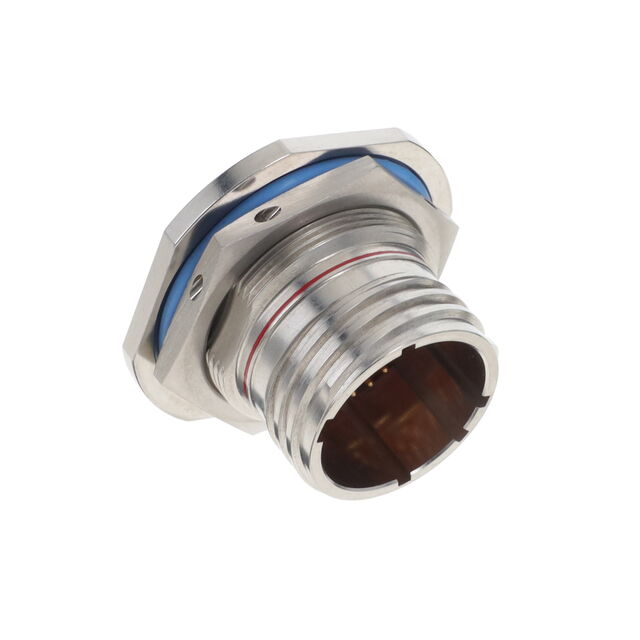

D38999/23YD Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
HERMETIC CIRCULAR MIL-SPEC CONNE
| Part | Fastening Type | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) | Connector Type | Applications | Mounting Type | Termination | Mounting Feature | Orientation | Number of Positions | Shell Size (MIL) | Contact Finish - Mating | Color | Shielding | Shell Material | Contact Material | Features | Shell Finish | Primary Material | Operating Temperature (Max) | Operating Temperature (Min) | Qualification | Grade | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | Threaded | 35 | 15 | Male Pins Receptacle | Aerospace Aviation Marine Military | Panel Mount | Solder Cup | Bulkhead Front Side Nut | A | 37 pos | D | Gold | Silver | Unshielded | ||||||||||
Amphenol Aerospace Operations | Threaded | 35 | 15 | Male Pins Receptacle | Aerospace Aviation Marine Military | Panel Mount | Solder Cup | Bulkhead Front Side Nut | A | 37 pos | D | Gold | Silver | Unshielded | Stainless Steel | Copper Alloy | Hermetically Sealed | Passivated | Metal | 200 °C | -65 °C | MIL-DTL-38999 Series III | Military | 50 µin |
