66024 Series

Catalog

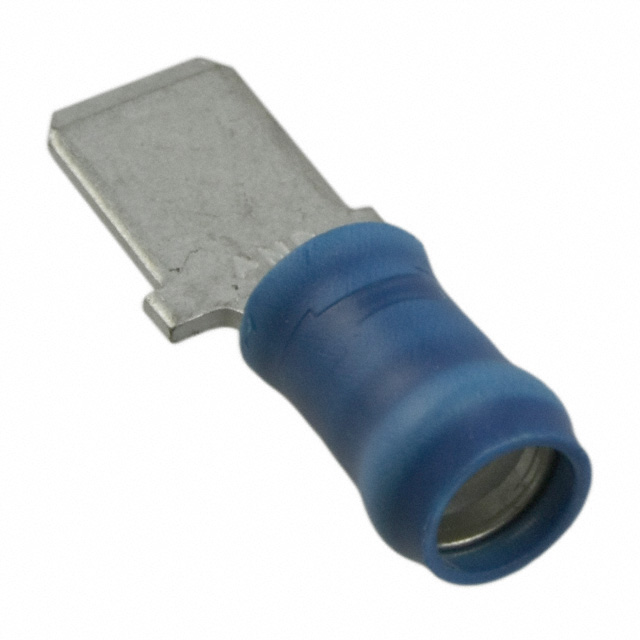

QUICK DISCONNECT TERMINAL, PIDG FASTON SERIES, MALE QUICK DISCONNECT, 6.35MM X 0.81MM

Part	Tab Thickness	Color	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish	Gender	Termination	Terminal Type	Insulation	Tab Width	Mounting Type	Contact Material	Length - Overall	Insulation Diameter (Max)	Insulation Diameter (Min)
TE Connectivity AMP Connectors 66024-2	0.032 in	Blue	16 AWG	14 AWG	Tin	Male	Crimp	Standard	Non-Mating End Insulated	0.25 in	Free Hanging (In-Line)	Copper	0.991 in	0.17 in	0.115 in
TE Connectivity AMP Connectors 66024-6	0.032 in	Blue	16 AWG	14 AWG	Tin	Male	Crimp	Standard	Non-Mating End Insulated	0.25 in	Free Hanging (In-Line)	Copper	0.991 in	0.17 in	0.115 in

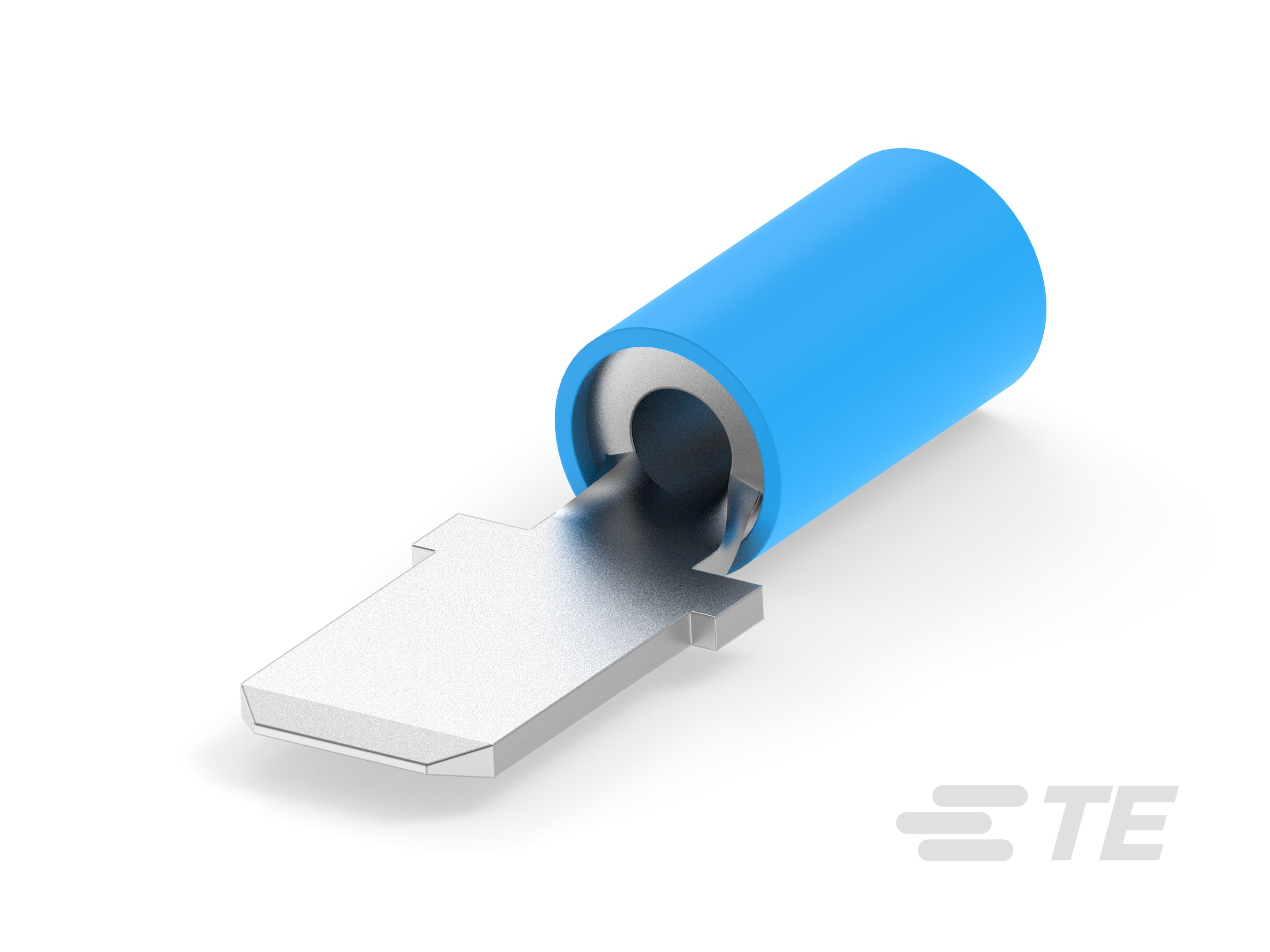

TE Connectivity AMP Connectors 66024-4	0.032 in	Blue	16 AWG	14 AWG	Tin	Male	Crimp	Standard	Non-Mating End Insulated	0.25 in	Free Hanging (In-Line)	Copper	0.991 in	0.17 in	0.115 in
