RT0W71626 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

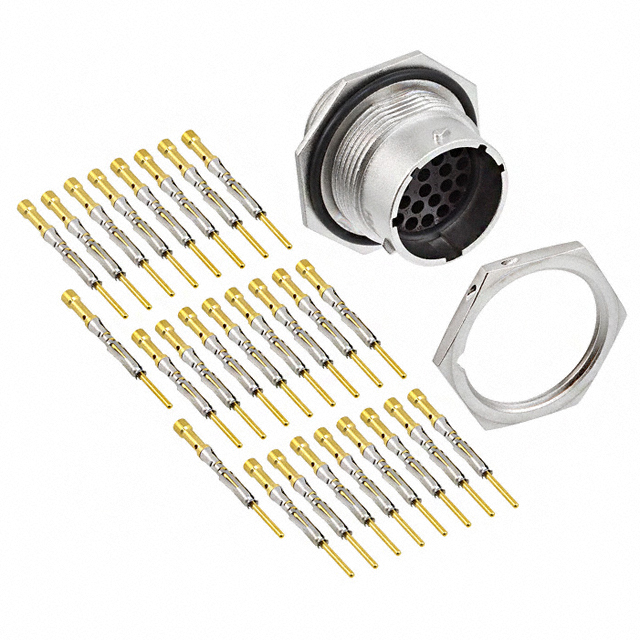

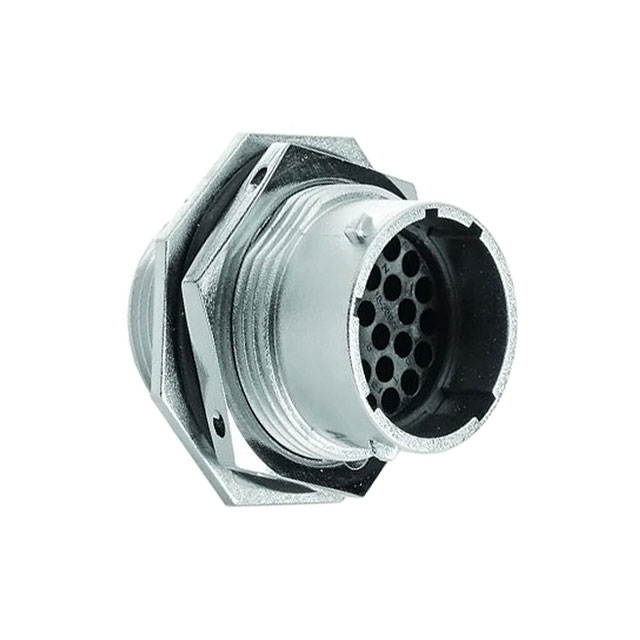

26 POSITION JAM NUT RECEPTACLE, MALE, SHELL SIZE 16, SILICONE SEAL, AND END CAP WITH INDIVIDUAL WIRE SEALING /BAG ROHS COMPLIANT
| Part | Shell Material | Mounting Type | Contact Shape | Connector Type | Shell Finish | Type | Number of Positions | Note | Insert Material | Ingress Protection Description | Ingress Protection IP Rating | Contact Type | Mounting Feature | Shielding | Shell Size - Insert (Minimum) | Shell Size - Insert (Maximum) | Fastening Type | Orientation | Material Flammability Rating | Housing Color | Contact Size | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish - Mating | Termination | Current Rating | Primary Material | Contact Finish Thickness - Mating | Color | Voltage Rating | Voltage Rating (Type) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | |||||||||||||||||||||||||||||||
 McGill Microwave Systems | Zinc Alloy | Panel Mount | Circular | Receptacle Housing | Nickel | For Male Pins | 26 | Contacts Not Included | Thermoplastic | Dust Tight Waterproof | IP67 | Crimp | Bulkhead Front Side Nut | Shielded | 16 S | 26 | Bayonet Lock | N (Normal) | UL94 V-0 | Silver | 20 | -40 °C | 105 °C | ||||||||
 McGill Microwave Systems | Zinc Die Cast | Panel Mount | Male Pins Receptacle | Nickel | 26 | Dust Tight Waterproof | IP67 | Bulkhead Front Side Nut | 16 S | 26 | Bayonet Lock | N (Normal) | -40 °C | 105 °C | Gold | Crimp | 7.5 A | Metal | Flash | Silver | 150 VDC | DC | |||||||||
 McGill Microwave Systems | Zinc Alloy | Panel Mount | Circular | Receptacle Housing | Nickel | For Female Sockets | 26 | Contacts Not Included | Thermoplastic | Dust Tight Waterproof | IP67 | Crimp | Bulkhead Front Side Nut | Shielded | 16 S | 26 | Bayonet Lock | N (Normal) | UL94 V-0 | Silver | 20 | -40 °C | 105 °C |
