RT06128 Series

Catalog

CONN PLUG FMALE 8POS GOLD CRIMP

Part	Current Rating	Shell Material	Ingress Protection IP Rating	Ingress Protection Description	Termination	Shell Finish	Features	Shell Size - Insert Length	Shell Size - Insert Width	Contact Material	Orientation	Operating Temperature (Min)	Operating Temperature (Max)	Applications	Color	Mounting Type	Contact Finish - Mating	Connector Type	Plating	Backshell Material	Voltage Rating	Material Flammability Rating	Insert Material	Fastening Type	Shielding	Primary Material	Contact Finish Thickness - Mating	Number of Positions	Cable Opening (Max)	Cable Opening (Min)	Contact Size	Note	Contact Type	Type	Contact Shape	Housing Color	Voltage Rating (Type)

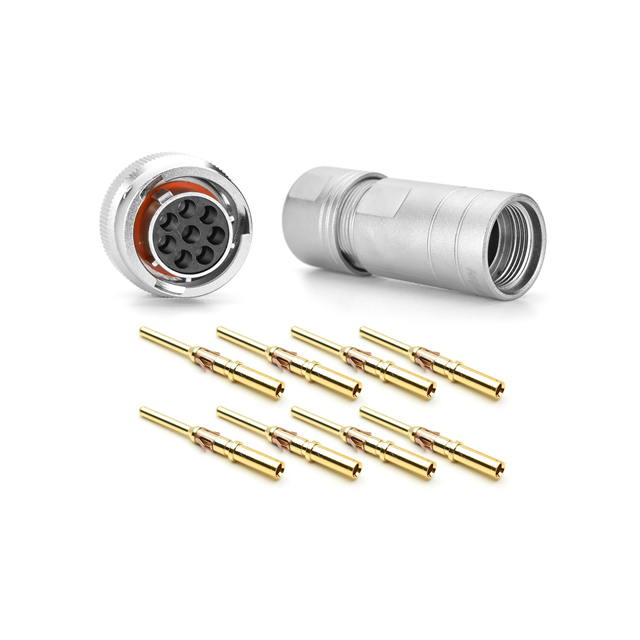

McGill Microwave Systems RT06128SNH03SS-K	13 A	Zinc Die Cast	IP67 IP69K	Dust Tight Water Resistant Waterproof	Crimp	Nickel	Backshell Coupling Nut	12 mm	8 mm	Brass	N (Normal)	-40 °C	105 °C	Aerospace Automation Industrial Telecom Transportation	Silver	Free Hanging (In-Line)	Gold	Female Sockets Plug	Nickel	Zinc Die Cast	250 V	UL94 V-0	Nylon 6/6 PA66 Polyamide	Bayonet Lock	Shielded	Metal	Flash	8	0.394 in	0.256 in

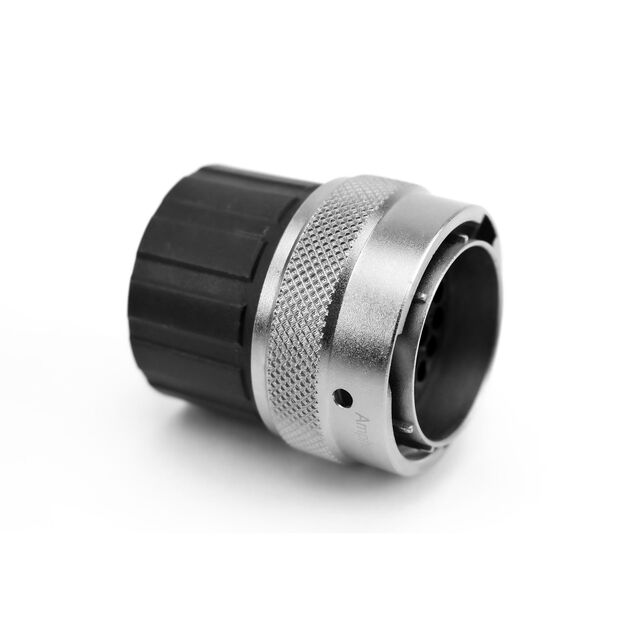

McGill Microwave Systems RT06128SNHEC03		Zinc Alloy	IP67	Dust Tight Waterproof		Nickel	Coupling Nut	12 mm	8 mm		N (Normal)	-40 °C	125 °C			Free Hanging (In-Line)		Plug Housing				UL94 V-0	Thermoplastic	Bayonet Lock	Shielded	Metal		8			16 S	Contacts Not Included	Crimp	For Female Sockets	Circular	Silver
McGill Microwave Systems RT06128PNH-K	13 A	Zinc Die Cast	IP67	Dust Tight Waterproof	Crimp	Nickel		12 mm	8 mm		N (Normal)	-40 °C	105 °C		Silver	Free Hanging (In-Line)	Gold	Male Pins Plug			250 V			Bayonet Lock		Metal	Flash	8									DC

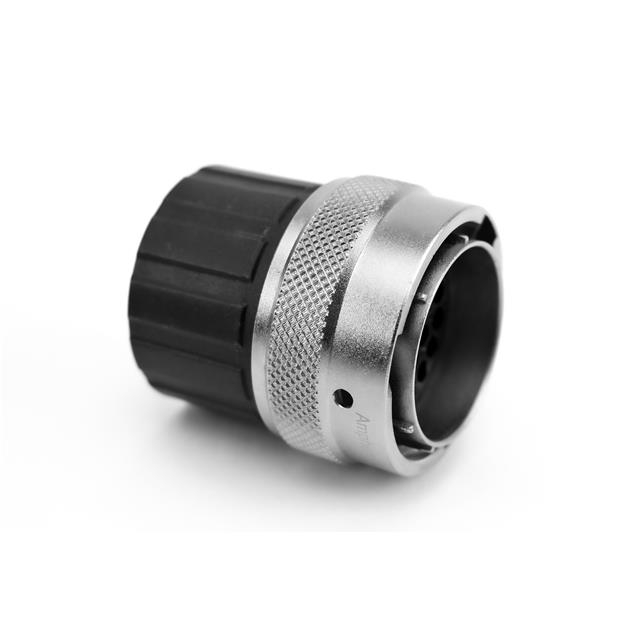

McGill Microwave Systems RT06128PNHEC03R		Zinc Alloy	IP67	Dust Tight Waterproof		Nickel	Backshell Coupling Nut	12 mm	8 mm		N (Normal)	-40 °C	125 °C			Free Hanging (In-Line)		Plug Housing				UL94 V-0	Thermoplastic	Bayonet Lock	Shielded			8			16 S	Contacts Not Included	Crimp	For Male Pins	Circular	Silver

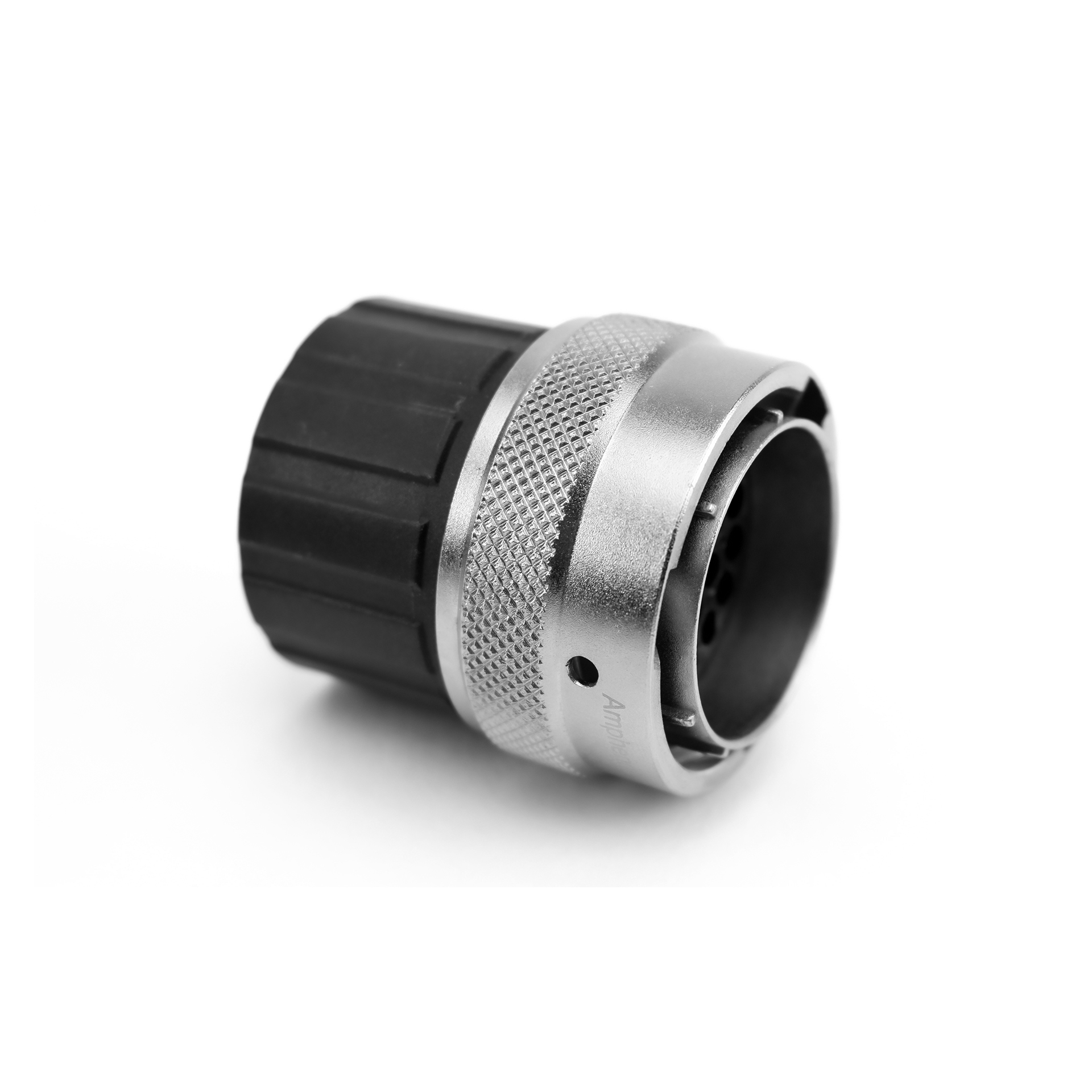

McGill Microwave Systems RT06128PNHEC03		Zinc Alloy	IP67	Dust Tight Waterproof		Nickel	Coupling Nut	12 mm	8 mm		N (Normal)	-40 °C	125 °C			Free Hanging (In-Line)		Plug Housing				UL94 V-0	Thermoplastic	Bayonet Lock	Shielded	Metal		8			16 S	Contacts Not Included	Crimp	For Male Pins	Circular	Silver
McGill Microwave Systems RT06128SNH		Zinc Alloy	IP67	Dust Tight Waterproof		Nickel	Coupling Nut	12 mm	8 mm		N (Normal)	-40 °C	105 °C			Free Hanging (In-Line)		Plug Housing				UL94 V-0	Thermoplastic	Bayonet Lock	Shielded			8			16 S	Contacts Not Included	Crimp	For Female Sockets	Circular	Silver
McGill Microwave Systems RT06128PNH03SS-K	13 A	Zinc Die Cast	IP67 IP69K	Dust Tight Water Resistant Waterproof	Crimp	Nickel	Backshell Coupling Nut	12 mm	8 mm	Brass	N (Normal)	-40 °C	105 °C	Aerospace Automation Industrial Telecom Transportation	Silver	Free Hanging (In-Line)	Gold	Male Pins Plug	Nickel	Zinc Die Cast	250 V	UL94 V-0	Nylon 6/6 PA66 Polyamide	Bayonet Lock	Shielded	Metal	Flash	8	0.394 in	0.256 in
McGill Microwave Systems RT06128SNHEC03R		Zinc Alloy	IP67	Dust Tight Waterproof		Nickel	Backshell Coupling Nut	12 mm	8 mm		N (Normal)	-40 °C	125 °C			Free Hanging (In-Line)		Plug Housing				UL94 V-0	Thermoplastic	Bayonet Lock	Shielded			8			16 S	Contacts Not Included	Crimp	For Female Sockets	Circular	Silver

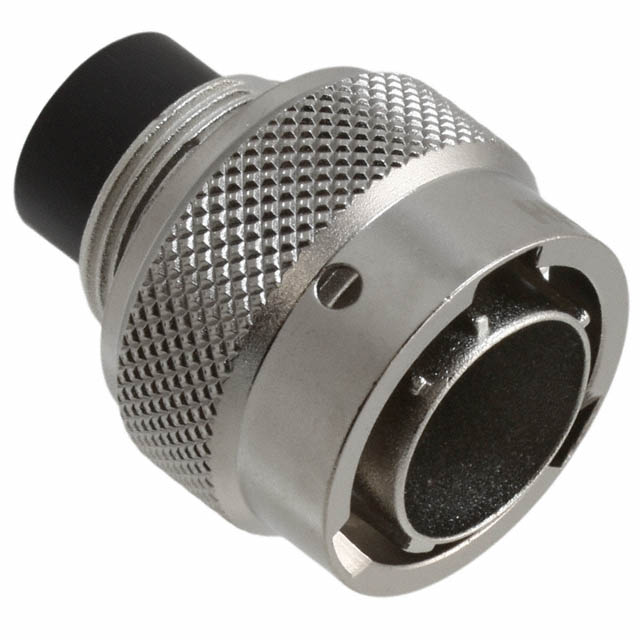

McGill Microwave Systems RT06128PNH		Zinc Alloy	IP67	Dust Tight Waterproof		Nickel	Coupling Nut	12 mm	8 mm		N (Normal)	-40 °C	105 °C			Free Hanging (In-Line)		Plug Housing				UL94 V-0	Thermoplastic	Bayonet Lock	Shielded			8			16 S	Contacts Not Included	Crimp	For Male Pins	Circular	Silver
McGill Microwave Systems RT06128PNHECR		Zinc Alloy	IP67	Dust Tight Waterproof		Nickel	Coupling Nut	12 mm	8 mm		N (Normal)	-40 °C	105 °C			Free Hanging (In-Line)		Plug Housing				UL94 V-0	Thermoplastic	Bayonet Lock	Shielded	Metal		28			16 S	Contacts Not Included	Crimp	For Male Pins	Circular	Silver
