50840 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

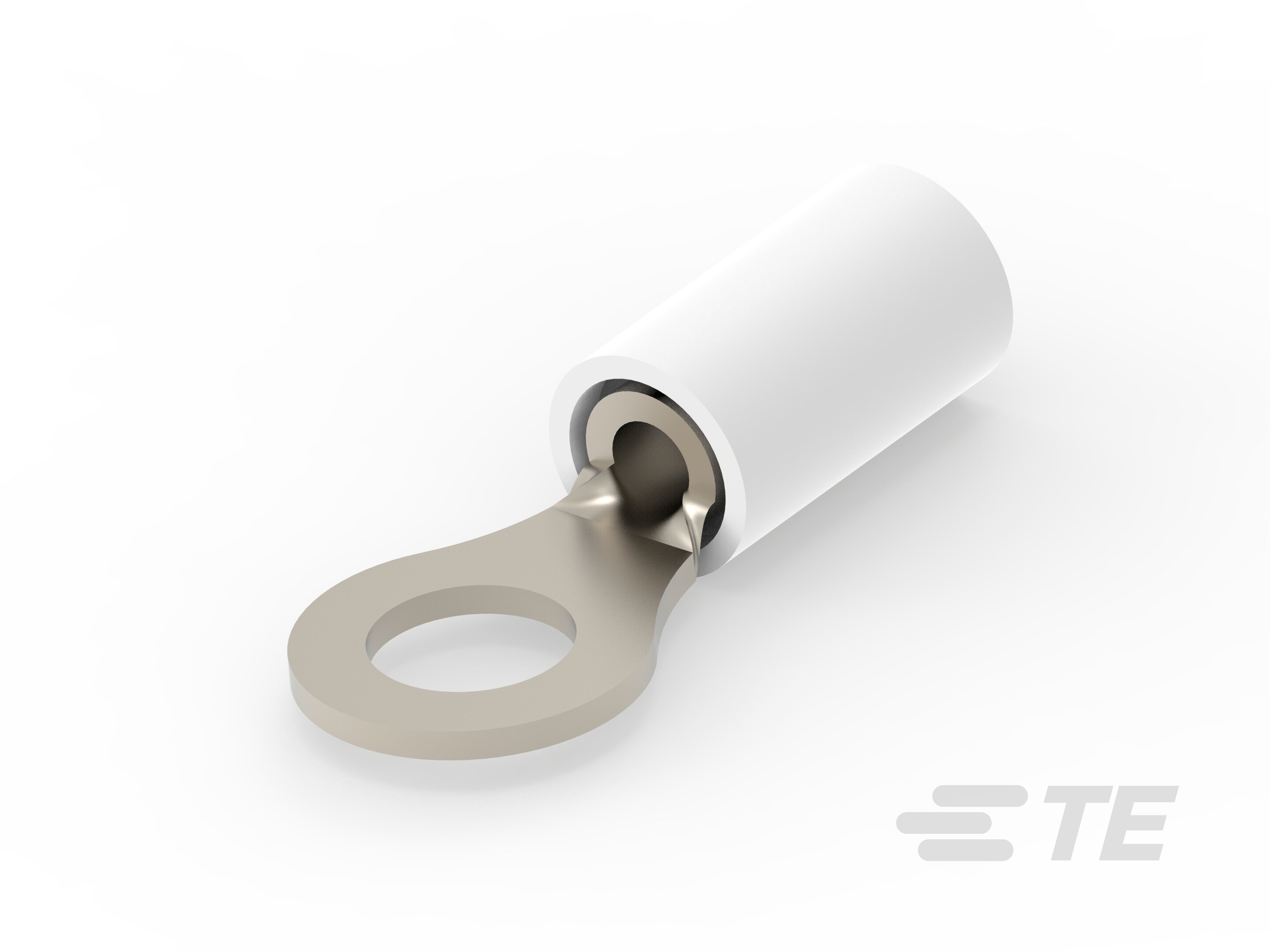

CONN RING CIRC 14AWG #10 CRIMP
| Part | Length - Overall | Termination | Mounting Type | Stud/Tab Size | Wire Gauge | Contact Finish | Contact Material | Width - Outer Edges | Features | Terminal Type | Insulation | Color | Thickness | Insulation Diameter (Min) | Insulation Diameter (Max) | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.859 in | Crimp | Free Hanging (In-Line) | 10 Stud | 14 AWG | Nickel | Copper | 0.343 in | Serrated Termination | Circular | Insulated | White | 0.031 in | 0.08 in | 0.15 in | Polytetrafluoroethylene PTFE |
