3415 Series

Catalog

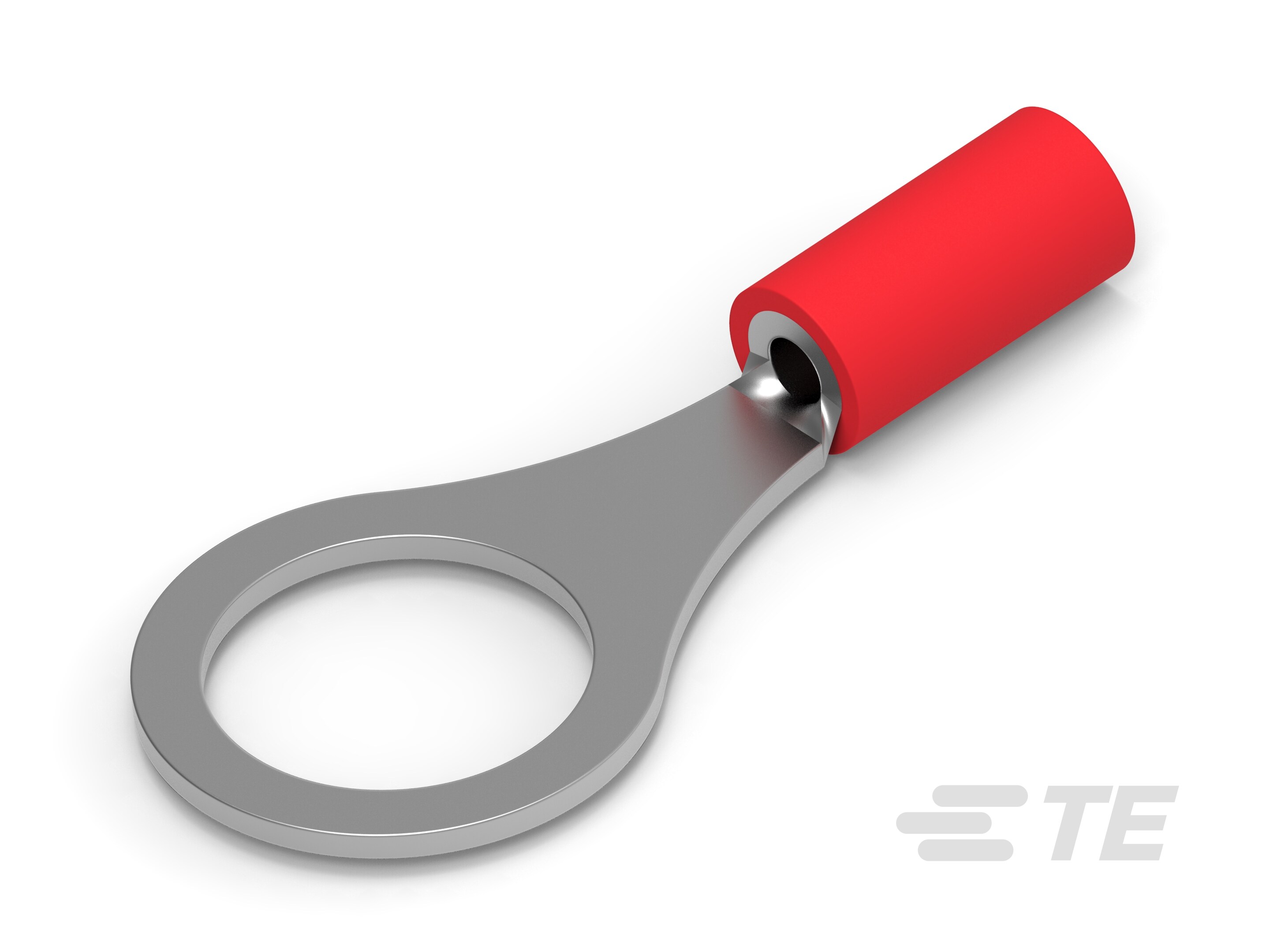

PG R 22-16 COMM 22-18 MIL 3/8

Part	Width - Outer Edges	Length - Overall	Features	Contact Finish	Mounting Type	Contact Material	Termination	Stud/Tab Size	Stud/Tab Size	Thickness	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Color	Terminal Type	Insulation	Insulation Diameter (Min)	Insulation Diameter (Max)	Material - Insulation	Length - Termination	Length - Ring Center to Termination	Tongue Inside Opening
TE Connectivity AMP Connectors 34152	0.531 in	1.23 in	Serrated Termination	Tin	Free Hanging (In-Line)	Copper	Crimp	0.375 in	3 Stud 8 Stud	0.031 in	16 AWG	22 AWG	Red	Circular	Insulated	0.105 in	0.14 in	Poly-Vinyl Chloride PVC
TE Connectivity AMP Connectors 34150	0.469 in	1.09 in		Tin	Free Hanging (In-Line)	Copper	Crimp		M6 M6 Stud	0.031 in	16 AWG	22 AWG	Red	Circular	Insulated
TE Connectivity AMP Connectors 34150	0.469 in	1.09 in	Serrated Termination	Tin	Free Hanging (In-Line)	Copper	Crimp	0.25 Stud		0.031 in	16 AWG	22 AWG	Red	Circular	Insulated	0.105 in	0.14 in	Poly-Vinyl Chloride PVC
TE Connectivity AMP Connectors 34157	0.25 in	0.715 in	Serrated Termination	Tin	Free Hanging (In-Line)	Copper	Crimp	4 Stud		0.031 in	14 AWG	16 AWG	Blue	Circular	Insulated	0.118 in	0.193 in	Poly-Vinyl Chloride PVC
TE Connectivity AMP Connectors 34156	0.375 in	0.92 in	Serrated Termination		Free Hanging (In-Line)	Copper	Crimp	10 Stud			16 AWG	22 AWG	Red	Standard	Insulated	0.105 in	0.14 in	Poly-Vinyl Chloride PVC	0.416 in	0.312 in	0.197 in
